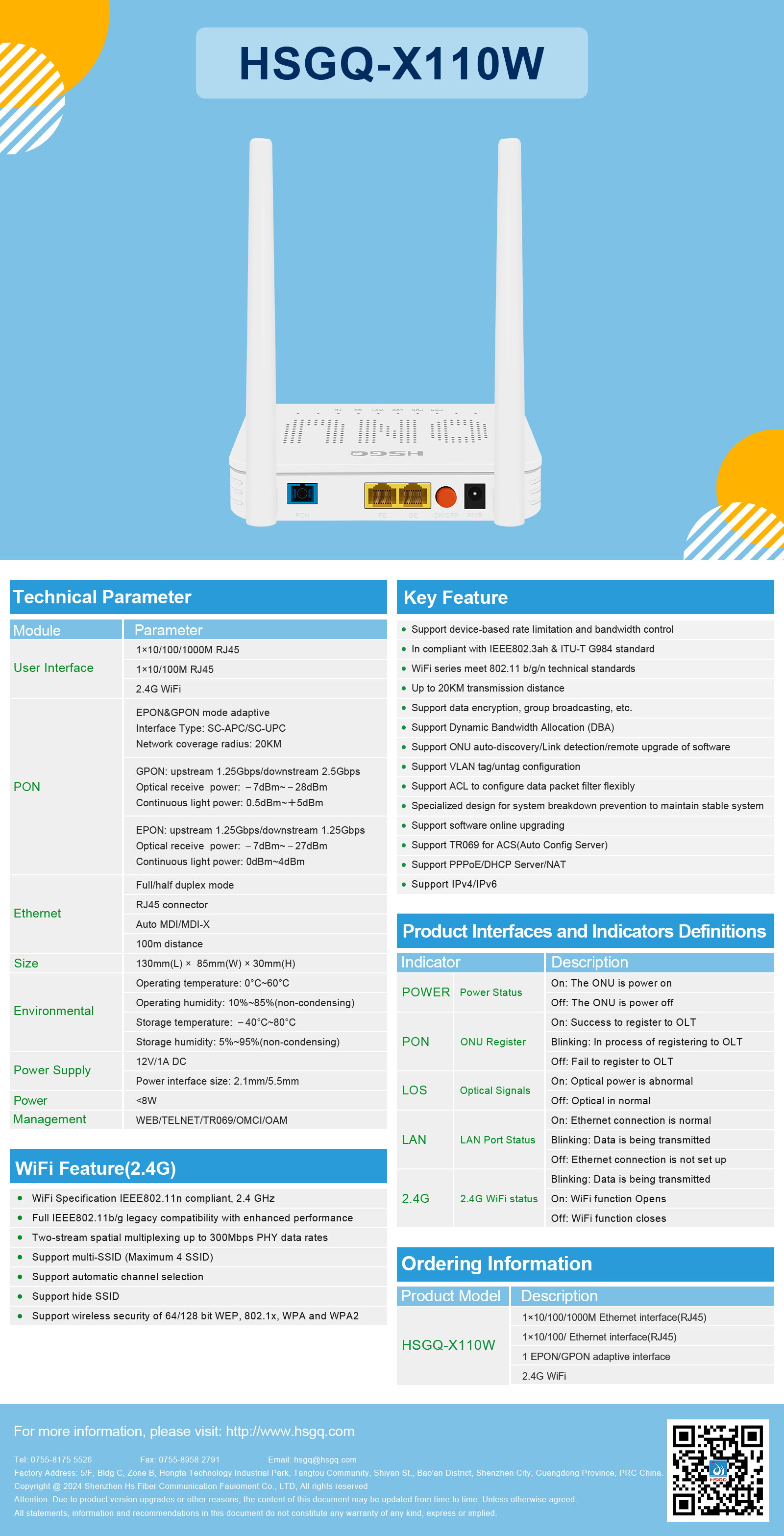

HSGQ-X110W
HSGQ-X110W is a high-performance EPON/GPON adaptive interface device designed for efficient data transmission, encryption, and bandwidth control. It supports IEEE802.3ah and ITU-T G984 standards, ensuring compatibility and reliability.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| User Interface | 1x10/100/1000M RJ45, 1x10/100M RJ45 |
| 2.4G WiFi | IEEE802.11n compliant, 2.4GHz |
| EPON Mode | Upstream 1.25Gbps/downstream 1.25Gbps |
| GPON Mode | Upstream 1.25Gbps/downstream 2.5Gbps |
| Optical Receive Power | -7dBm~-28dBm |
| Continuous Light Power | 0.5dBm~5dBm |
| Ethernet Interface | RJ45 connector |
| Size | 130mm(L)×85mm(W)×30mm(H) |
| Storage Temperature | -40°C~80°C |
| Storage Humidity | 5%~95%(non-condensing) |
| Power Interface | 2.1mm/5.5mm |
| Power Consumption | ≤8W |
| Power Supply | 12V/1A DC |
| WiFi Specification | IEEE802.11n compliant, 2.4GHz |
| Maximum SSID | 4 |
| Supported Encryption Protocols | 64/128 bit WEP, 802.1x, WPA, WPA2 |
| Supported PHY Data Rates | Up to 300Mbps |
| Support Automatic Channel Selection | Yes |
| Support Hide SSID | Yes |
| Support Dynamic Bandwidth Allocation | Yes |
| Support Data Encryption | Yes |
| Support PPPoE/DHCP Server | Yes |
| Support IPv4/IPv6 | Yes |
| Support TR069 Protocol | Yes |
| Support Multicast | Yes |
| Support VLAN Configuration | Yes |
| Support Device Rate Limitation | Yes |
| Support Auto Discovery | Yes |
| Support Remote Upgrade | Yes |
| Support ACL Configuration | Yes |
| Support Broadcasting | Yes |
| Support Full Duplex Mode | Yes |
| Network Coverage Radius | 20KM |
| Transmission Distance | 20KM |
| Optical Interface Type | SC-APC/SC-UPC |
| Power Management | WEB/TELNET/TR069/OMCI/OAM |
| Indicator Definitions | Power, PON, LOS, LAN, 2.4G |
