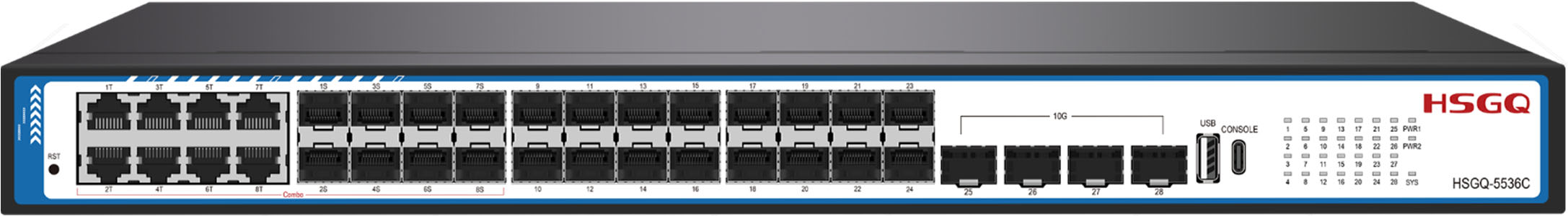

HSGQ-5536C
HSGQ-5536C is an L3 managed switch with 16*Gigabit SFP fiber optic module slots, 8*Gigabit Combo(8*GE/8*SFP), 4*SFP+ 10 Gigabit fiber optic module slots, and 1*Type-C console management interface. It supports IPv4/IPv6 dual-stack, static routing, DHCP Server, DHCP Relay, and DHCP Snooping. It supports Layer 3 routing protocols, including RIP, RIPng, OSPF, OSPFv3 dynamic routing, and VRRP virtual routing redundancy protocols. It provides comprehensive security policies, robust QoS policies, and rich VLAN functionality, making it easy to manage and maintain, and meeting the networking access needs of enterprises, residential communities, hotels, office networks, and campus networks.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Network Standards | IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3ae, IEEE802.3x, IEEE802.1x, IEEE802.1q, IEEE802.1p, IEEE802.1d, IEEE802.1s, IEEE802.3ad, IEEE802.1ab |
| Interface | 16*SFP Fiber Optic Module Slots, 8*Combo(8*GE/8*SFP), 4*SFP+ 10 Gigabit Fiber Optic Module Slots, 1*Type-C Console interface (115200,8,N,1), 1*USB2.0 interface |
| LED Indicator Light | PWR 1 (green), PWR 2 (green), SYS (green), Port LED (green) |
| Network Media (Cables) | 100BASE-TX: Cat 5, 5e and above unshielded twisted pair cable (≤100m), 1000BASE-T: Cat 5e, 6 and above unshielded twisted pair cable (≤100m), 1000BASE-X: MMF, SMF Modules, 10GBASE-X: MMF, SMF Modules, 10GBASE-SR: OM1/OM2/OM3 or higher MMF (2m~300m), 10GBASE-LR: IEC B1.1 and B1.3 SMF (2m~10000m) |
| MAC Address Table | 16K |
| Jumbo Frame | 12K Byte |
| Packet Buffer | 12Mbit |
| Forwarding Mode | Store-and-forward |
| Switching Capacity | 128Gbps |
| Packet Forwarding Rate | 96Mpps |
| Power Supply | 96W |
| Power Input | Standard configuration includes 1*AC100-240V power supply, Optional AC+DC (12V/48V) dual power supply, Optional AC+AC dual power supply |
| Fan | 2 |
| Dimensions (L*W*H) | 440x261x44mm |
| Static Electricity Standards | Contact ±6KV, air ±8KV |
| Surge Levels | Common mode ±6KV |
| Operating Temperature | -10°C~50°C |
| Storage Temperature | -40°C~85°C |
| Operating Humidity | 10%~90% Non-condensing |
| Storage Humidity | 5%~90% Non-condensing |
| Mean Time Between Failures | 50,000 hours |
