QSFP28-100G-10LR

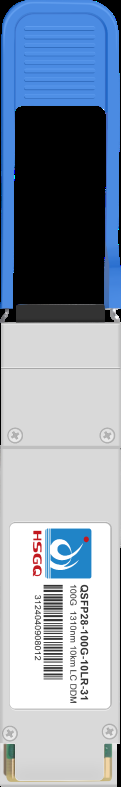

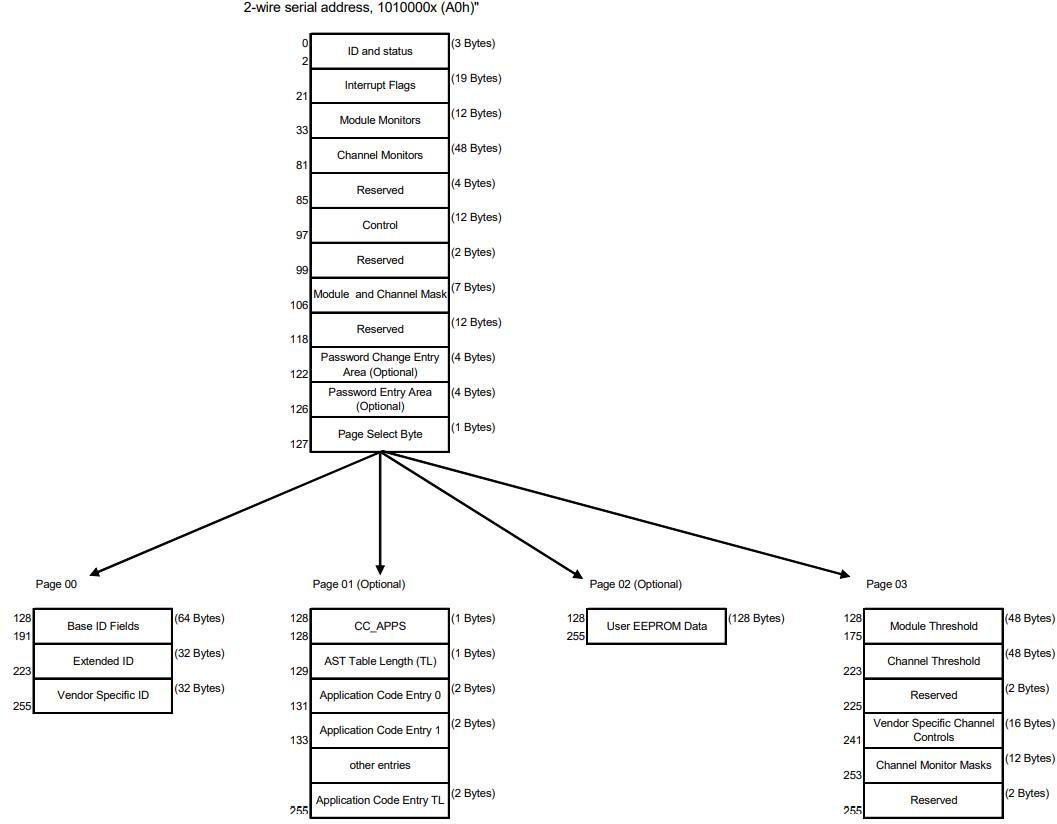

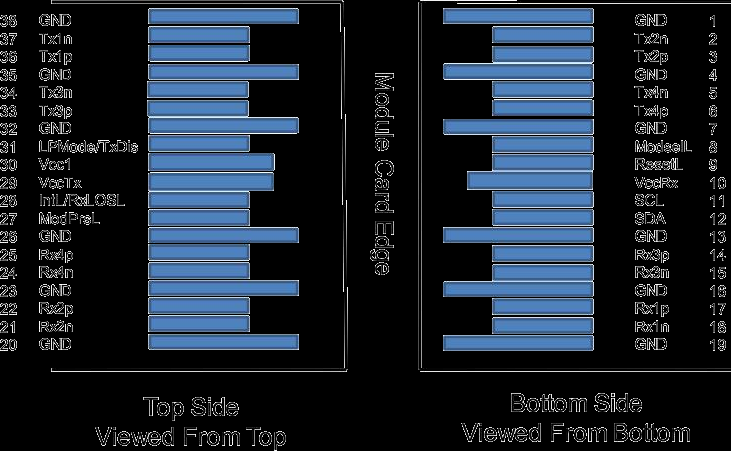

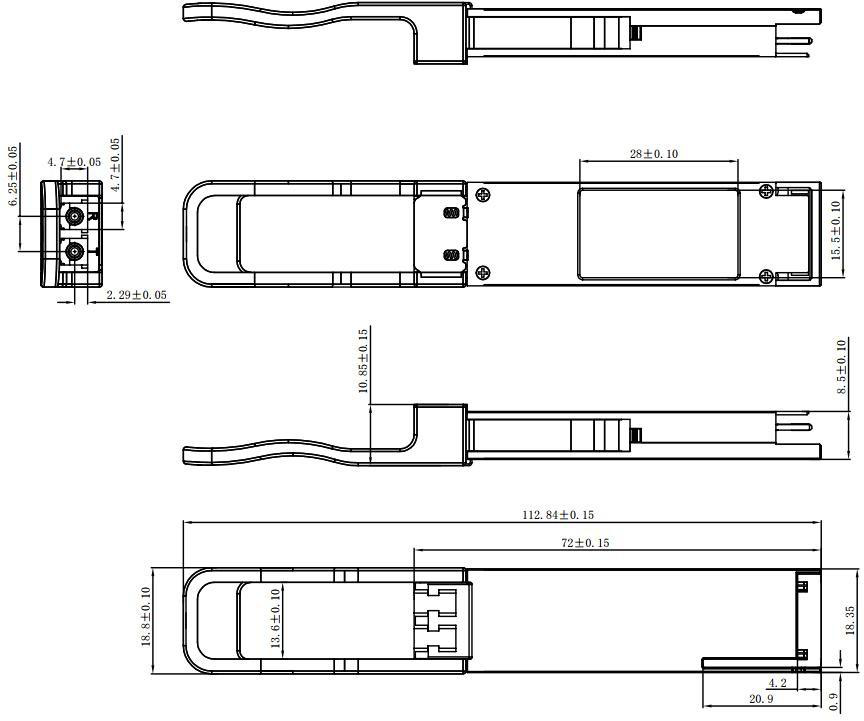

The HSQG QSFP28-100G-10LR transceiver is designed for 10km optical communication applications. It contains a 4-lane optical transmitter, 4-lane optical receiver, and module management block including a 2-wire serial interface. The optical signals are multiplexed to a single-mode fiber through an industry-standard LC connector.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Storage Temperature | -40~85°C |
| Maximum Supply Voltage | -0.5~3.6V |
| Operating Relative Humidity | ≤85% |
| Operating Case Temperature | 0~+70°C |
| Power Supply Voltage | 3.13~3.47V |
| Power Supply Current | 1.21A |
| Maximum Power Dissipation | 4W |
| Aggregate Bit Rate | 103.125Gb/s |
| Lane Bit Rate | 25.78125Gb/s |
| Transmission Distance | 10km |
| Coupled Fiber | Single mode fiber |
| Signaling Speed per Lane | 25.78125Gbps |
| Center Wavelength Lane 0 | 1294.53~1296.59nm |
| Center Wavelength Lane 1 | 1299.02~1301.09nm |
| Center Wavelength Lane 2 | 1303.54~1305.63nm |
| Center Wavelength Lane 3 | 1308.09~1310.19nm |
| Total Average Launch Power | ≤10.5dBm |
| Average Launch Power per Lane | -4.3~4.5dBm |
| OMA, each Lane | -1.3~4.5dBm |
| Difference in Launch Power between any Two Lanes | ≤3dB |
| Average Output Power (Laser Turn Off) | ≤-30dBm |
| Side Mode Suppression Ratio | ≥30dB |
| Extinction Ratio | ≥4dB |
| RIN | ≤-130dB/Hz |
| Optical Return Loss Tolerance | ≥12dB |
| Transmitter Reflectance | ≤-12dB |
| Optical Eye Mask | (0.25,0.4,0.45,0.25,0.28,0.4)% |
| Signaling Rate, each Lane | 25.78125Gbps |
| Average Receive Power, each Lane | -10.6~4.5dBm |
| Receiver Sensitivity (OMA) per Lane | ≤-8.6dBm |
| Los Assert | ≤-30dBm |
| Los De-assert | ≤-12dBm |
| Los Hysteresis | 0.5dB |
| Data Rate, each Lane (Transmitter) | 25.78125Gbps |
| Differential Voltage pk-pk | 900mV |
| Common Mode Voltage | -350~2850mV |
| Transition Time | ≤10ps |
| Data Rate, each Lane (Receiver) | 25.78125Gbps |
| Common Mode Noise, RMS | ≤17.5mV |
| Differential Output Voltage Swing | ≤900mV |
| Eye Width | ≥0.57UI |
| Eye Height | ≥228mV |
| Differential Termination Resistance Mismatch | ≤10% |
| Transition Time (Receiver) | ≤12ps |
| Temperature | -40~85°C |
| Voltage | 3.0~3.6V |
| Bias Current | 30~100mA |
| TX Power | -4.3~4.5dB |
| RX Power | -10.6~4.5dB |
