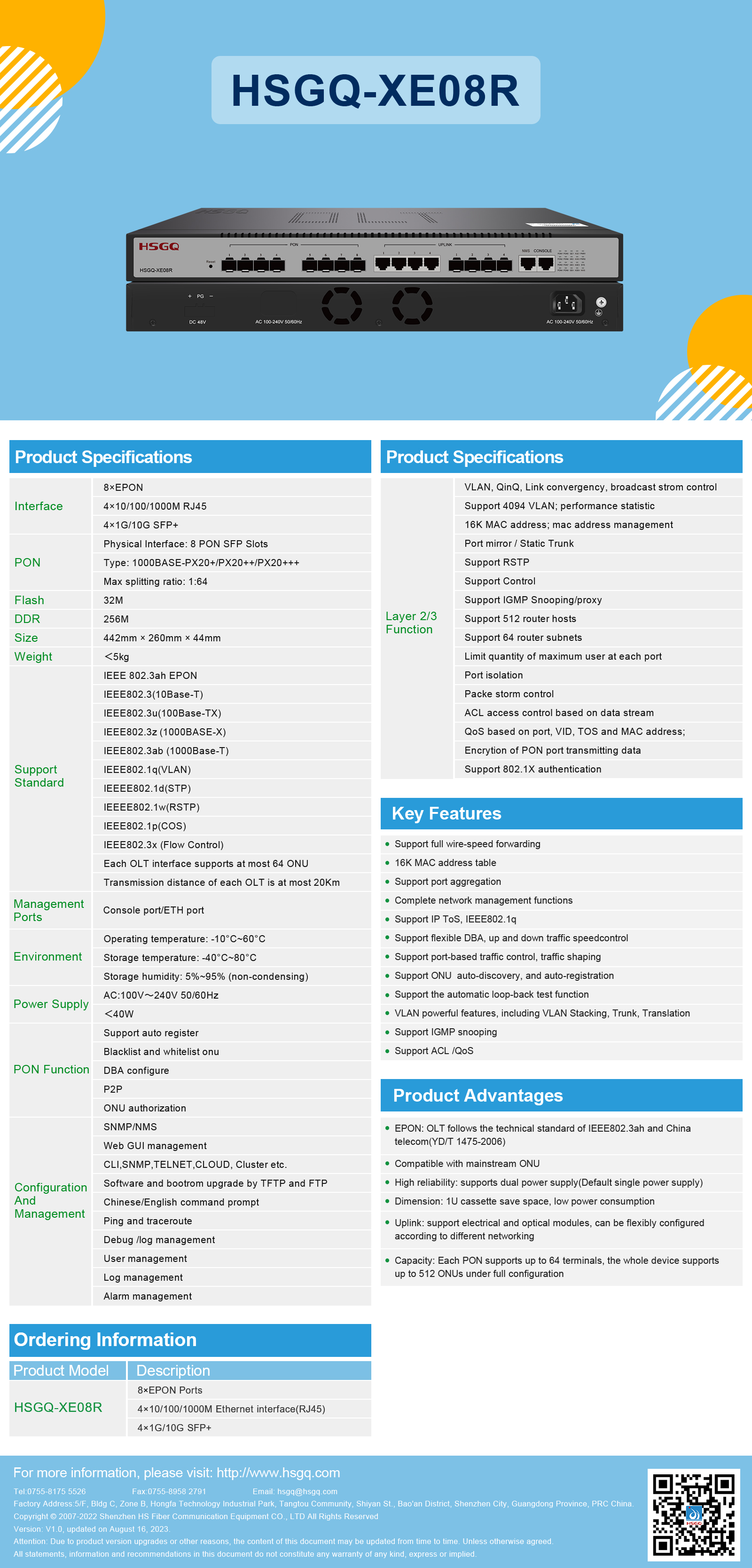

HSGQ-XE08R
HSGQ-XE08R is an advanced EPON OLT device designed for high-speed data transmission and efficient network management, supporting up to 512 ONUs with flexible configuration options.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Interface | 8×EPON, 4×10/100/1000M RJ45, 4×1G/10G SFP+ |
| PON Type | 1000BASE-PX20+/PX20++/PX20+++ |
| Max Splitting Ratio | 1:64 |
| Flash | 32M |
| DDR | 256M |
| Size | 442mm×260mm×44mm |
| Weight | <5kg |
| Support Standard | IEEE802.3ah EPON, IEEE802.3i(10Base-T), IEEE802.3u(100Base-TX), IEEE802.3ab(1000Base-T), IEEE802.3z(1000Base-X), IEEE802.1q(VLAN), IEEE802.1d(STP), IEEE802.1w(RSTP), IEEE802.1p(COS), IEEE802.3x(Flow Control) |
| Management Ports | Console port/ETH port |
| Operating Temperature | -10°C~60°C |
| Storage Temperature | -40°C~80°C |
| Storage Humidity | 5%~95% (non-condensing) |
| Power Supply | AC:100V~240V 50/60Hz, DC:48V |
| Power Consumption | <40W |
| Supported ONU Quantity | Each OLT interface supports at most 64 ONU |
| Transmission Distance | 20km |
| PON Function | DBA configure, P2P, ONU authorization |
| Configuration and Management | SNMP/NMS, Web GUI management, CLI, SNMP, TELNET, CLOUD, Cluster etc., Software and bootrom upgrade by TFTP and FTP, Chinese/English command prompt, Ping and traceroute, Debug/log management, User management, Log management, Alarm management |
| VLAN Function | VLAN, QinQ, Link convergence, broadcast storm control, Support 4094 VLAN; performance statistic |
| MAC Address Management | 16K MAC address; mac address management |
| Port Function | Port mirror/Static Trunk, Port isolation, Packet storm control |
| Routing Function | Support 512 router hosts, Support 64 router subnets, Limit quantity of maximum user at each port |
| Security Function | ACL access control based on data stream, QoS based on port, VID, TOS and MAC address, Encryption of PON port transmitting data, Support 802.1X authentication |
