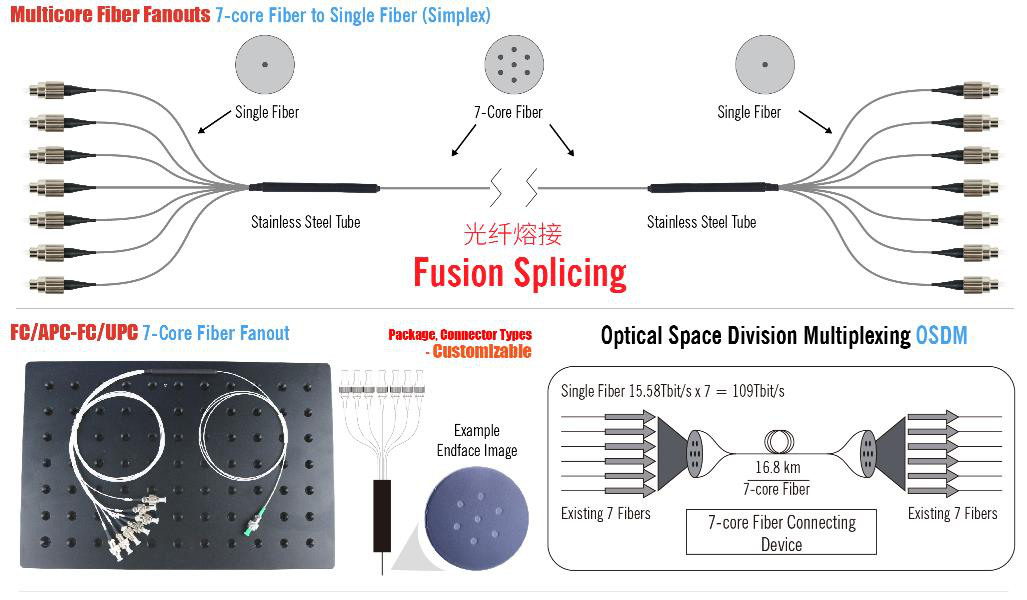

Multicore Fiber Fanouts Module
The Multicore Fiber Fanouts Module is a key component for efficient connection between multicore fibers and standard single-mode fibers. This product adopts customized module design and manufacturing, featuring low insertion loss, low crosstalk, high return loss, and high reliability. It provides standard-compliant products and customized services, widely used in communication, optical interconnection, and optical sensing fields.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Multicore Fiber Type 4-core | SM-4C1500 (8.0/125) |
| Multicore Fiber Type 7-core | SM-7C1500 (6.1/125) |
| Operating Wavelength (nm) 4-core | 1520~1650nm |
| Operating Wavelength (nm) 7-core | 1520~1650nm |
| Cutoff Wavelength (nm) 4-core | 1300~1500nm |
| Cutoff Wavelength (nm) 7-core | 1300~1500nm |
| Numerical Aperture (NA) 4-core | 0.14~0.17 |
| Numerical Aperture (NA) 7-core | 0.2~0.22 |
| Mode Field Diameter (μm) 4-core | 7.4~8.5@1550nm |
| Mode Field Diameter (μm) 7-core | 7.6~8.5@1550nm |
| Core Diameter (μm) | 50μm |
| Insertion Loss @1550nm (dB) 4-core | 1.0 (typical)dB |
| Insertion Loss @1550nm (dB) 7-core | 1.0 (typical)dB |
| Channel Crosstalk (dB) | ＞45dB |

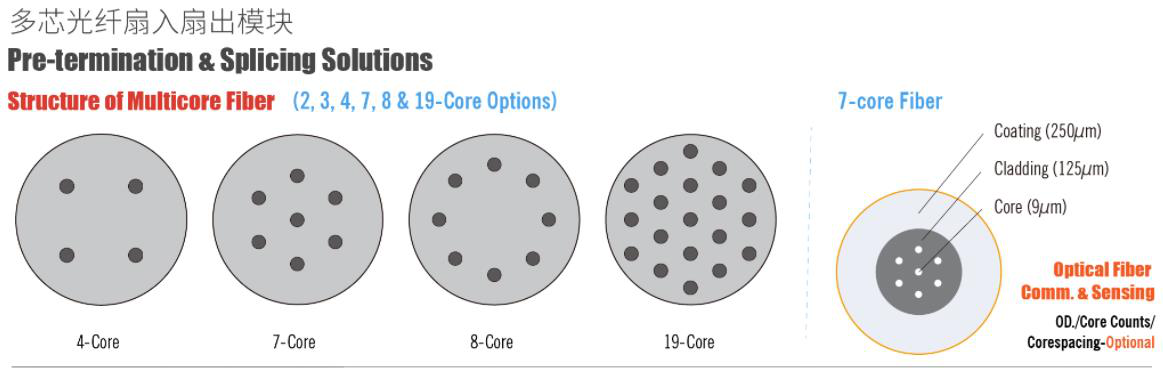

| Core Structure 4-core | Square |
| Core Structure 7-core | Hexagonal (including central core) |
| Single Mode Fiber Type | Corning SMF28 Ultra fiber |
| Multicore Fiber Length (m) | 1±0.05m |
| Single Mode Fiber Length (m) | 1±0.05m |
| Pigtail Type | 0.9mm Hytrel (black), multicore fiber (black), single-mode fiber (white) |
| Package Dimensions (mm) | 60×7×4 |
| Connector Endface Polishing Type | PC/UPC/APC (customizable) |
