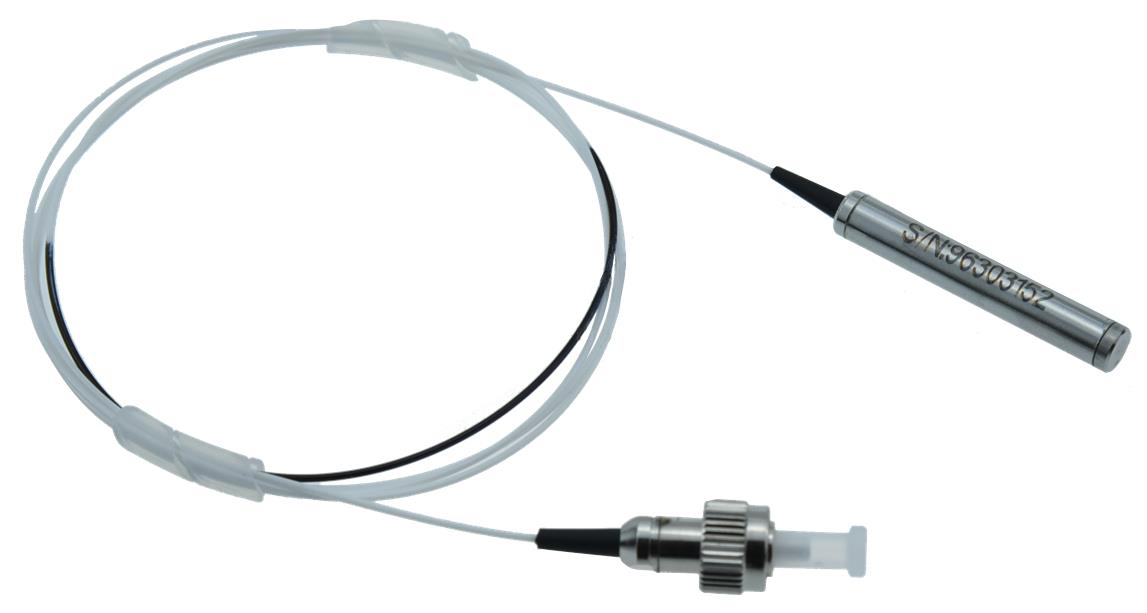

Online Faraday Rotator Mirror
The online Faraday rotator mirror can reflect the incident light polarization state (SOP) at a 90° orthogonal polarization direction. It utilizes the magnetic rotation principle of the Faraday effect, with a single rotation of 45°, followed by a second reflection through the rear flat mirror to achieve a total rotation of 90°. This product features low insertion loss, high return loss, high extinction ratio, and excellent environmental stability and reliability, making it ideal for minimizing changes in fiber vibration caused by thermal and mechanical movements.
Specification Snapshot
Insertion Loss (dB) 1310/1550
≤0.6
Insertion Loss (dB) 1064
≤3.0
Return Loss (dB)
≥55
Power Handling (mW) 1310/1550
500
Power Handling (mW) 1064
100

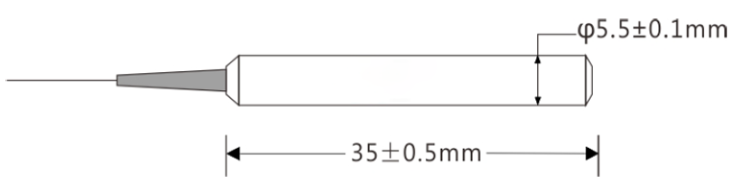

Package Dimensions
φ5.5±0.1mm, 35±0.5mm
Request a Quote
Download Datasheet
Chat
Overview
The online Faraday rotator mirror can reflect the incident light polarization state (SOP) at a 90° orthogonal polarization direction. It utilizes the magnetic rotation principle of the Faraday effect, with a single rotation of 45°, followed by a second reflection through the rear flat mirror to achieve a total rotation of 90°. This product features low insertion loss, high return loss, high extinction ratio, and excellent environmental stability and reliability, making it ideal for minimizing changes in fiber vibration caused by thermal and mechanical movements.
Specifications
| Parameter | Value |
|---|---|
| Center Wavelength (nm) 1310/1550 | ±15 |
| Center Wavelength (nm) 1064 | ±5 |
| Bandwidth (nm) 1310/1550 | ±15 |
| Bandwidth (nm) 1064 | ±5 |
| Insertion Loss (dB) 1310/1550 | ≤0.6 |
| Insertion Loss (dB) 1064 | ≤3.0 |
| Single Rotation Angle (°) | 45° or 90° |
| Rotation Angle Error (°) | ±0.15° |
| Return Loss (dB) | ≥55 |
| Power Handling (mW) 1310/1550 | 500 |
| Power Handling (mW) 1064 | 100 |
| Fiber Type 1310/1550 | SMF-28e |
| Fiber Type 1064 | Hi1060 |
| Tensile Strength (N) | 5 |
| Operating Temperature (°C) | -5~+70 |
| Storage Temperature (°C) | -40~+85 |
| Fiber Length | 0.5m, 0.8m, 1m, 1.5m |
| Fiber Type | 0.25mm, 0.9mm |
| Connector Type | FC/APC or customer specified |
| Package Dimensions | φ5.5±0.1mm, 35±0.5mm |
Applications
1. Fiber laser devices 2. Fiber amplifiers 3. Optical communication systems 4. Fiber sensing systems 5. Measuring instruments
Key Features
1. Low insertion loss 2. High stability 3. High extinction ratio 4. Compact structure
Datasheet
Product Datasheet
PDF
