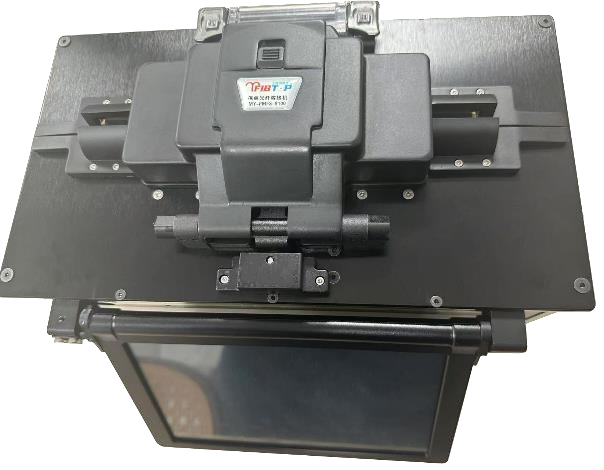

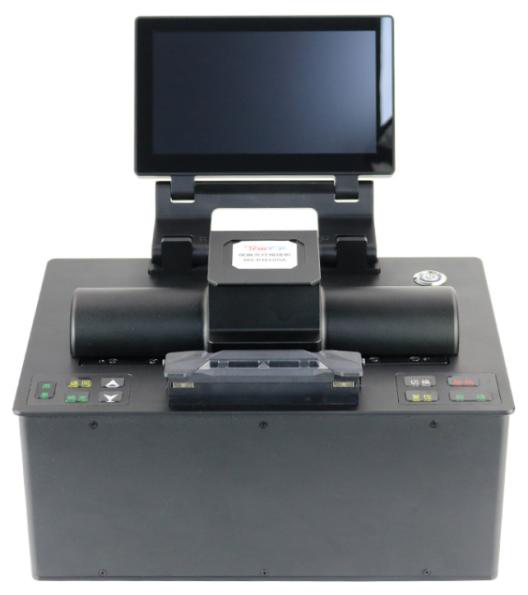

MY-PM100A Automatic Polarization Maintaining Fiber Fusion Splicer
Category
Fiber Optics
Origin
China

MY-PM100A is a high-precision automatic polarization maintaining fiber fusion splicer developed by Shanghai Fibertop Optoelectronics Technology Co., Ltd. It is designed for fiber splicing, fiber alignment, fiber end-face processing, and fiber laser applications. This versatile platform ensures reliable and efficient fiber splicing.

Specification Snapshot
Extinction Ratio (dB)
-38
Return Loss (dB)
>=60
Request a Quote Download Datasheet Chat
Save to Favorites Save to Favorites

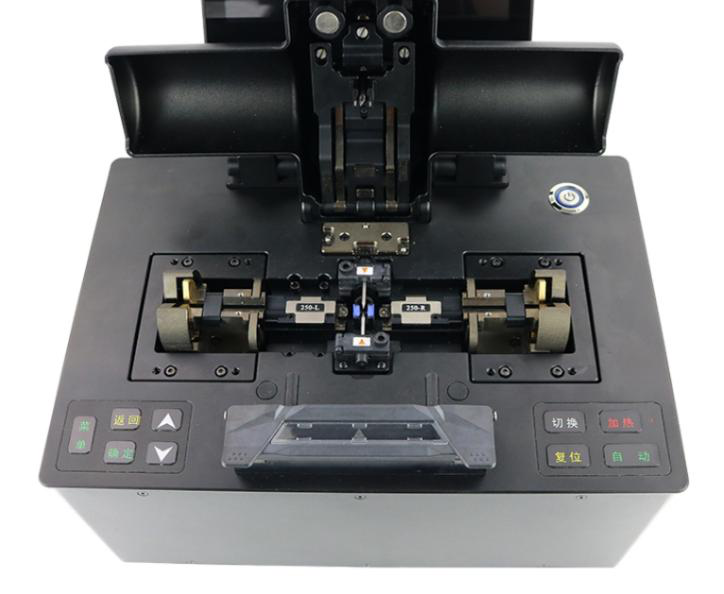

Overview

MY-PM100A is a high-precision automatic polarization maintaining fiber fusion splicer developed by Shanghai Fibertop Optoelectronics Technology Co., Ltd. It is designed for fiber splicing, fiber alignment, fiber end-face processing, and fiber laser applications. This versatile platform ensures reliable and efficient fiber splicing.

Specifications

ParameterValue

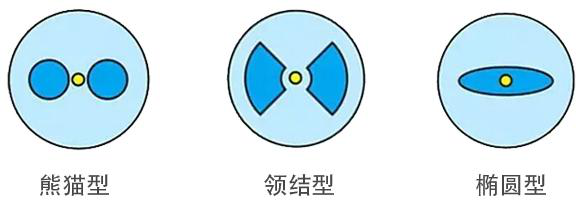

Applicable Fiber保偏光纤(PMF): 熊猫型、领结型、椭圆型; SMF(G.652), MMF(G.651), DSF(G.653), NZDSF(G.655), BIF(G.657)
Fiber Diameter (μm)包层直径: 60~150; 涂覆层直径: 100~500
Cutting Length (mm)5.5~16(标准: 8~16)
Average Splicing Time (s)40
Typical Splicing Loss (dB)0.02(SMF), 0.01(MMF), 0.05(PSF, NFD, BIF, PMF)
Extinction Ratio (dB)-38
Average Splicing Loss (dB)0.02(SMF), 0.01(MMF), 0.05(PSF, NFD, BIF, PMF)
Return Loss (dB)>=60
Alignment Mode0°, 45°, 90°光纤熔接
Alignment Method端面、侧面
Working Mode自动, 手动
Automatic Discharge Calibration支持
Electrode Life放电5000次
Operation Program12组工厂预置程序, 可自定义
Data Storage可存储10000条熔接日志, 20000张熔接图像
Language Display中文, multiple语言可选
Operating Environment温度: -25~+50°C; 湿度: 0~95%RH(不结露); 海拔: 0~5000m; 风速: 最大15米/秒
Storage Environment温度: -40~+80°C; 湿度: 0~95%RH(不结露)
Power Supply交流适配器, 交流输入电压85~260V, 50/60Hz
Display Size7英寸彩色分辨率液晶屏
Dimensions/Weight DxWxH (mm/kg)296×200×194/6.7

Applications

1. Fiber communication systems 2. Fiber laser systems 3. Fiber optic sensing systems 4. Fiber end-face processing

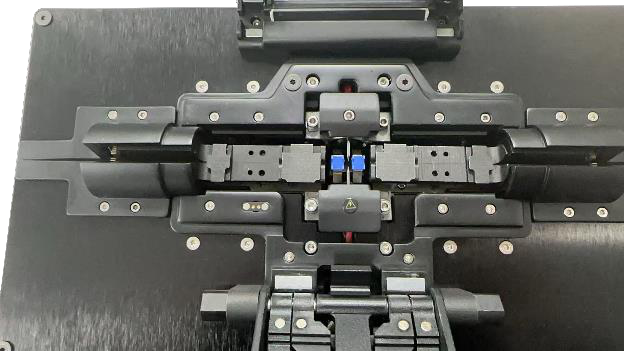

Key Features

1. Suitable for cladding diameters of 60~150μm for polarization maintaining fibers 2. High-definition imaging system for precise fiber alignment 3. Adjustable electrode size for accurate discharge calibration 4. Software upgradeable, data storage and exportable 5. Supports various fiber types and cladding diameters 6. 360-degree rotation for precise alignment
