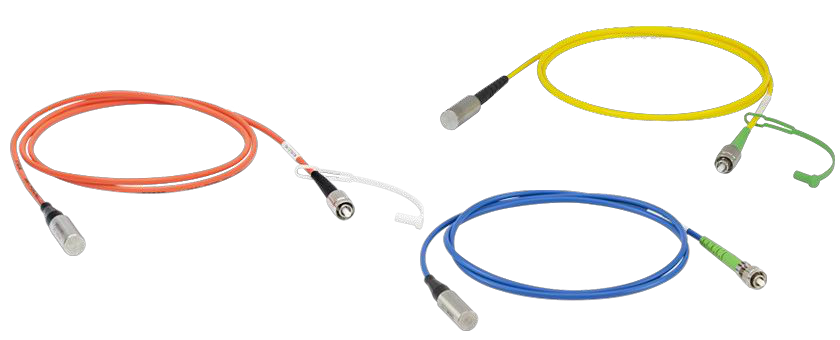

Fiber Retroreflector
The fiber retroreflector is designed to reflect light back into the fiber through the connector. It is used to produce a low-power laser resonator for fiber interferometers. These retroreflectors are suitable for precision laser emitters, amplifiers, and other devices requiring retroreflection.
Specification Snapshot
Wavelength Range SM600
630~780nm
Insertion Loss (dB) SM600
≤4
Cladding Diameter SM600
125±1.0μm
Coating Diameter SM600
245±15μm
Max Power SM600
300mW
Wavelength Range 780HP
780~970nm
Request a Quote
Download Datasheet
Chat
Overview
The fiber retroreflector is designed to reflect light back into the fiber through the connector. It is used to produce a low-power laser resonator for fiber interferometers. These retroreflectors are suitable for precision laser emitters, amplifiers, and other devices requiring retroreflection.
Specifications
| Parameter | Value |
|---|---|
| Fiber Type SM600 | SM600 |
| Wavelength Range SM600 | 630~780nm |
| Mode Field Diameter SM600 | 3.6~5.3±0.3μm |
| Insertion Loss (dB) SM600 | ≤4 |
| Cladding Diameter SM600 | 125±1.0μm |
| Coating Diameter SM600 | 245±15μm |
| Numerical Aperture SM600 | 0.10~0.14 |
| Connector Type SM600 | FC/PC or FC/APC |
| Max Power SM600 | 300mW |
| Fiber Length SM600 | 1m |
| Fiber Type 780HP | 780HP |
| Wavelength Range 780HP | 780~970nm |
| Mode Field Diameter 780HP | 5.0±0.5μm |
| Insertion Loss (dB) 780HP | ≤3 |
| Cladding Diameter 780HP | 125±1.0μm |
| Coating Diameter 780HP | 245±15μm |
| Numerical Aperture 780HP | 0.13 |
| Connector Type 780HP | FC/PC or FC/APC |
| Max Power 780HP | 300mW |
| Fiber Length 780HP | 1m |
| Fiber Type SM980-5-8-125 | SM980-5-8-125 |
| Wavelength Range SM980-5-8-125 | 980~1550nm |
| Mode Field Diameter SM980-5-8-125 | 6.3~6.4±0.5μm |
| Insertion Loss (dB) SM980-5-8-125 | ≤2 |
| Cladding Diameter SM980-5-8-125 | 125±1.0μm |
| Coating Diameter SM980-5-8-125 | 245±15μm |
| Numerical Aperture SM980-5-8-125 | 0.13~0.15 |
| Connector Type SM980-5-8-125 | FC/PC or FC/APC |
| Max Power SM980-5-8-125 | 300mW |
| Fiber Length SM980-5-8-125 | 1m |
| Fiber Type SMF-28 Ultra | SMF-28 Ultra |
| Wavelength Range SMF-28 Ultra | 1260~1625nm |
| Mode Field Diameter SMF-28 Ultra | 9.2±0.4μm |
| Insertion Loss (dB) SMF-28 Ultra | ≤0.6 |
| Cladding Diameter SMF-28 Ultra | 125±0.7μm |
| Coating Diameter SMF-28 Ultra | 242±5μm |
| Numerical Aperture SMF-28 Ultra | 0.14 |
| Connector Type SMF-28 Ultra | FC/PC or FC/APC |
| Max Power SMF-28 Ultra | 300mW |
| Fiber Length SMF-28 Ultra | 1m |
| Fiber Type PM630-HP | PM630-HP |
| Wavelength Range PM630-HP | 620~850nm |
| Mode Field Diameter PM630-HP | 4.5±0.5μm |
| Insertion Loss (dB) PM630-HP | ≤2.4 |
| Extinction Ratio (dB) PM630-HP | ≥18 |
| Cladding Diameter PM630-HP | 125±2μm |
| Coating Diameter PM630-HP | 245±15μm |
| Numerical Aperture PM630-HP | 0.12 |
| Connector Type PM630-HP | FC/PC or FC/APC |
| Max Power PM630-HP | 300mW |
| Fiber Length PM630-HP | 1m |
| Fiber Type PM780-HP | PM780-HP |
| Wavelength Range PM780-HP | 770~1100nm |
| Mode Field Diameter PM780-HP | 5.3±0.1μm |
| Insertion Loss (dB) PM780-HP | ≤2 |
| Extinction Ratio (dB) PM780-HP | ≥18 |
| Cladding Diameter PM780-HP | 125±2μm |
| Coating Diameter PM780-HP | 245±15μm |
| Numerical Aperture PM780-HP | 0.12 |
| Connector Type PM780-HP | FC/PC or FC/APC |
| Max Power PM780-HP | 300mW |
| Fiber Length PM780-HP | 1m |
| Fiber Type PM980-XP | PM980-XP |
| Wavelength Range PM980-XP | 970~1550nm |
| Mode Field Diameter PM980-XP | 6.6±0.5μm |
| Insertion Loss (dB) PM980-XP | ≤1.4 |
| Extinction Ratio (dB) PM980-XP | ≥22 |
| Cladding Diameter PM980-XP | 125±1μm |
| Coating Diameter PM980-XP | 245±15μm |
| Numerical Aperture PM980-XP | 0.12 |
| Connector Type PM980-XP | FC/PC or FC/APC |
| Max Power PM980-XP | 300mW |
| Fiber Length PM980-XP | 1m |
| Fiber Type PM1550-XP | PM1550-XP |
| Wavelength Range PM1550-XP | 1440~1625nm |
| Mode Field Diameter PM1550-XP | 10.1±0.4μm |
| Insertion Loss (dB) PM1550-XP | ≤1 |
| Extinction Ratio (dB) PM1550-XP | ≥22 |
| Cladding Diameter PM1550-XP | 125±1μm |
| Coating Diameter PM1550-XP | 245±15μm |
| Numerical Aperture PM1550-XP | 0.12 |
| Connector Type PM1550-XP | FC/PC or FC/APC |
| Max Power PM1550-XP | 300mW |
| Fiber Length PM1550-XP | 1m |
| Fiber Type FG1051CA | FG1051CA |
| Wavelength Range FG1051CA | 400~2400nm |
| Core Diameter FG1051CA | 105±3μm |
| Cladding Diameter FG1051CA | 125±2μm |
| Coating Diameter FG1051CA | 250±10μm |
| Numerical Aperture FG1051CA | 0.22±0.02 |
| Connector Type FG1051CA | FC/PC |
| Max Power FG1051CA | 300mW |
| Fiber Length FG1051CA | 1m |
Applications
1. Fiber interferometers 2. Fiber amplifiers 3. Adjustable retroreflectors
Key Features

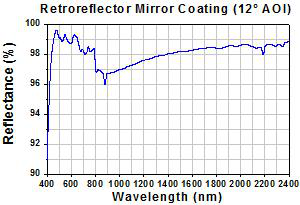

1. SM, PM, and MM fiber retroreflectors 2. End protection with silver film 3. Wavelength range from 450nm to 2400nm with Ravg ≥97.5% 4. 2.0mm key FC/PC or FC/APC connectors 5. Suitable for lasers with power up to 300mW 6. 1-meter cable length
Datasheet
Product Datasheet
PDF
