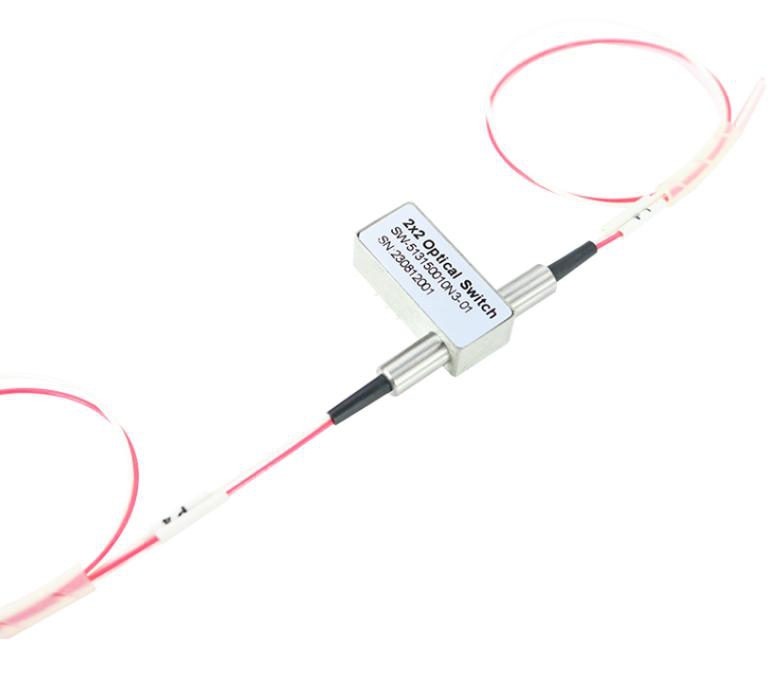

Mechanical Optical Switch 2x2

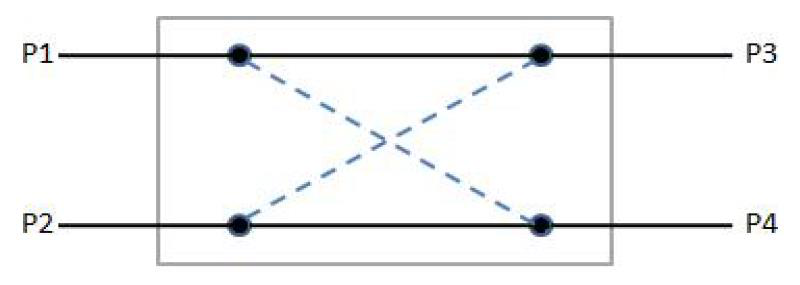

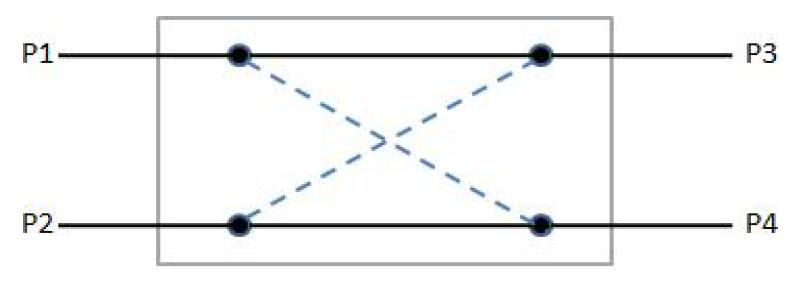

The 2x2 mechanical optical switch is a high-performance device with low insertion loss and compact size, designed for dynamic configuration in OADM, OXC, and system monitoring applications. It enables optical path switching and is suitable for integration into high-density optical communication systems.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Operating Wavelength (nm) | 1260~1620nm |
| Insertion Loss (dB) | ≤1.0dB |
| Crosstalk (dB) | ≥55dB |
| Return Loss (dB) | ≥50dB |
| Polarization Dependent Loss (dB) | ≤0.05dB |
| Wavelength Dependent Loss (dB) | ≤0.25dB |
| Temperature Dependent Loss (dB) | ≤0.20dB |
| Repeatability (dB) | ≤0.02dB |
| Lifetime (cycles) | ≥10⁷ |
| Switching Time (ms) | ≤8ms |
| Transmission Optical Power (mW) | 500mW |
| Operating Temperature (°C) | -20~+70°C |
| Storage Temperature (°C) | -40~+85°C |

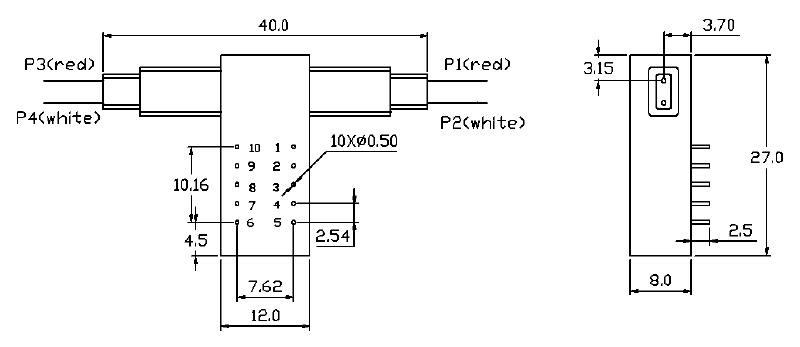

| Dimensions (L×W×H, mm) | 27.0×12.0×8.0W |
Applications
Key Features
Datasheet
