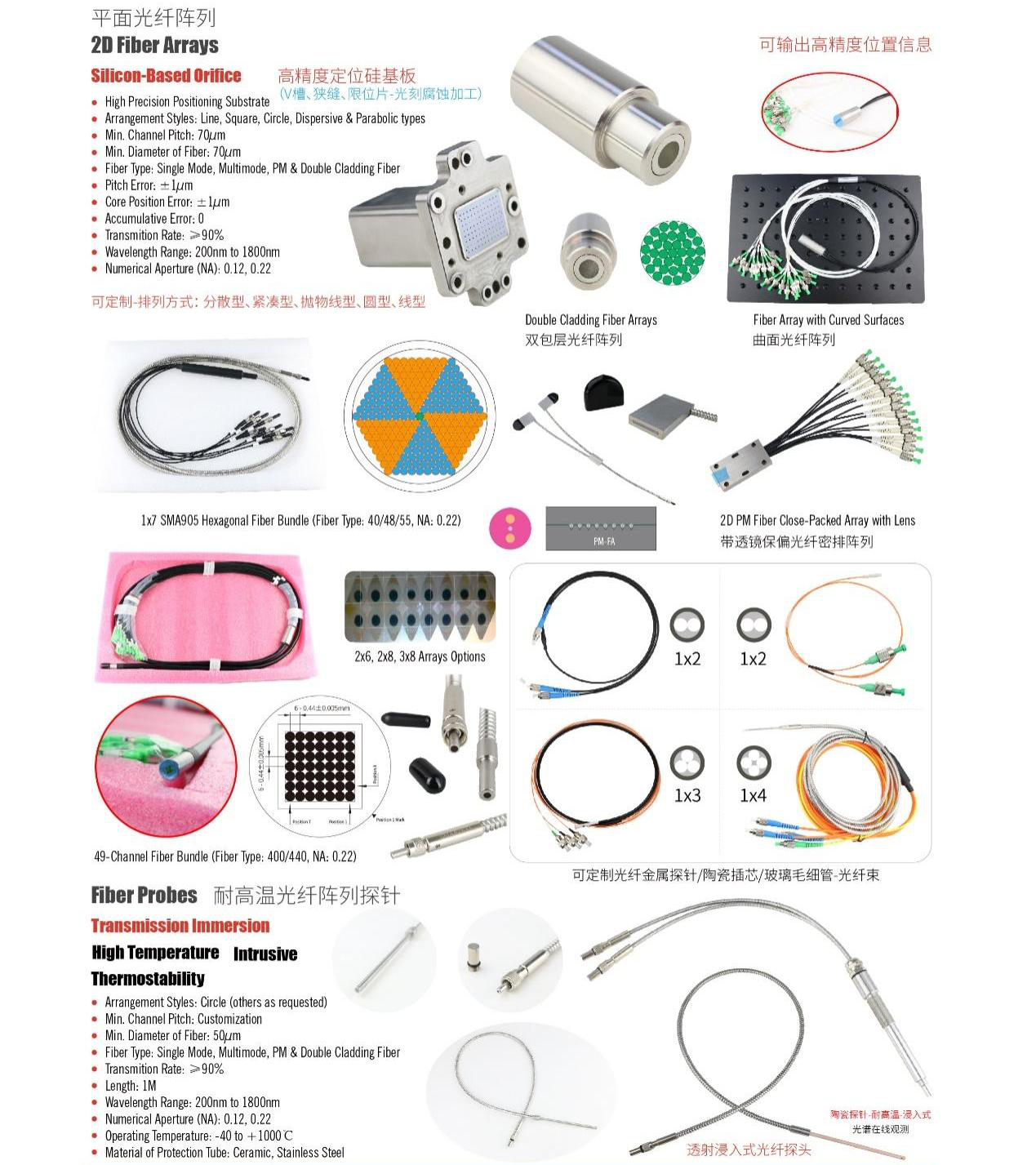

2D Fiber Arrays
2D Fiber Arrays are precision-manufactured using silicon-based perforated plates for fiber positioning. These arrays offer high alignment accuracy, optical-grade flatness, and cleanliness, ensuring precise alignment of optical fibers and components. They are characterized by their high precision, uniformity, and excellent optical performance.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Arrangement Method | Linear, square, circular, polygonal, fan-shaped, dense and scattered, customizable |
| Minimum Arrangement Period (μm) | 70μm |
| Vibration Fiber Diameter (μm) | 50μm |
| Peripheral Deviation (μm) | ±1μm |
| Fiber Position Deviation (μm) | ±1μm |
| Transmittance | ≥90% |
| Applicable Wavelength Range (nm) | 200–1800 |
| Numerical Aperture NA | 0.12/0.22 |
Applications
Key Features
Datasheet
Supplier Information
