Manual Fiber Polarization Controller

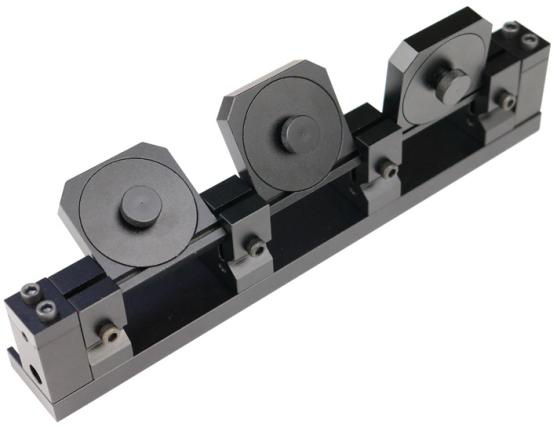

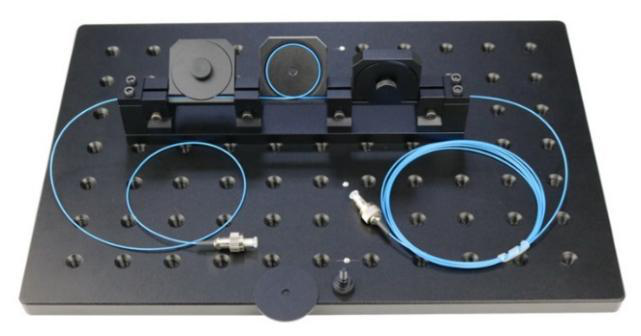

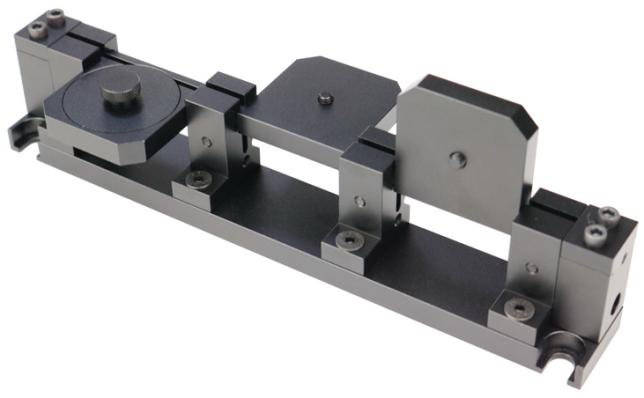

The manual fiber polarization controller utilizes three circular paddles to produce double refraction, thereby forming independent wave plates. By adjusting the rotation angle of the paddles, the polarization state of the transmitted light can be changed. This device is suitable for various fiber optic applications, including laboratory research and optical communication systems.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Model No. | MFPC-27 |
| Number of Paddles | 3 |
| Loop Diameter | 1.06" (27mm) |
| Paddle Rotation | ±117.5° |
| Footprint (L×W) | 184.5mm×25mm |
| Fiber | None, 780HP, HI1060 |
| Included Patch Cable | AFC-R-780HP-2, AFC-Q-HI1060-2 |
| Mode Field Diameter | 5.0±0.5μm@850nm, 5.9±0.3μm@980nm, 6.2±0.3μm@1060nm |
| Cut-off Wavelength | 730±30nm, 920±50nm |
| NA | 0.13, 0.14 |
| Jacketing | φ900μm Hytrel Tubing, φ900μm Tight Buffer |
| Loop Configuration | 1 Loop - 2 Loops - 1 Loop, 3 Loops - 2 Loops - 3 Loops |
| Total Fiber Length | 2m±7/0cm |
| Fiber Lead Length | 83cm, 66cm |
| Connectors | FC/APC |
| Bend Loss | ≤0.1dB |
