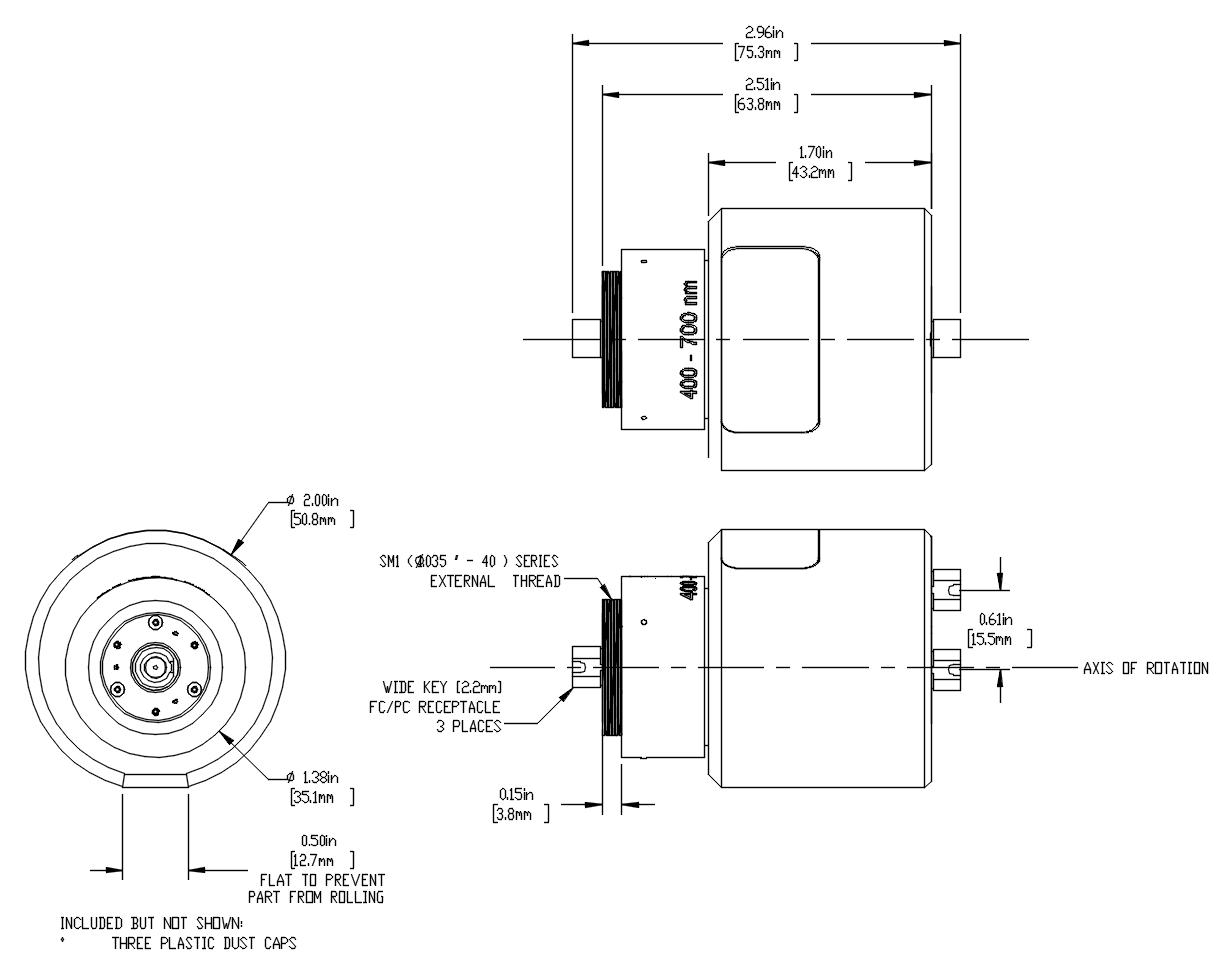

1×2 Rotary Fiber Optic Splitter
The 1×2 rotary fiber optic splitter is designed for optical transmission applications, capable of evenly splitting input light into two output beams. The rotary connection facilitates free movement of the fiber cable, reducing damage to samples caused by fiber movement. It supports FC/PC connectors and is compatible with various fiber types, such as multimode fibers. For optimal performance, TEC-packaged fibers with a core diameter of ≥200μm and NA of 0.22–0.50 are recommended.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Operating Wavelength (nm) | 400–700 |
| Splitting Ratio | 50:50±5 |

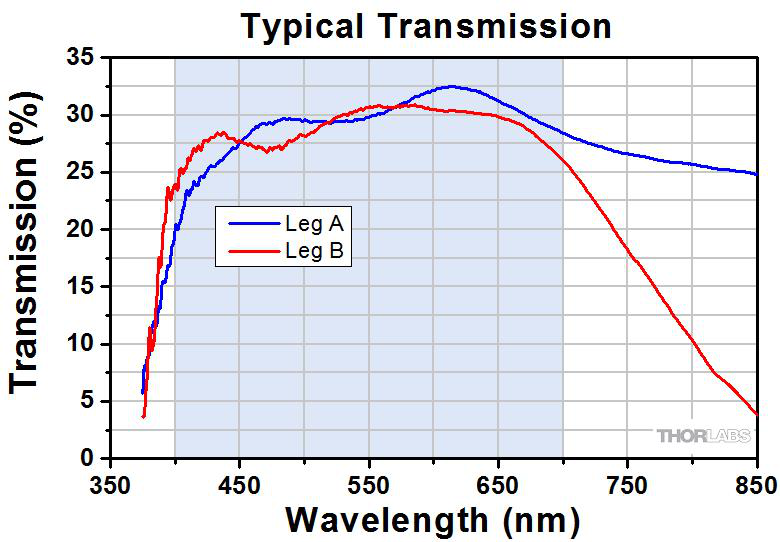

| Transmission Rate (%) LED | 30% |
| Transmission Rate (%) Laser | 35% |

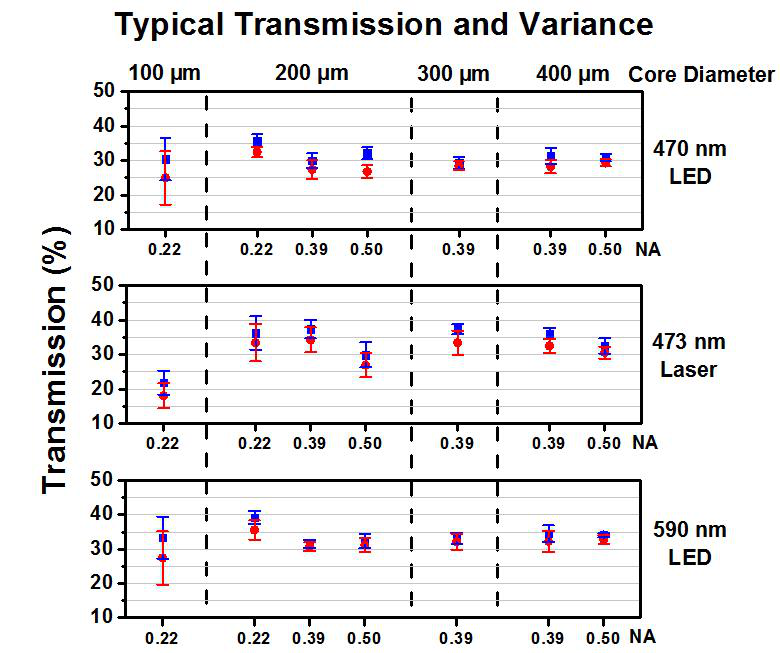

| Transmission Rate Fluctuation (%) LED | ±1.75% |
| Transmission Rate Fluctuation (%) Laser | ±3.5% |
| Initial Torque (μN·m) | ≤150 |
| Recommended Fiber Core Diameter (μm) | ≥200μm |
| Recommended Fiber Numerical Aperture NA | 0.22–0.50 |
Applications
Key Features
Datasheet
Supplier Information
Related Products
-
10xxnm High Power Tap Coupler
Fiber Optic Couplers
Lightcomm
Center Wavelength λ_c [Center wavelength must be specified, e.g.1064nm,1080nm etc.]: 1030 ~ 1090 nm Bandwidth: ±10 nm Typical Excess Loss: 0.2 dB
Lightcomm 1x2 and 2x2 10xx nm high power tap couplers are used in fiber laser and amplifier systems to monitor both forward and backward power. It can work under high power condition with exceptional low excess loss.
-
1X3 Polarization Maintaining Coupler
Fiber Optic Couplers
Lightcomm
Coupling ratio [The specifications are without connectors; Slow axis working.]: 33/33/33 Fiber type [The specifications are without connectors; Slow axis working.]: PM panda fiber Pigtail type [The specifications are without connectors; Slow axis working.]: 250um bare fiber
LightComm uses unique fusing technique and polarization maintaining fiber to build the 1x3 polarization maintaining fused coupler (1x3PMC).The coupling ratio could be selected according to customer’s request. It features low excess loss, small size and high polarization extinction ratio. PMC is widely used for optical sensors and optical gyro, optical amplifier.
-
1×N(2×N) Single Mode Coupler Module
Fiber Optic Couplers
Lightcomm
Insertion loss [SSSC/SWBC;N×4;N=1,2; Without connector;Grade P]: ≤6.9 dB Insertion loss [SSSC/SWBC;N×4;N=1,2; Without connector;Grade A]: ≤7.3 dB Typical excess loss [SSSC/SWBC;N×4;N=1,2; Without connector;Grade P/A Shared]: 0.25 dB
1×N (2×N) coupler splitter modules are cascaded with the single mode couplers. These modules are widely used for FTTH, LAN, and CATV optical networks.
-

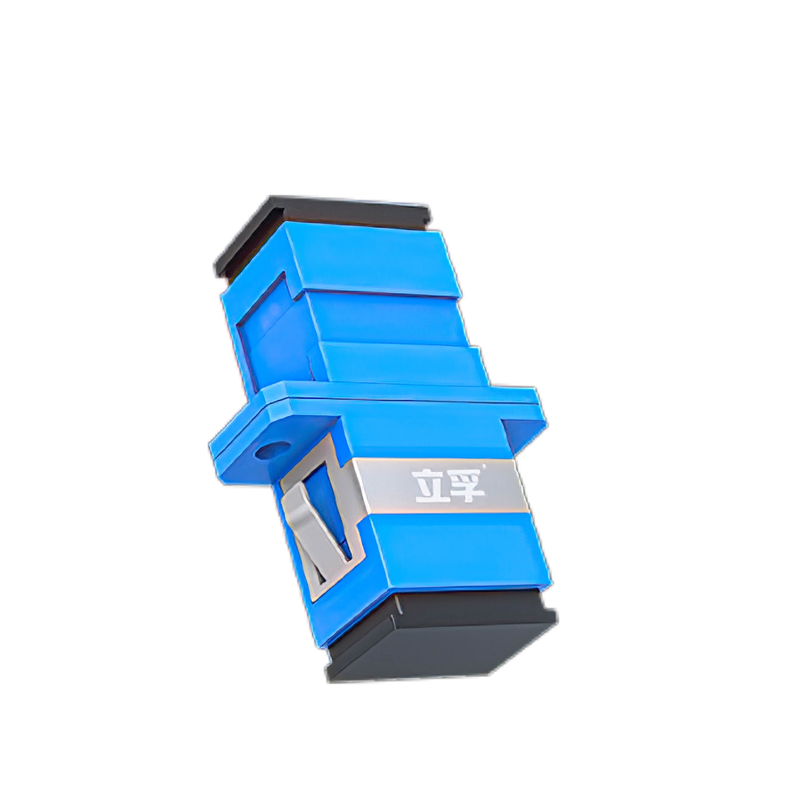

Flange/Adapter Lifo-fj SC Single-Mode
