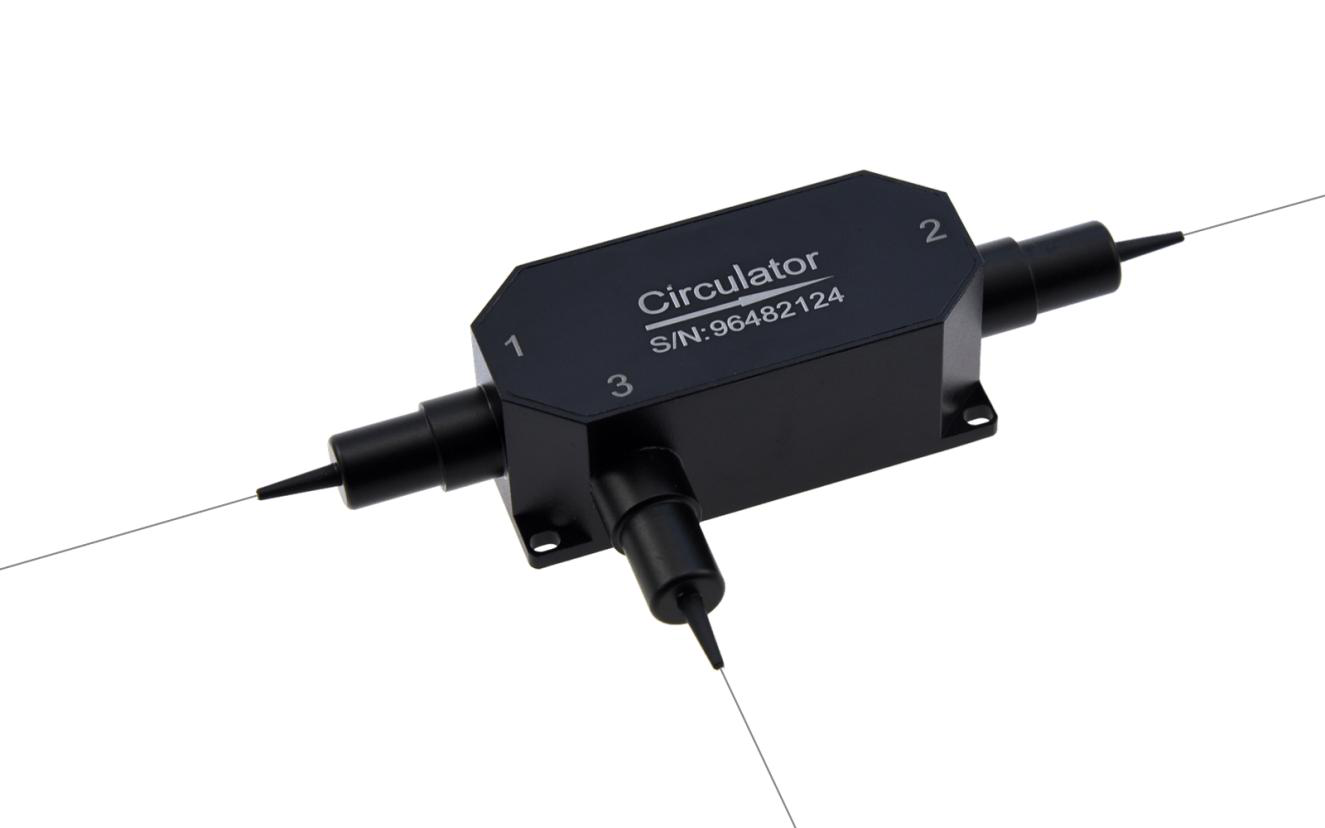

TGG-Based Fiber Optical Circulator
The three-port fiber optical circulator is a non-reciprocal optical device that allows light to propagate in one direction. It minimizes signal loss and ensures high transmission efficiency. Widely used in fiber laser systems, optical sensing, and scientific research.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Center Wavelength (nm) 532 | 532±5nm |
| Center Wavelength (nm) 635/680 | 635/680±5 |
| Center Wavelength (nm) 780/808 | 780/808±10 |
| Center Wavelength (nm) 830/850 | 830/850±10 |
| Center Wavelength (nm) 915 | 915±10nm |
| Center Wavelength (nm) 980 | 980±10nm |
| Peak Isolation (dB) | 20~25dB |
| Isolation Min. (dB) | 18dB |
| Insertion Loss Max. (dB) | 1.5~2.5dB |
| Extinction Ratio Min. (dB) | 18dB |
| Power Handling (W) | 0.05~20W |
| Working Axis | Single-axis, dual-axis |
| Peak Power (kW) | <10kW |
| Single Axis Min. (dB) | 45dB |
| Return Loss Min. (dB) | 45dB |
| Operating Temperature (°C) | 0~+60°C |
| Storage Temperature (°C) | -10~+75°C |

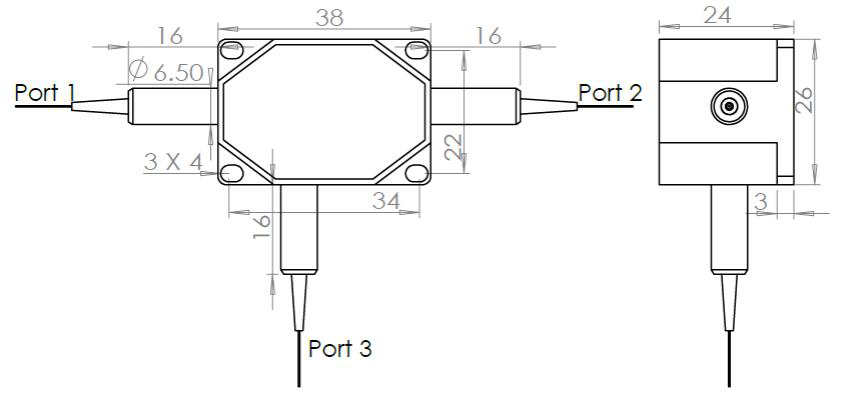

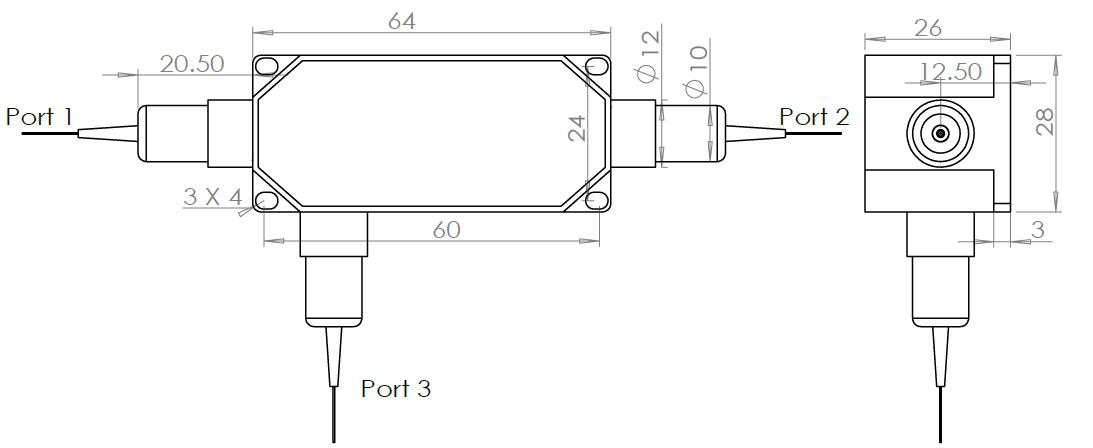

Applications
Key Features
Datasheet
Supplier Information
