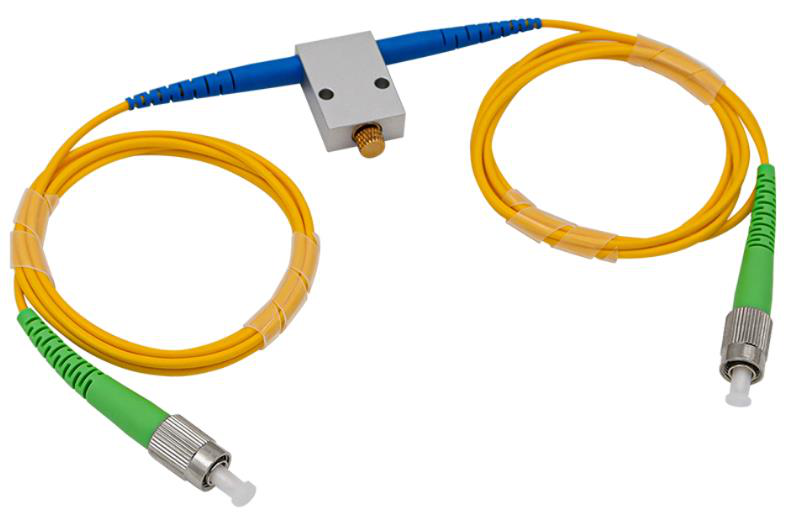

Online Adjustable Fiber Optic Attenuator
The mechanical adjustable fiber optic attenuator (VOA) is an optical device designed to reduce the power of optical signals. By adjusting the knob, it can precisely control the signal strength in the optical fiber, avoiding damage to receiving devices caused by excessive input power. It is suitable for dynamic adjustment in optical transmission systems and for balancing optical signals. Both fixed and online adjustable attenuators with extended lengths are available.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Center Wavelength (nm) | 780nm, 850nm, 980nm, 1053nm, 1064nm or Customized |
| Operating Bandwidth (nm) | ±50 |
| Insertion Loss (dB) | 0.8 |
| Attenuation Range (dB) | 0.8~60 |
| Polarization Dependent Loss (dB) | 0.1 |
| Adjustment Precision Min. (dB) | 0.02 |
| Return Loss Min. (dB) | 50 |
| Power Handling (mW) | 500 |
| Maximum Tensile Strength (N) | 5 |
| Fiber Type | 780-HP, Hi780 or Hi1060 |
| Operating Temperature (°C) | -5~+70 |
| Storage Temperature (°C) | -40~+85 |
Applications
Key Features
Datasheet
