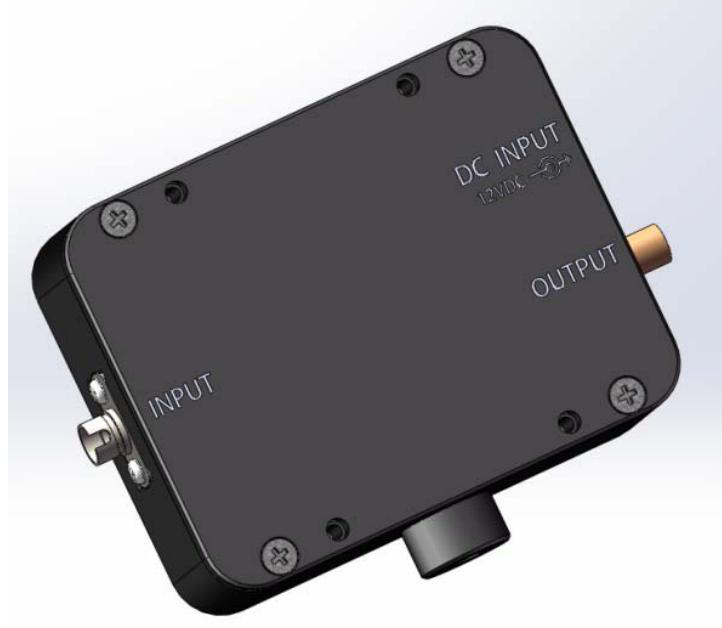

PD12 Amplified Photodetector

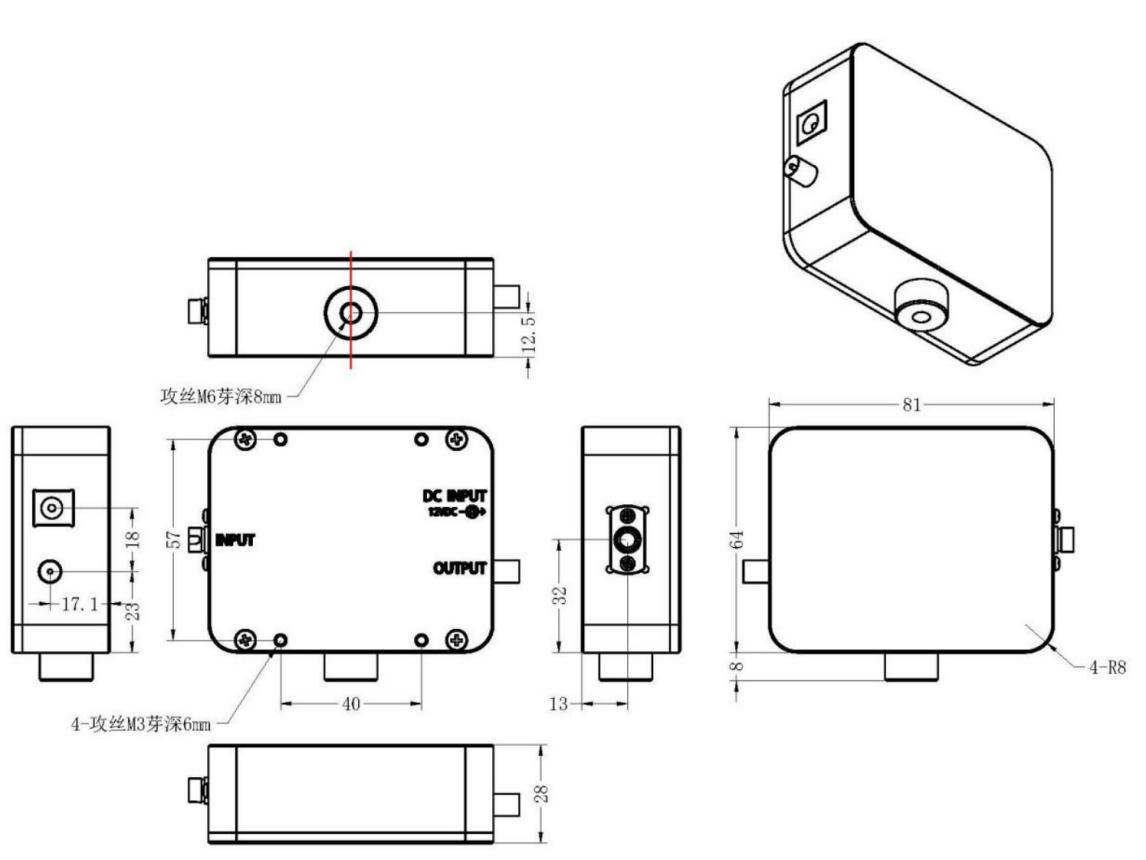

PD12 is an amplified photodetector designed for use with optical systems featuring FC connections. It includes components such as photodiodes, transimpedance amplifiers, and frequency selection circuits, all housed in an aluminum enclosure. The FC interface ensures compatibility with fiber optic systems. The device features an SMA output interface and supports a maximum bandwidth of 1GHz. It is available in two spectral ranges: 400–1000nm and 1000–1700nm.
Save to Favorites
Overview
Specifications

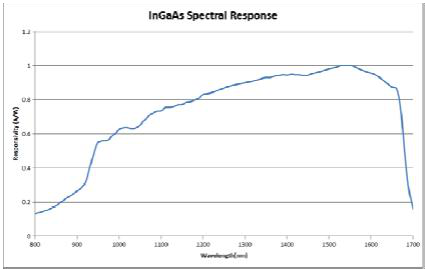

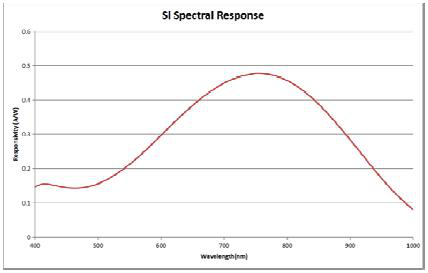

| Parameter | Value |
|---|---|
| Wavelength Range PD12A-50k-PD12A-700k | 400–1000nm |
| Photosensitive Area Diameter PD12A-50k-PD12A-700k | 200μm |
| Responsivity PD12A-50k-PD12A-700k | 0.5850nm |
| Bandwidth PD12A-50k | DC-50kHz |
| Bandwidth PD12A-300k | DC-300kHz |
| Bandwidth PD12A-700k | DC-700kHz |
| Rise Time PD12A-50k | 7μs |
| Rise Time PD12A-300k | 1μs |
| Rise Time PD12A-700k | 0.5μs |
| Gain PD12A-50k | 0.5×10⁶V/W |
| Gain PD12A-300k | 1.0×10⁶V/W |
| Gain PD12A-700k | 2.6×10⁶V/W |
| Saturation Optical Power PD12A-50k | -20.4dBm (4.9μW) |
| Saturation Optical Power PD12A-300k | -13.4dBm (45.5μW) |
| Saturation Optical Power PD12A-700k | -7.5dBm (0.18mW) |
| Output Voltage PD12A-50k | 10mV |
| Output Voltage PD12A-300k | 10mV |
| Output Voltage PD12A-700k | 10mV |
| Noise Voltage PD12A-50k | 4mV |
| Noise Voltage PD12A-300k | 3mV |
| Noise Voltage PD12A-700k | 2mV |
| Equivalent Noise Power PD12A-50k | 2.46pW/Hz |
| Equivalent Noise Power PD12A-300k | 4.98pW/Hz |
| Equivalent Noise Power PD12A-700k | 11.1pW/Hz |
| Maximum Output Amplitude PD12A-50k | 5V |
| Maximum Output Amplitude PD12A-300k | 5V |
| Maximum Output Amplitude PD12A-700k | 5V |
| Operating Voltage | 9–12V |
| Operating Current | <200mA |
| Output Impedance | 50Ω |
| Output Connection Type | DC |
| Output Connector | SMA Female |
| Operating Temperature | -20–65°C |
| Storage Temperature | -40–85°C |
