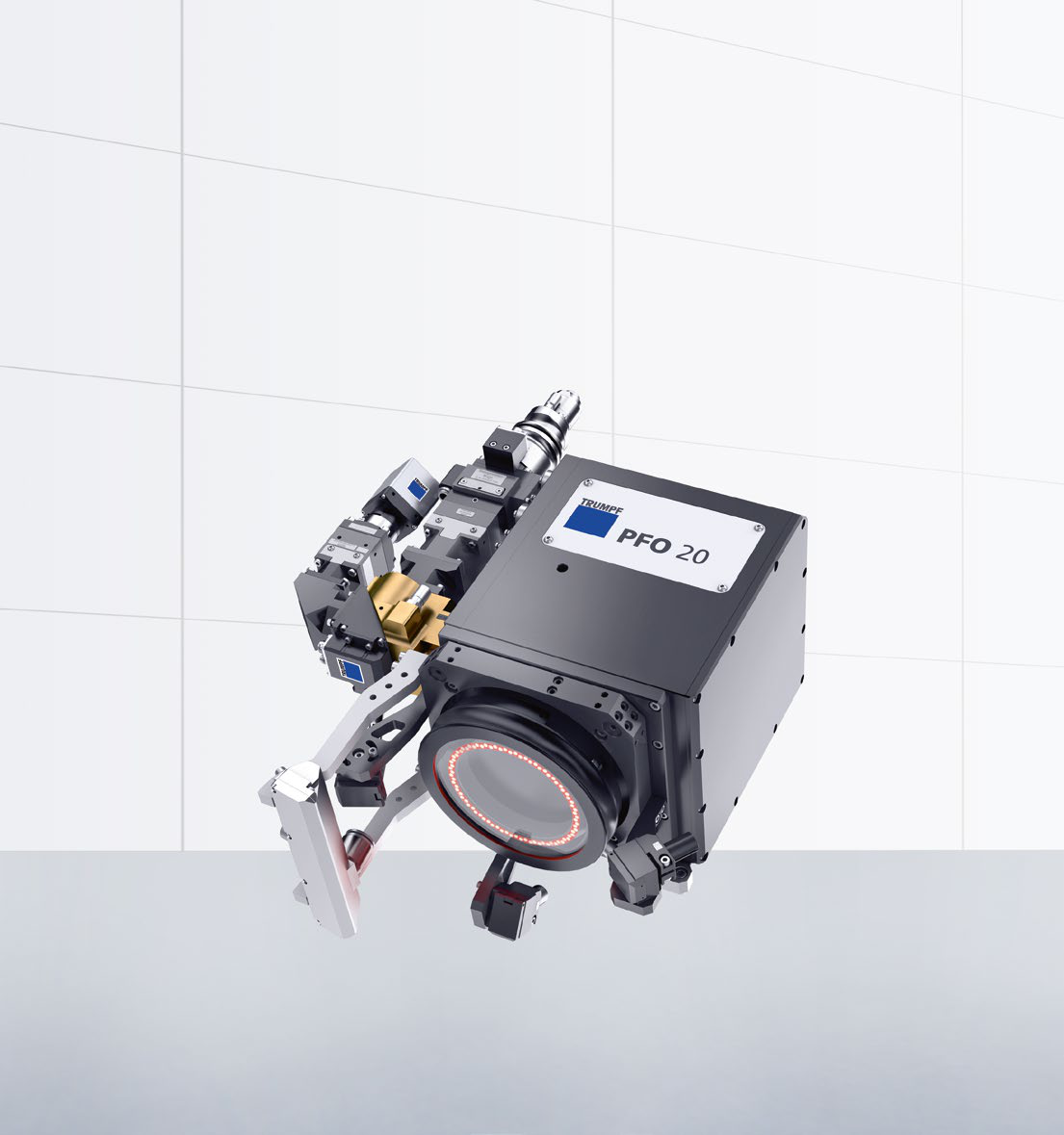

PFO 20

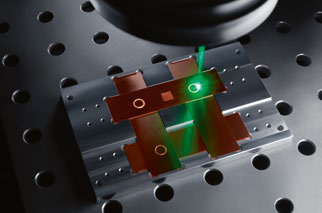

The PFO 20 is designed for highly dynamic welding and cleaning applications, offering robust design, high productivity, flexible combination, and high process stability.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Maximum Power | Up to 6kW |
| Numerical Aperture | typically 0.11; maximum 0.12 |
| Standard Collimation | 90 (TruDisk, TruFiber multi mode, TruMicro 7000, 100 | 175 (TruFiber single mode) |
| Available Focal Lengths | 100 | 135 | 160 | 264 | 315 | 400 |
| Focal Length Field Size | 51x37 (f100) | 78x57 (f135) | 92x71 (f160) | 180x148 (f264) | 250x188 (f315) | 320x237 (f400) |
| Available Lasers | TruDisk, TruFiber multi mode, TruFiber single mode, TruMicro 7000 |
| Laser Light Cable Type | LLK-D |
| Available Sensor Systems | VisionLine Cam/Basic/Detect/Project, CalibrationLine Focus and Power |
| Available Software Options | TruTops PFO |
| Available Software Options | PFO SmartTeach app |
| Dimensions (LxWxD) | 202x227x197 (configuration example with f90 and f264) |
| Weight | approx. 30kg |
| Available Options | Crossjet, MVE nozzle, camera monitoring, sensor interface, lighting, smoke bell, beam shaping for green lasers (BSG), Real-time Contour Check (RCC) |
