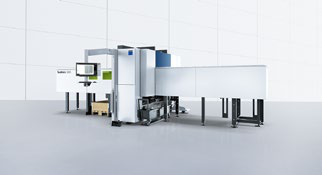

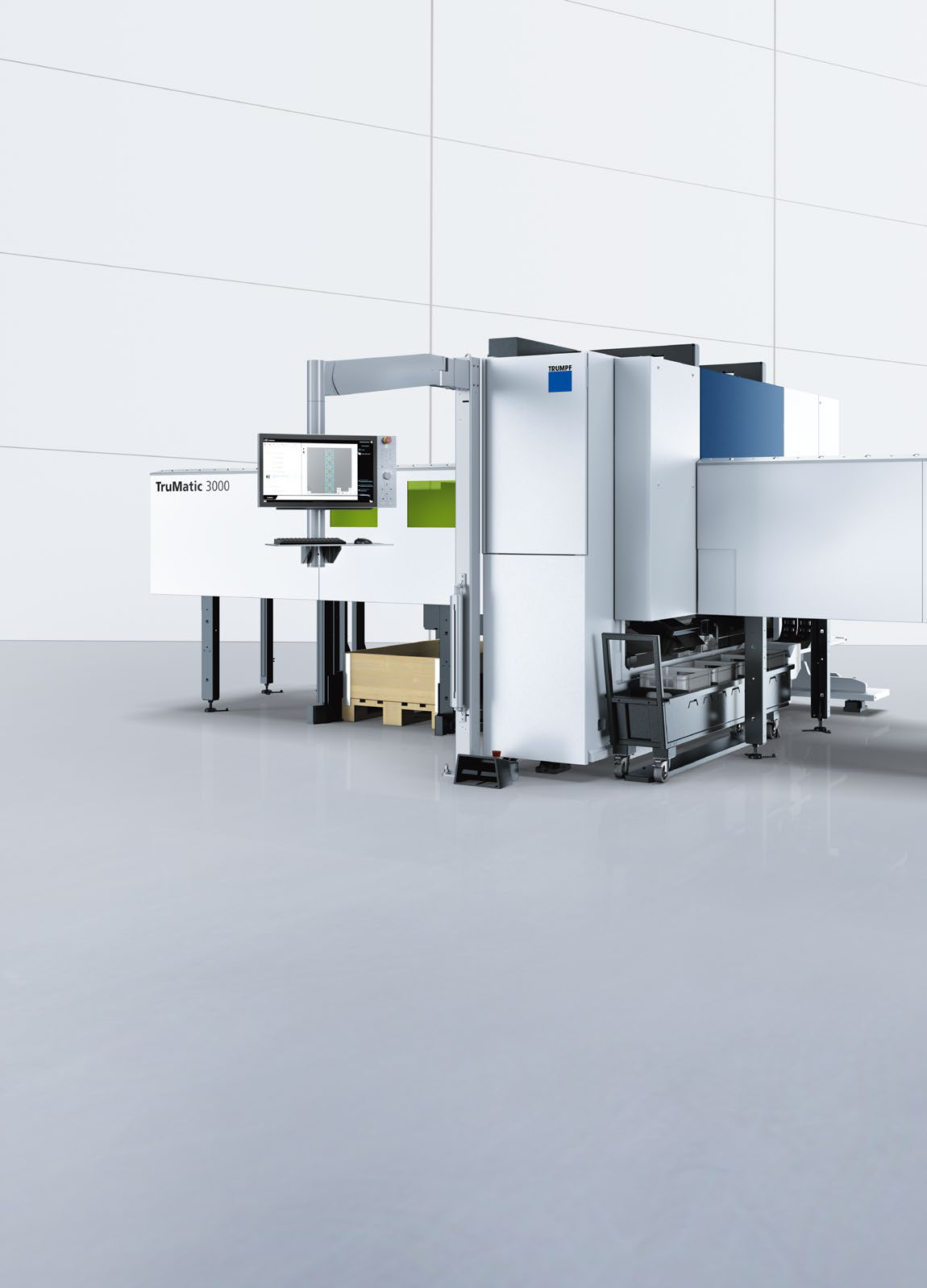

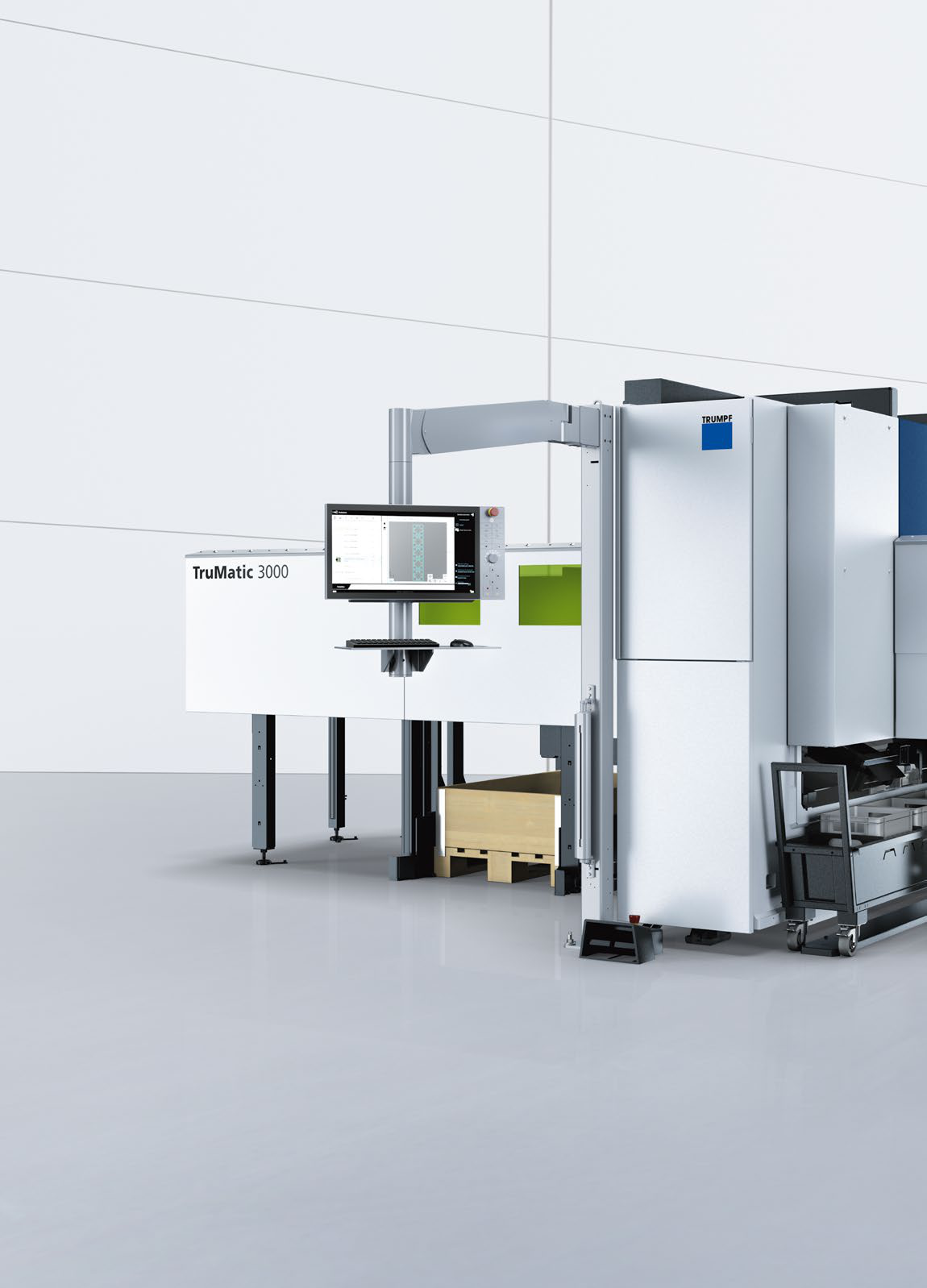

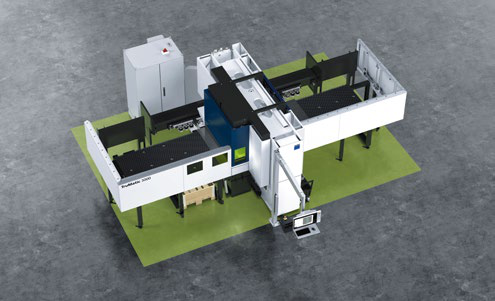

TruMatic 3000
Complete production on a single machine: punching, laser cutting, forming, and tapping – with high throughput, efficiency, and ease of use.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Punching mode (X×Y) Medium format | 2500×1250mm |
| Punching mode (X×Y) Large format | 3000×1550mm |
| Laser operation (X×Y) Medium format | 2500×1250mm |
| Laser operation (X×Y) Large format | 3000×1550mm |
| Combined processing (X×Y) Medium format | 2535×1250mm |
| Combined processing (X×Y) Large format | 3050×1500mm |
| Max. sheet thickness | 6.4mm |
| Max. workpiece weight Medium format | 150kg |
| Max. workpiece weight Large format | 230kg |
| Effective punching force Medium format | 165kN |
| Effective punching force Large format | 180kN |
| Linear magazine: Number of tools|clamps Medium format | 17|3 |
| Linear magazine: Number of tools|clamps Large format | 21|3 |
| Tool change time | 2.4s |
| Mean bidirectional positioning error M | ±0.03mm |
| C-axis punching speed | 180|350U/min |
| Maximum punching stroke rate (increments=1mm) | 600|8001/min |
| Maximum punching stroke rate (increments=25mm) | 310|4001/min |
| Maximum marking stroke rate | 1000|10001/min |
| TruFiber 3001 laser data: Max. laser power | 3000W |
| TruFiber 3001 laser data: Max. sheet thickness mild steel | 6mm |
| TruFiber 3001 laser data: Max. sheet thickness stainless steel | 6mm |
| TruFiber 3001 laser data: Max. sheet thickness aluminum | 5mm |
| TruFiber 3001 laser data: Max. sheet thickness copper | 6mm |
| TruFiber 3001 laser data: Max. sheet thickness brass | 6mm |

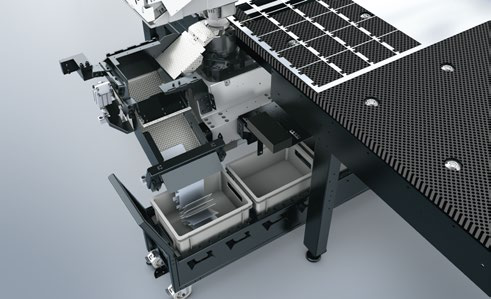

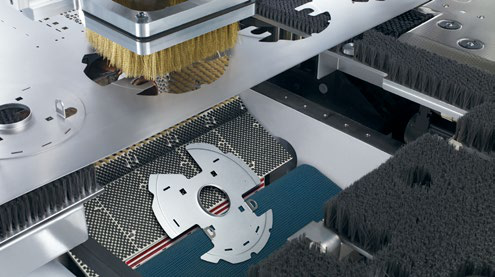

| Programmable part removal: Size of part during punching | 180×180mm |
| Programmable part removal: Size of part during laser | 400×1250mm |
