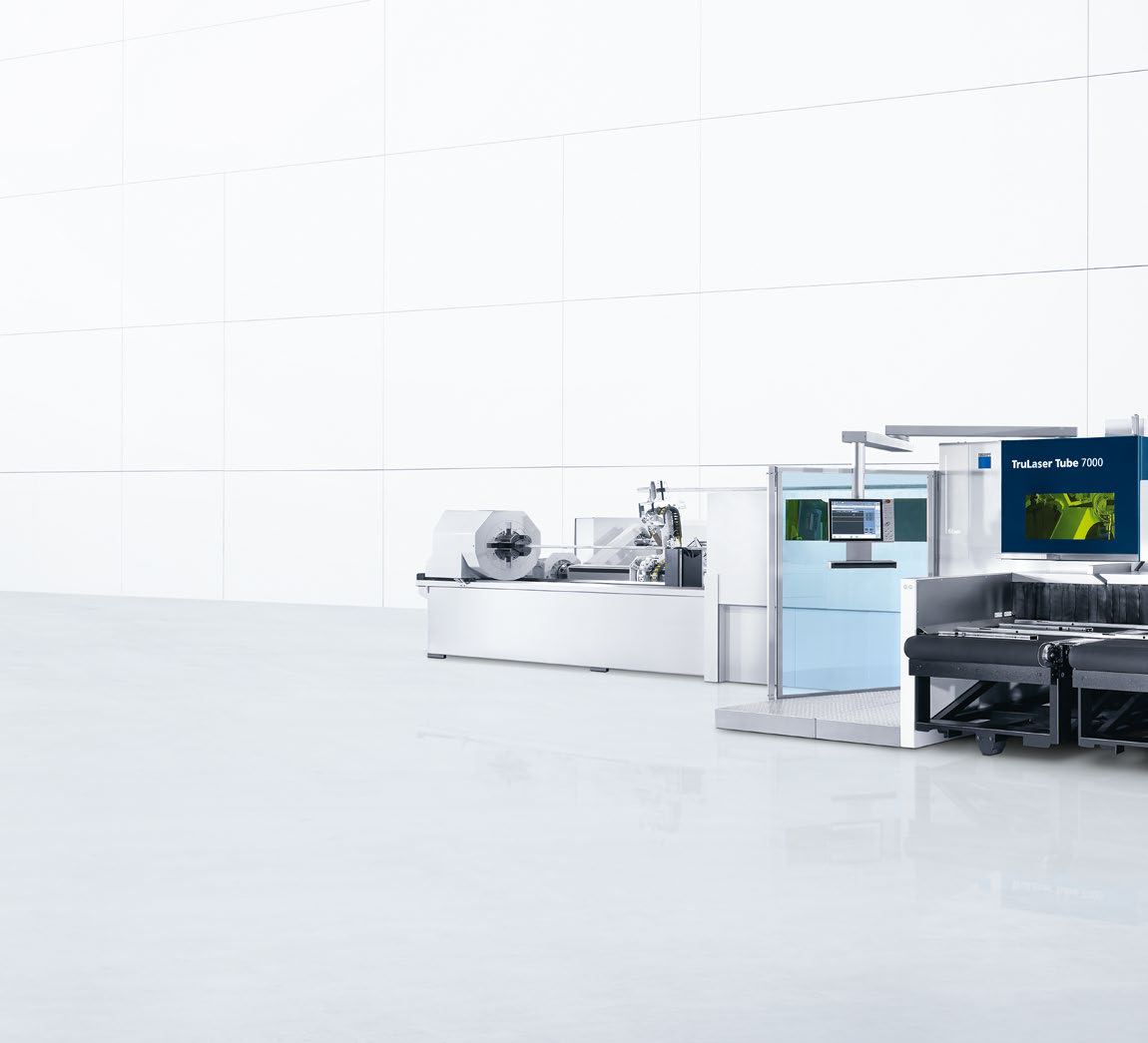

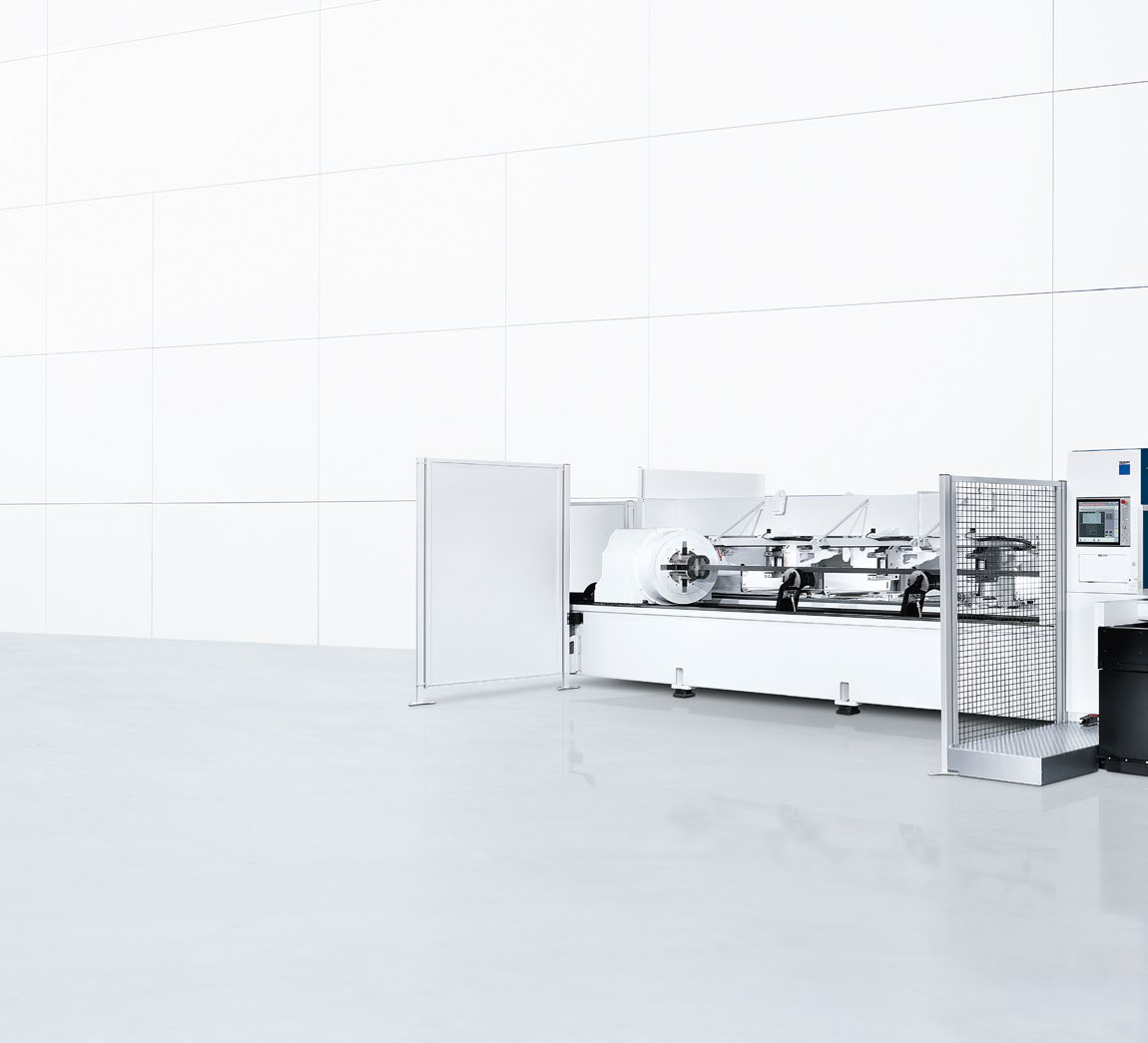

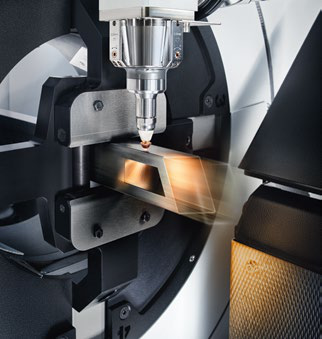

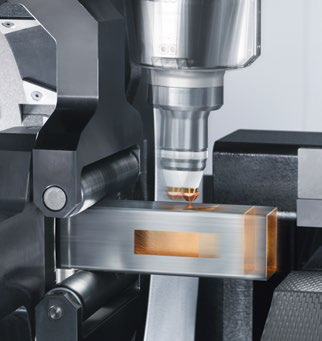

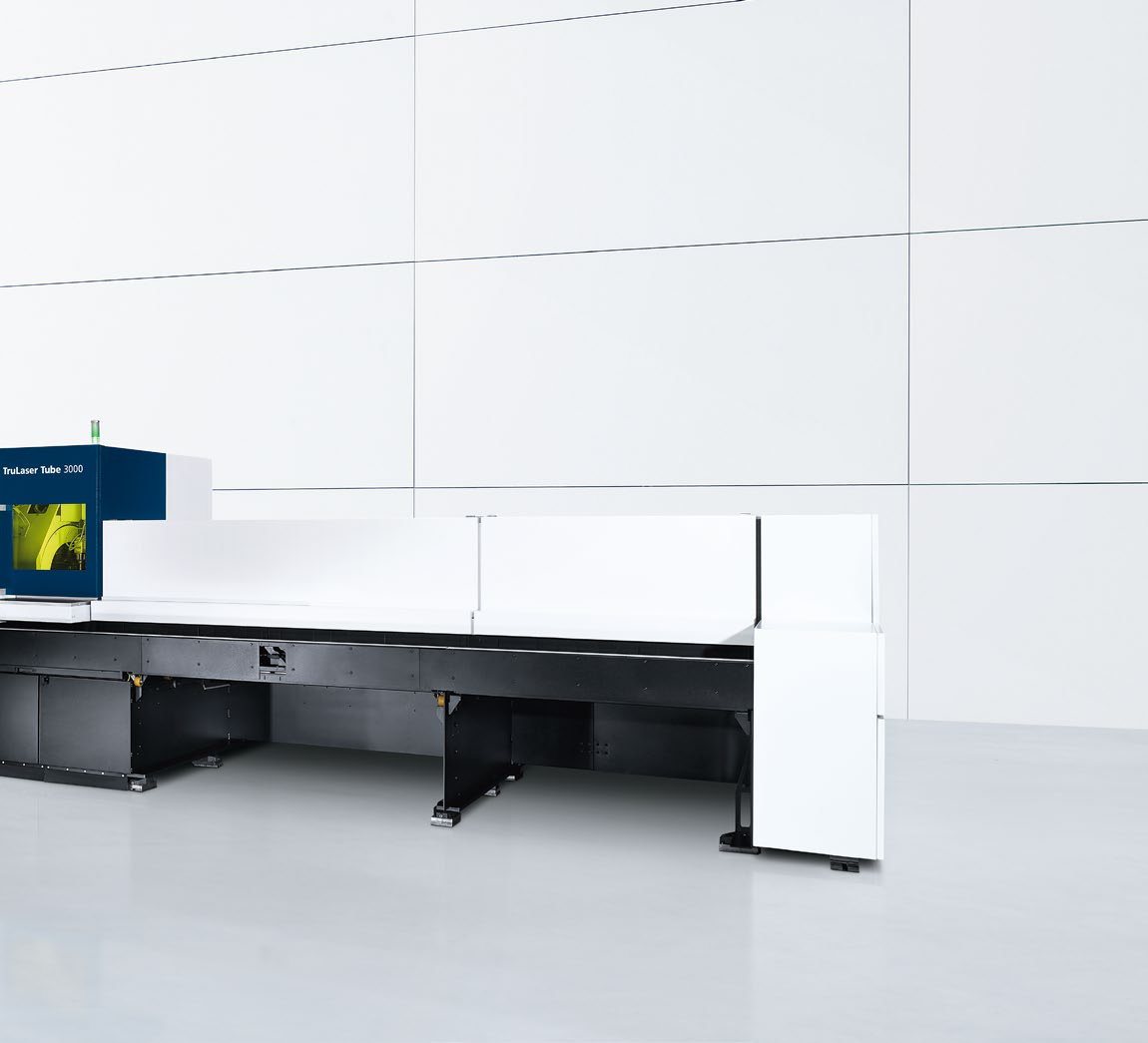

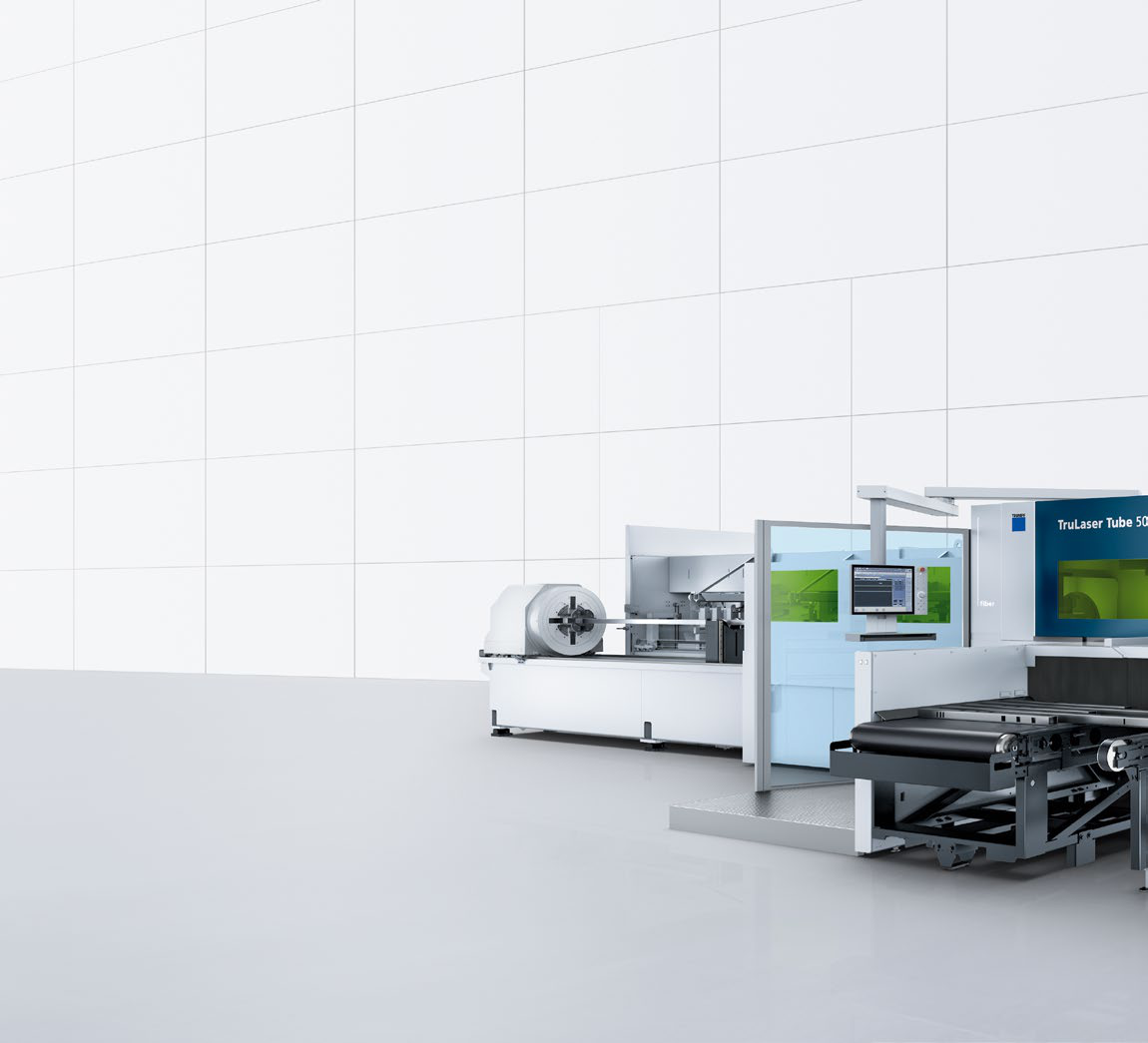

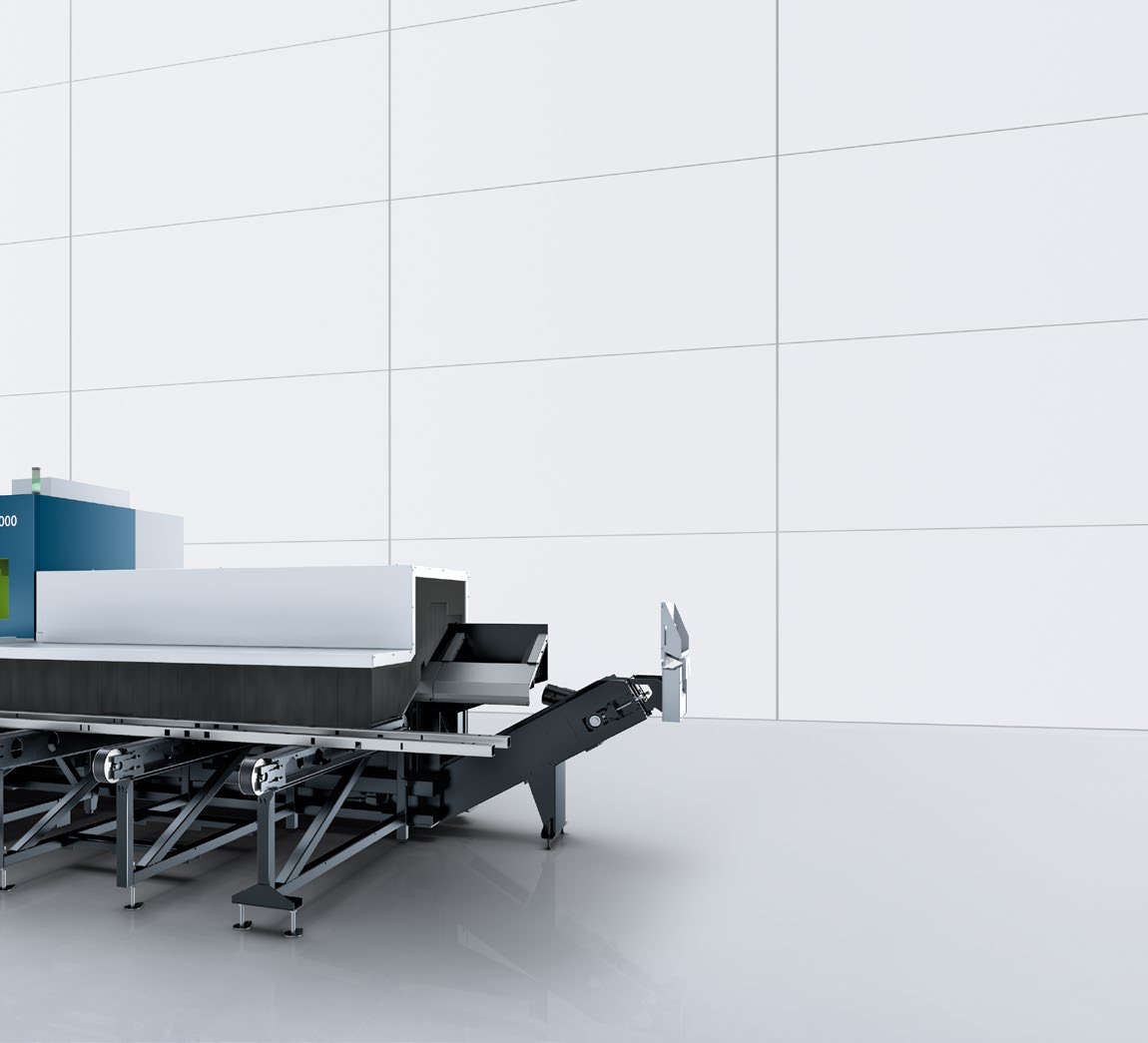

TruLaser Tube

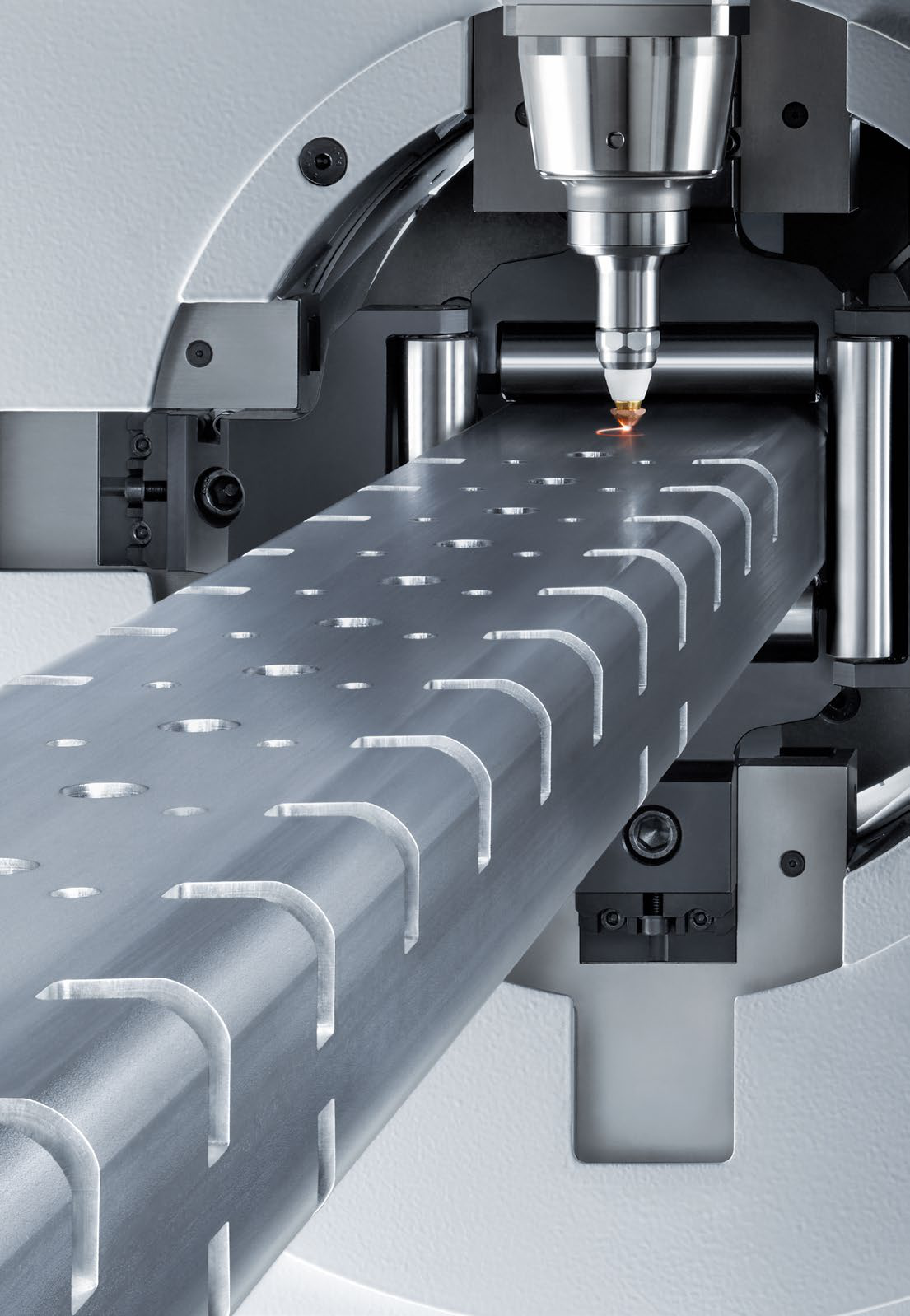

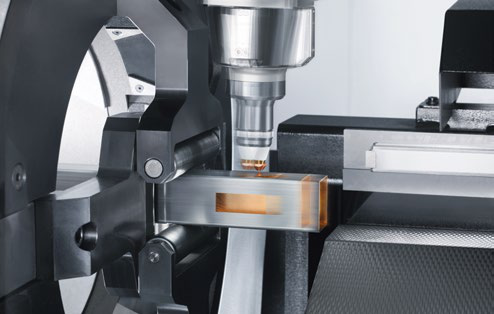

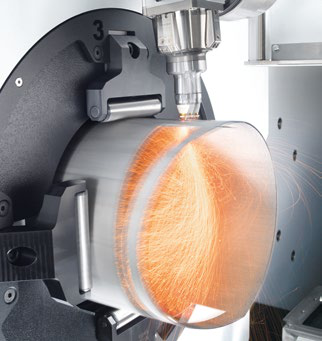

TruLaser Tube series offers advanced laser tube cutting technology, enabling precise and efficient processing of various materials such as mild steel, stainless steel, aluminum, and nonferrous metals. The machines are designed for high productivity, cost-effectiveness, and versatility.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Max Power | 2kW-6kW |
| Average Power Input | 6kW-12kW |
| Max Material Thickness (Mild Steel) | 8mm-14mm |
| Max Material Thickness (Stainless Steel) | 4mm-10mm |
| Max Material Thickness (Aluminum) | 4mm-10mm |
| Max Material Thickness (Copper/Brass) | 4mm-5mm |
| Max Outside Diameter of Round Tube | 152mm-254mm |
| Max Outer Circle Diameter of Rectangular Tube | 170mm-254mm |
| Max Unprocessed Material Length for Automatic Loading | 6500mm-12500mm |
| Max Finished Part Length | 3000mm-12500mm |
| Max Workpiece Weight | 18.5kg/m-40kg/m |
