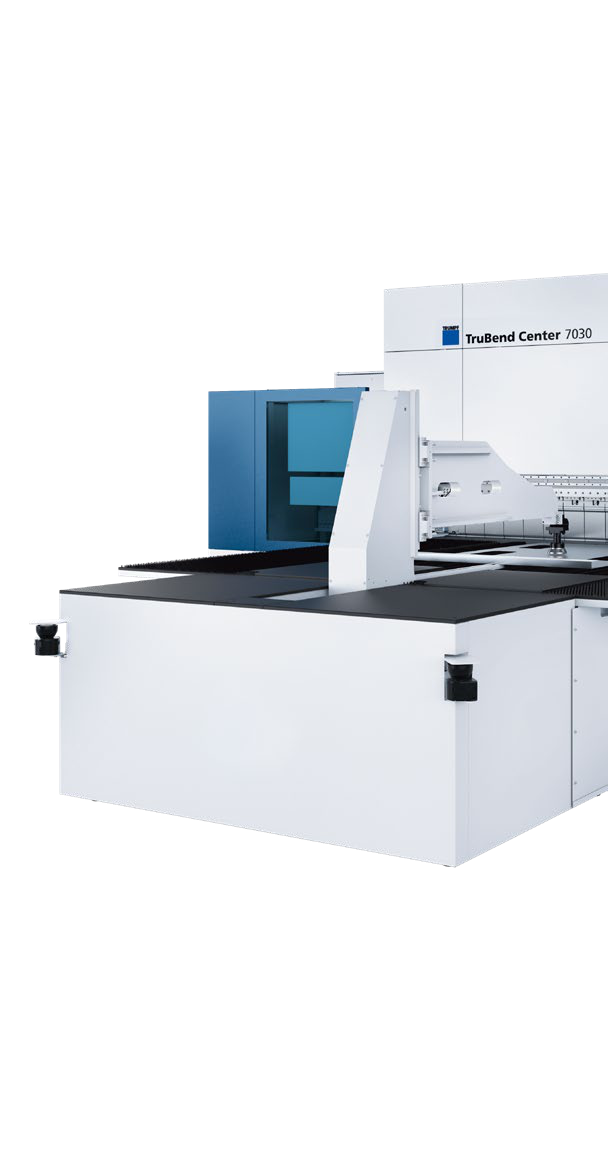

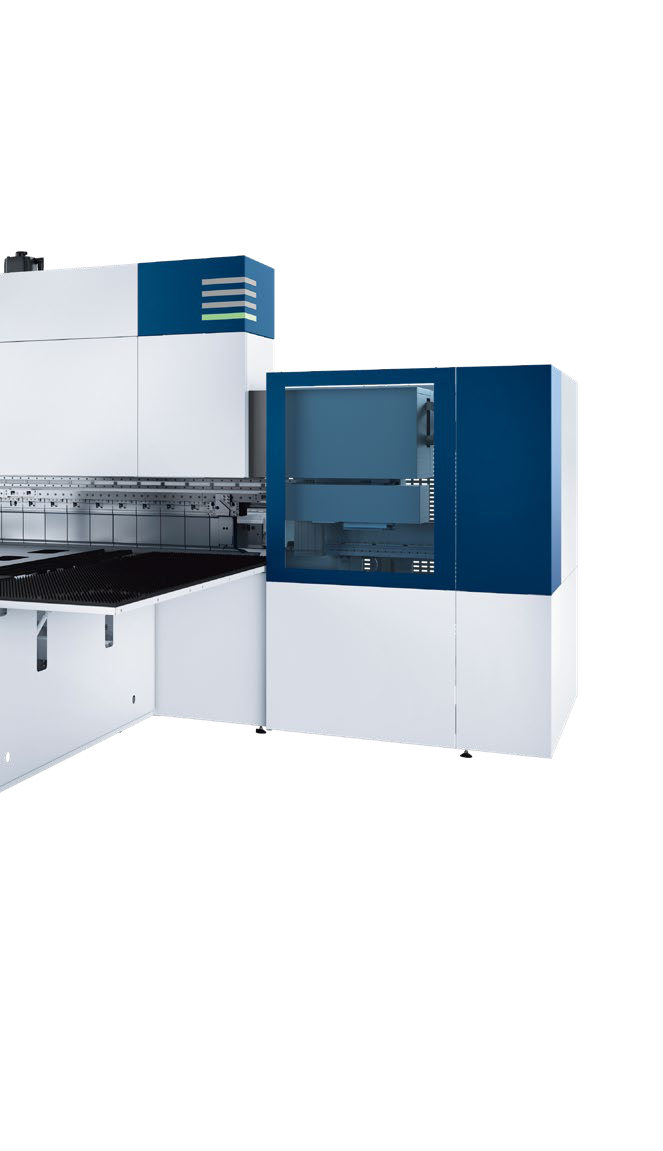

TruBend Center 7030
The TruBend Center 7030 is an automated panel bending machine designed for maximum flexibility, precision, and efficiency in sheet metal processing. It integrates seamlessly into production lines and offers advanced features for sustainable manufacturing.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Maximum Bending Capability | 3mm |
| Maximum Nesting Height | 350mm |
| Drive Technology | Low-maintenance wedge drive |
| Part Manipulator Axes | 2-axis |
| Rotation Unit | Included |
| Suction Module | 3-surface |
| Drive Type | On-Demand Servo Drive |
Applications
Key Features
Datasheet
