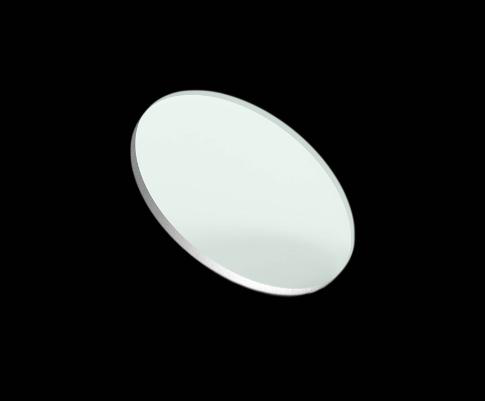

平面窗口片
Flat window pieces are precision optical components designed for various applications requiring high optical clarity and durability.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Diameter Range | 1-500mm |
| Dimension Tolerance | ±0.01-0.2mm |
| Thickness Tolerance | ±0.01-0.2mm |
| Wavelength | 1/4λ@632.8nm |
| Parallelism | <10second |
| Surface Quality | 40-20 |
| Coating | 可根据要求定制 |
| Bevel | 0.2×45°mm |
| Customization | 可按需进行定制 |
Applications
