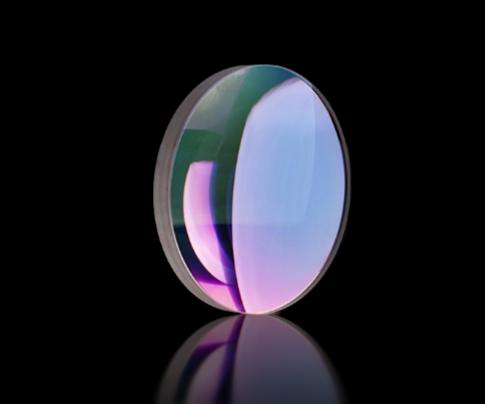

Plano-Convex Lens
Plano-convex lenses are ideal for focusing light and collimating applications. They are widely used in optical systems for imaging, laser focusing, and beam expansion.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Diameter | 25.4mm |
| Center Thickness | 3.8mm |
| Radius of Curvature | 91.1 |
| Edge Thickness | 2mm |
| Effective Focal Length | 100mm |
| Material | Fused Silica |
| Coating | Uncoated |
Applications
Key Features
Datasheet
