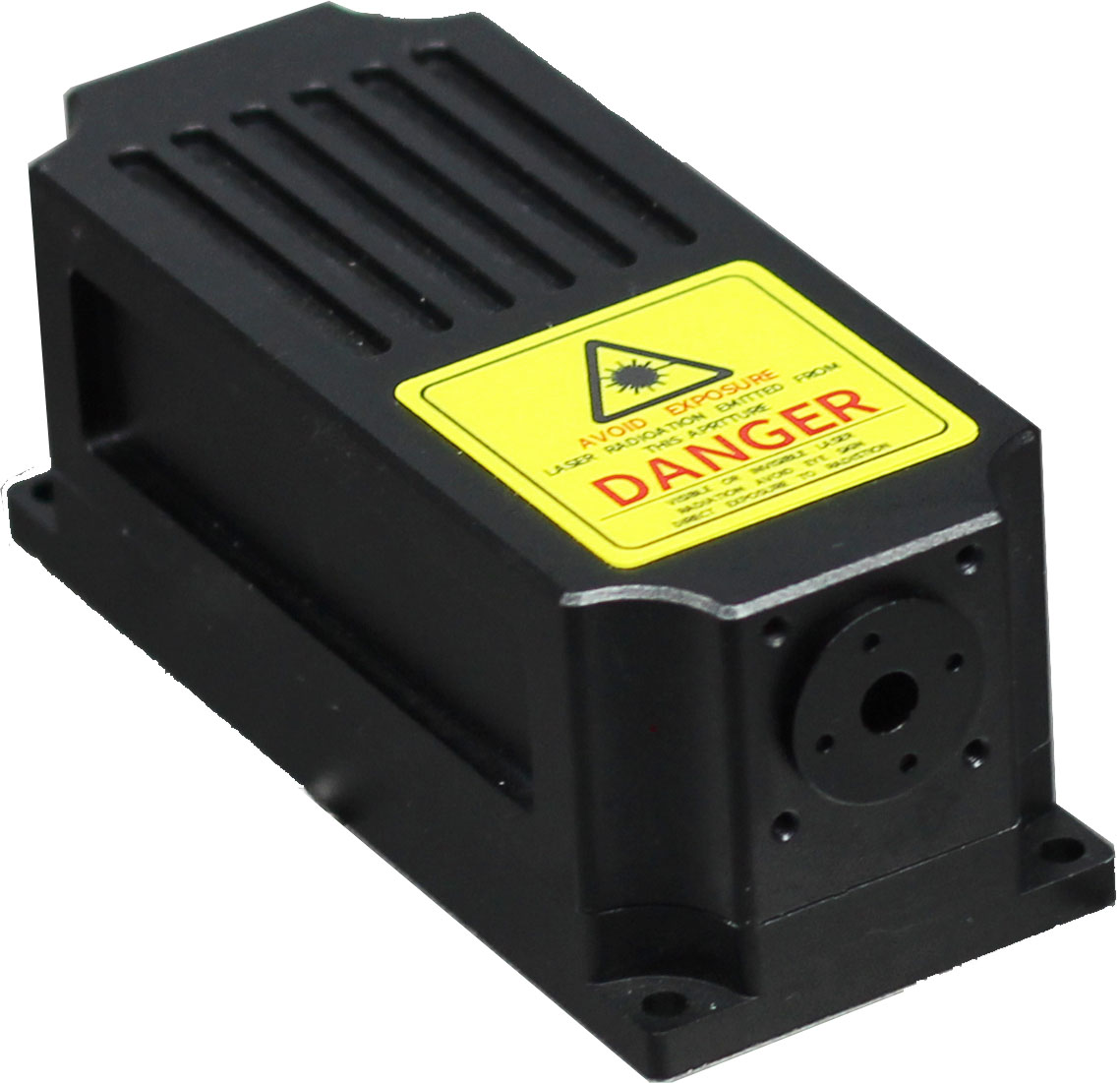

915nm Laser Module
Compact and efficient laser module designed for long-term use, offering high stability and ease of operation.
Save to Favorites
Overview
Specifications

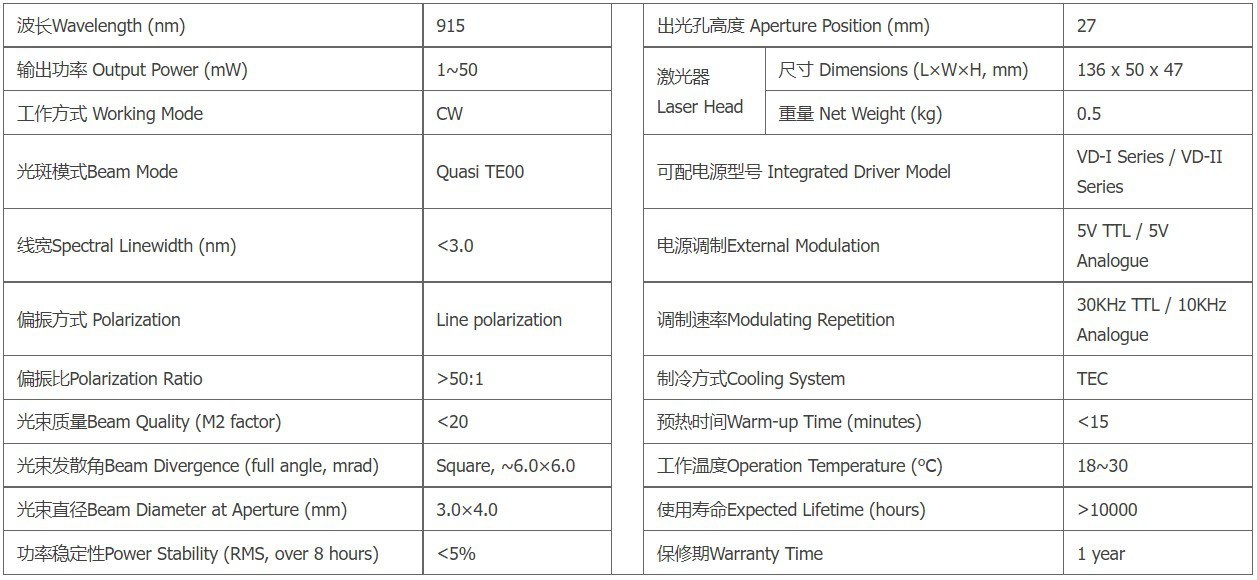

| Parameter | Value |
|---|---|
| Wavelength (nm) | 915 |
| Output Power (mW) | 1-50 |
| Working Mode | CW |
| Beam Mode | Quasi TE00 |
| Spectral Linewidth (nm) | <3.0 |
| Polarization | Line polarization |
| Polarization Ratio | >50:1 |
| Beam Quality (M2 factor) | <20 |
| Beam Divergence (full angle, mrad) | Square, <0.6×0.6 |
| Beam Diameter at Aperture (mm) | 3.0×0.4 |
| Power Stability (RMS, over 8 hours) | <5% |
| Aperture Position (mm) | 27 |

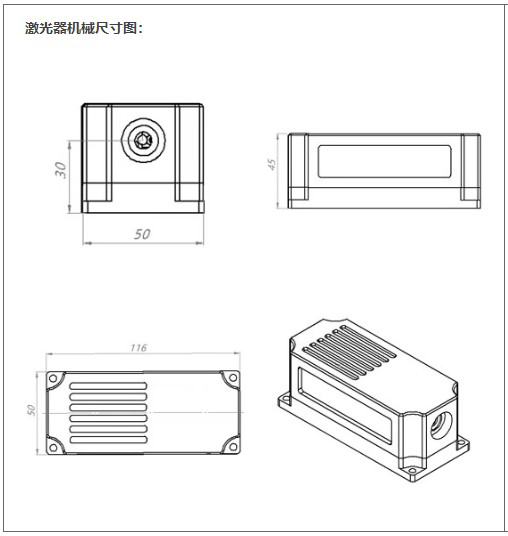

| Dimensions (L×W×H, mm) | 136×50×47 |
| Net Weight (kg) | 0.5 |

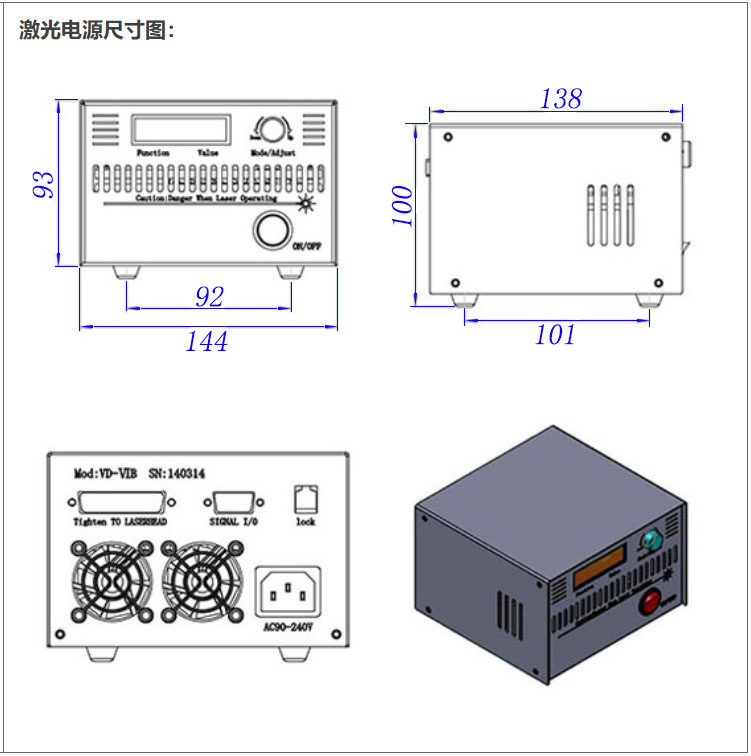

| Integrated Driver Model | VD-II Series / VD-II Series |
| External Modulation | 5V TTL / 5V Analogue |
| Modulating Repetition | 30kHz TTL / 10kHz Analogue |
| Cooling System | TEC |
| Warm-up Time (minutes) | <15 |
| Operation Temperature (°C) | 18~30 |
| Expected Lifetime (hours) | >10000 |
| Warranty Time | 1 year |
Applications
Key Features
Datasheet
