808-5 Laser Module
This laser module is compact, cost-effective, and easy to operate, making it ideal for scientific experiments, optical instruments, optical communication testing, medical applications, telecommunications, and spectrum analysis.
Save to Favorites
Overview

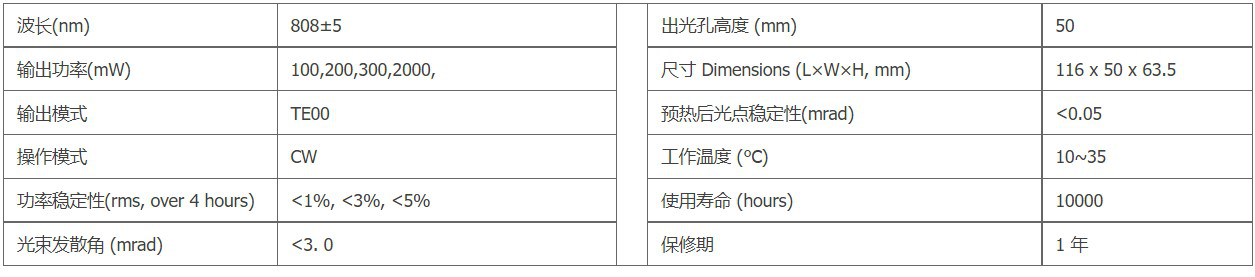

Specifications
| Parameter | Value |
|---|---|
| Wavelength (nm) | 808±5 |
| Output Power (mW) | 100,200,300,2000 |
| Output Beam Diameter (mm) | 50 |
| Dimensions (L×W×H, mm) | 116×50×63.5 |
| Power Stability after Preheating (mrad) | <0.05 |
| Operating Temperature (°C) | 10-35 |
| Lifetime (hours) | 10000 |
| Warranty | 1 year |
| Beam Divergence Angle (mrad) | <3.0 |
| Output Mode | CW |
| Operation Mode | TE00 |
| Power Stability (ms, over 4 hours) | <1%, <3%, <5% |
Applications
Key Features
Datasheet
