705nm CW Laser
The 705nm CW laser features high stability, long lifespan, and low cost, making it ideal for scientific experiments, optical instruments, optical communication, measurement, and spectrum analysis.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Wavelength (nm) | 705±10 |
| Working Mode | CW |
| Output Power (mW) | ＞1, 5, 10, 30 |
| Power Stability (rms, over 4 hours) | ＜1%, ＜2%, ＜3% |
| Transverse | Near TEM00 |
| Beam Divergence (full angle, mrad) | ＜1.0 |
| Beam Diameter at Aperture (mm) | ≈3.0 |
| Warm-up Time (minutes) | ＜10 |
| Aperture Position (mm) | 50 |
| Operation Temperature (℃) | 10~35 |
| Dimensions (L×W×H, mm) | 180×50×63.5 |

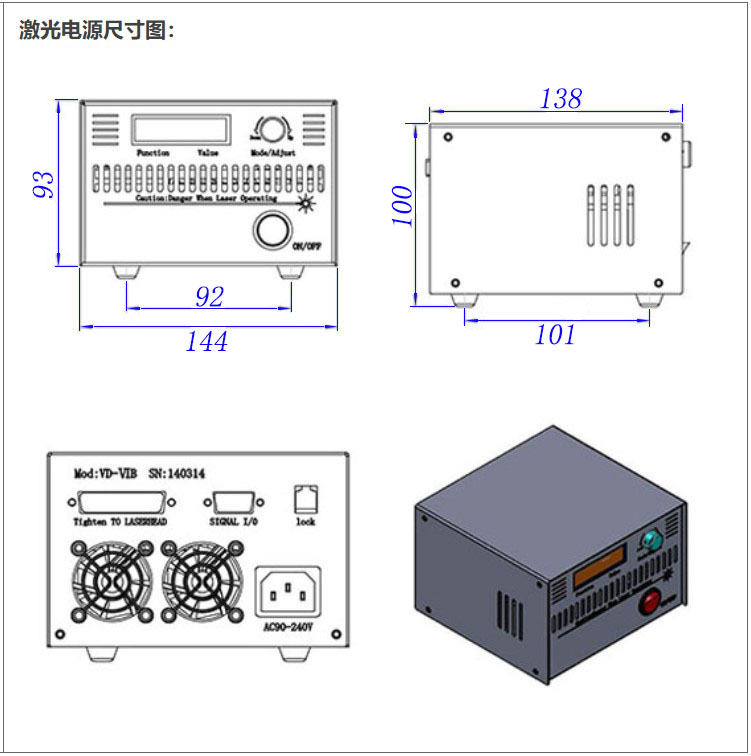

| External Modulation | VD-VIB |
| Expected Lifetime (hours) | 10000 |
| Warranty Time | 1 year |
Applications
Key Features
Datasheet
Supplier Information
