671nm Laser Module
This laser module offers stable power output and adjustable current. It is equipped with overcurrent protection and external modulation control, making it suitable for various applications.
Save to Favorites
Overview

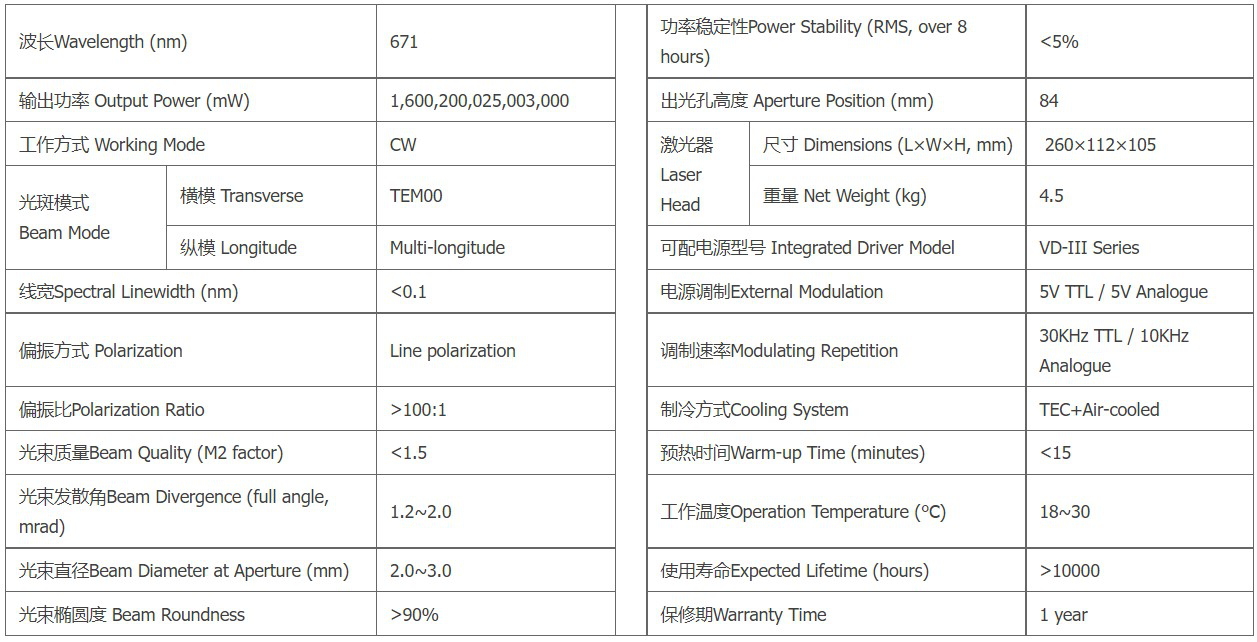

Specifications
| Parameter | Value |
|---|---|
| Wavelength (nm) | 671nm |
| Spectral Linewidth (nm) | <0.1nm |
| Polarization | Line polarization |
| Polarization Ratio | >100:1 |
| Beam Quality (M2 factor) | <1.5 |
| Beam Divergence (full angle) | 1.2~2.0 |
| Beam Diameter at Aperture (mm) | 2.0~3.0mm |
| Beam Roundness | >90% |
| Power Stability (RMS, over 8 hours) | <5% |
| Aperture Position (mm) | 84mm |

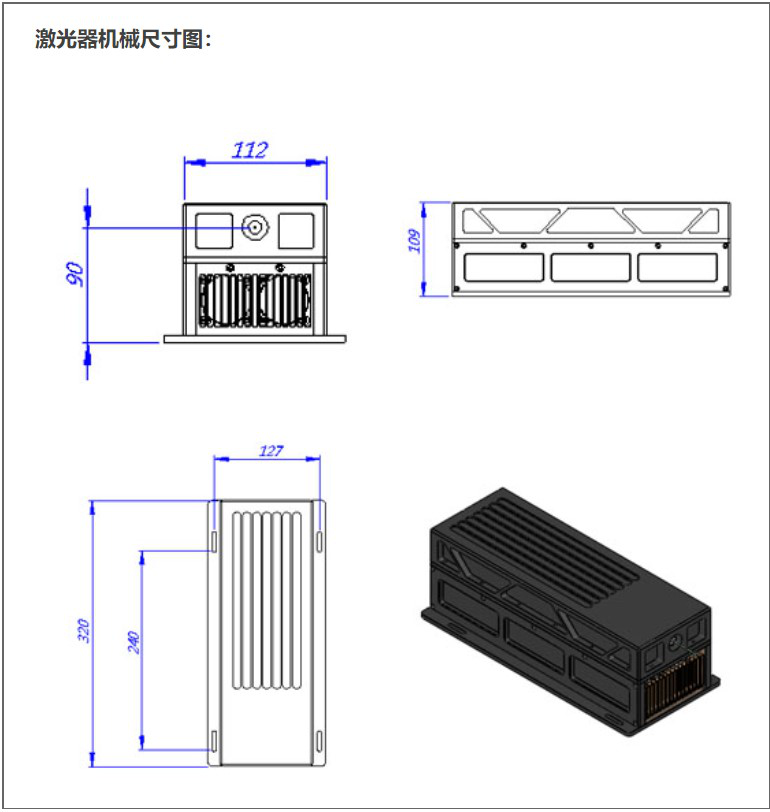

| Dimensions (L×W×H, mm) | 204×112×105W |
| Laser Net Weight (kg) | <4.5kg |

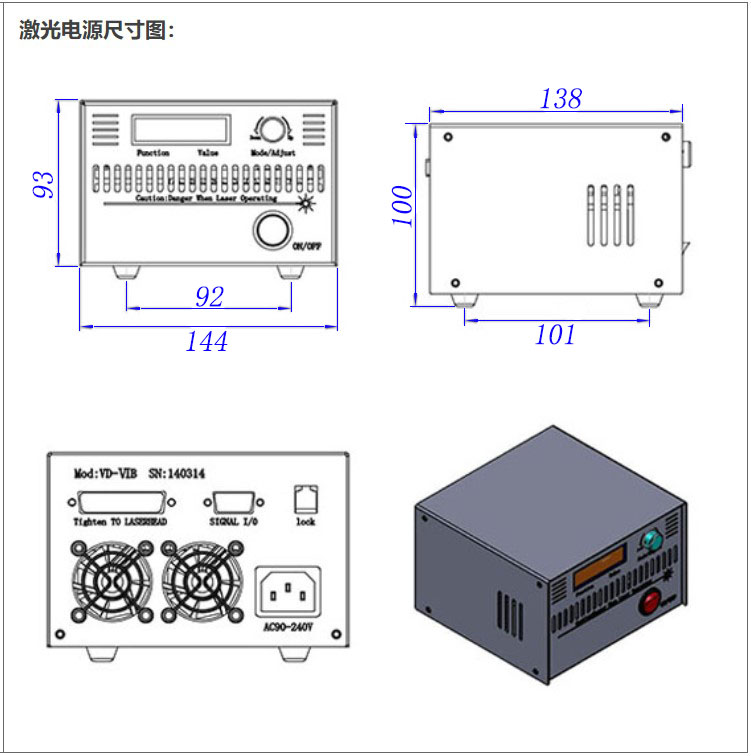

| Integrated Driver Model | VD-II Series |
| External Modulation Mode | TTL/5V/Analogue |
| Modulating Repetition | 300kHz TTL, 10kHz Analogue |
| Warm-up Time (minutes) | <15 |
| Operating Temperature (°C) | 18~30°C |
| Expected Lifetime (hours) | >10000 |
| Warranty Time | 1 year |
