637nm Laser Module
This laser module features stable power output, adjustable current, and external modulation control. It is designed for scientific research, medical applications, biological engineering, stage lighting, laser cutting, and precision welding.
Save to Favorites
Overview

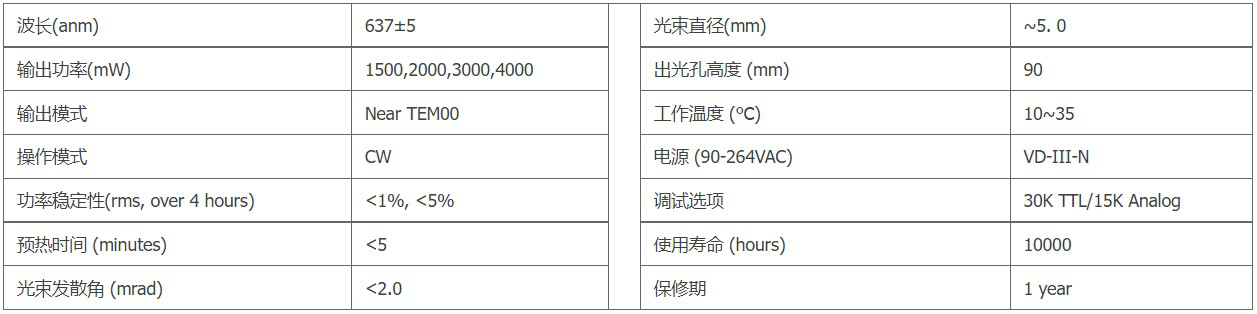

Specifications
| Parameter | Value |
|---|---|
| Wavelength (nm) | 637±5 |
| Beam Diameter (mm) | +5.0 |
| Output Power (mW) | 1500,2000,3000,4000 |
| Output Mode | Near TEM00 |
| Operation Mode | CW |
| Power Stability (4 hours) | <1%,<5% |
| Warm-up Time (minutes) | <5 |
| Beam Divergence (mrad) | <2.0 |
| Output Angle (°) | 90 |
| Operating Temperature (°C) | 10-35 |
| Power Supply | 90-264VAC |
| Modulation | 30k TTL/15k Analog |
| Lifetime (hours) | 10000 |
| Warranty | 1 year |
