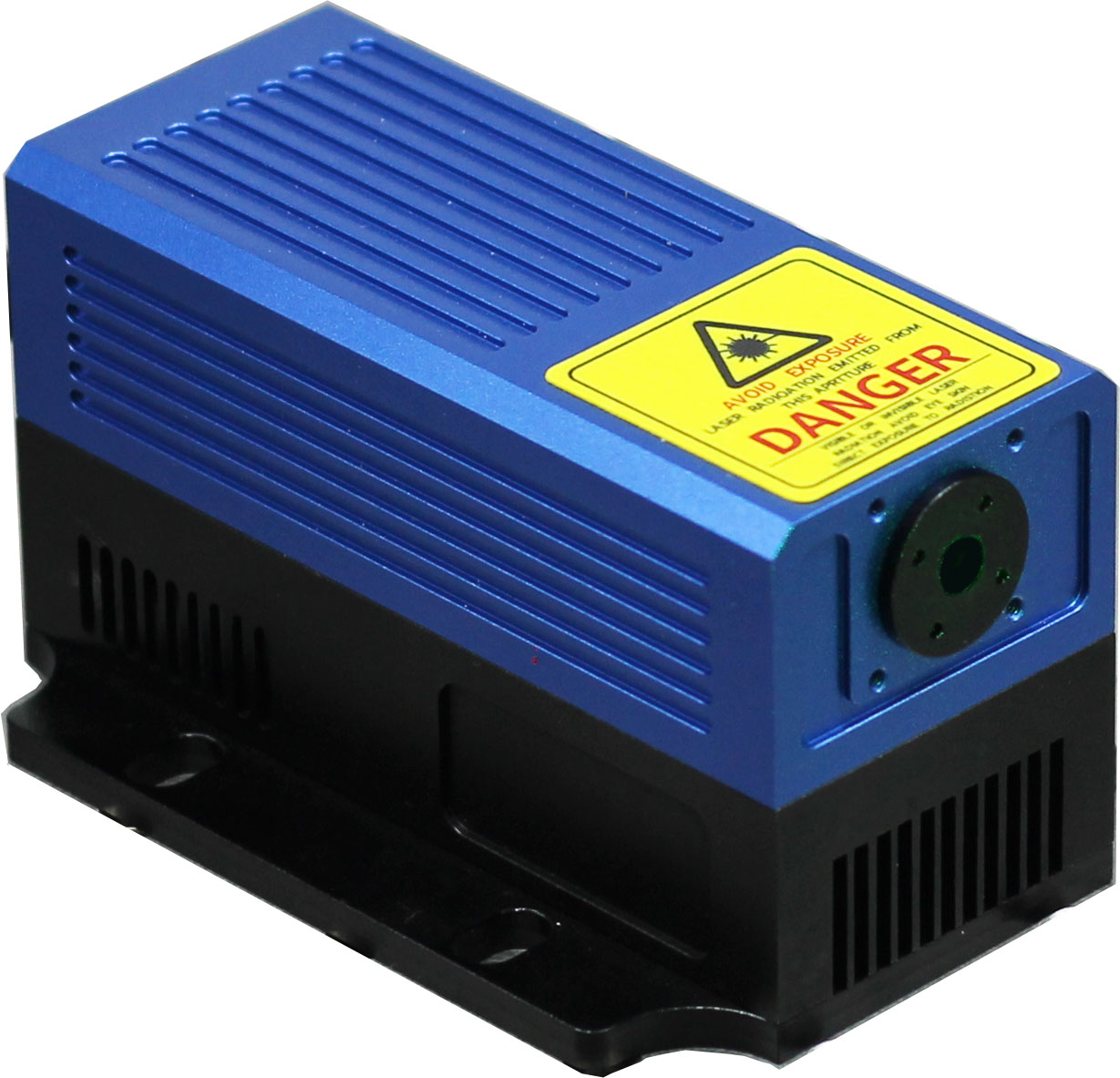

633nm CW Laser
This 633nm CW laser is a cost-effective and user-friendly solution designed for applications such as scientific experiments, optical instruments, optical fiber testing, measurement, communication, and spectrum analysis.
Save to Favorites
Overview
Specifications

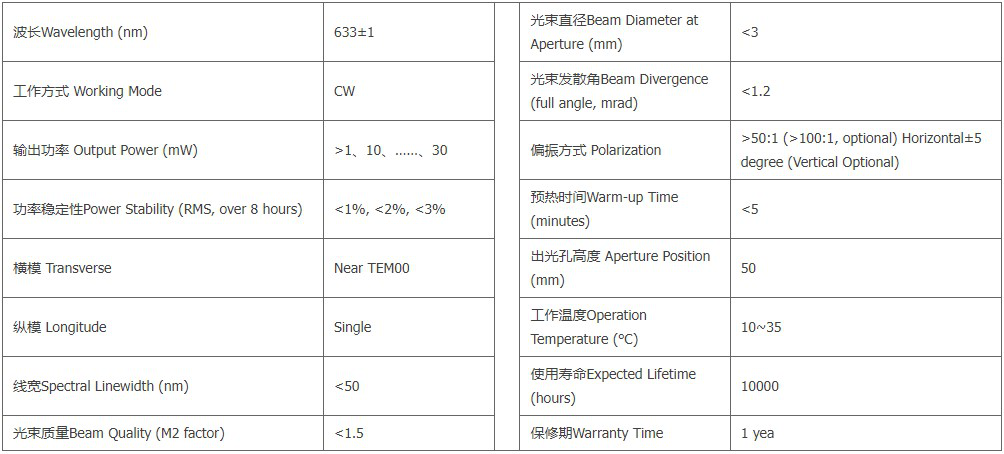

| Parameter | Value |
|---|---|
| Wavelength (nm) | 633±1 |
| Working Mode | CW |
| Output Power (mW) | >1, 10, 20 |
| Power Stability (RMS, over 8 hours) | <1%, <2%, <3% |
| Transverse | Near TEM00 |
| Longitudinal | Single |
| Spectral Linewidth (nm) | <50 |
| Beam Quality (M2 factor) | <1.5 |
| Beam Diameter at Aperture (mm) | <3 |
| Beam Divergence (full angle, mrad) | <1.2 |
| Polarization | >50:1 (>100:1 optional) Horizontals degree (Vertical optional) |
| Warm-up Time (minutes) | <5 |
| Aperture Position (mm) | ±0.5 |
| Operation Temperature (°C) | 10~35 |
| Expected Lifetime | 10000 |
| Warranty Time | 1 year |
