457nm CW Laser
The 457nm CW laser is a high-performance laser designed for precision applications, offering stable power output and advanced features.
Save to Favorites
Overview

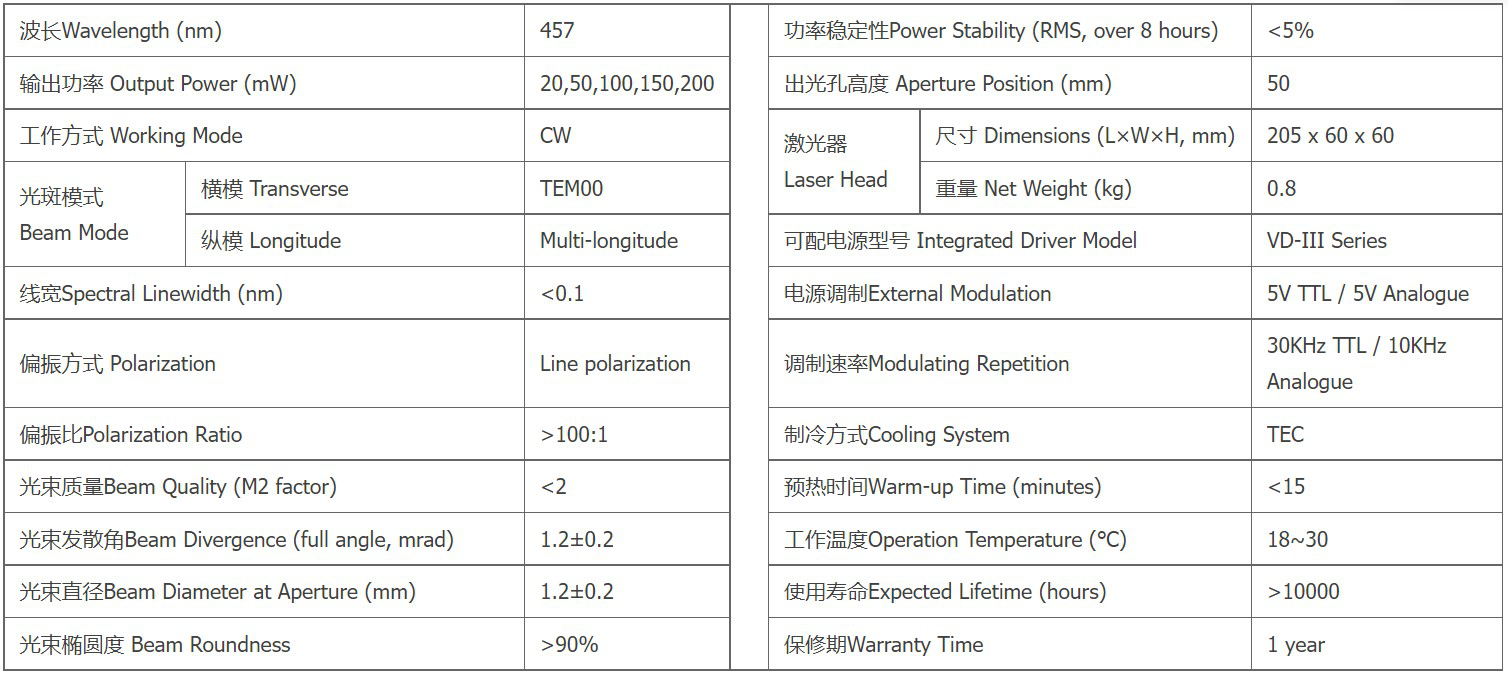

Specifications
| Parameter | Value |
|---|---|
| Wavelength (nm) | 457nm |
| Spectral Linewidth (nm) | <0.1nm |
| Polarization | Line polarization |
| Polarization Ratio | >100:1 |
| Beam Quality (M2 factor) | <2 |
| Beam Divergence (full angle, mrad) | <0.4 |
| Beam Diameter at Aperture (mm) | 1.2±0.2mm |
| Beam Roundness | >90% |
| Power Stability (RMS, over 8 hours) | <5% |
| Aperture Position (mm) | 50mm |
| Dimensions (L×W×H, mm) | 205×60×60W |
| Laser Head Net Weight (kg) | 0.8kg |
| Integrated Driver Model | VB-III Series |
| External Modulation | 5V TTL/5V Analogue |
| Modulating Repetition | 30kHz TTL/10kHz Analogue |
| Warm-up Time (minutes) | <15 |
| Operation Temperature (°C) | 18~30°C |
| Expected Lifetime (hours) | >10000 |
| Warranty Time | 1 year |
Applications
Key Features
Datasheet
