355nm UV Laser
The 355nm UV laser features compact design, long lifespan, high cost-performance ratio, and stable operation.
Save to Favorites
Overview
Specifications

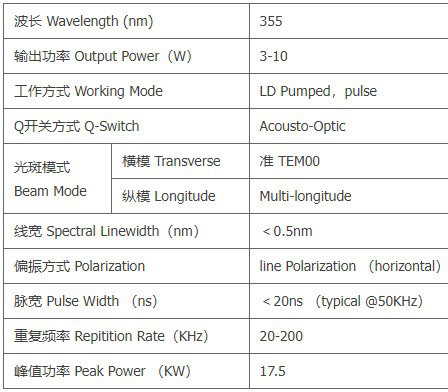

| Parameter | Value |
|---|---|
| Wavelength (nm) | 355nm |
| Output Power (W) | 3-10W |
| Working Mode | LD Pumped |
| Working Mode | pulse |
| Q-Switch | Acousto-Optic |
| Beam Mode Transverse | 准TEM00 |
| Beam Mode Longitude | Multi-longitude |
| Spectral Linewidth (nm) | <0.5nm |
| Polarization | line Polarization (horizontal) |
| Pulse Width (ns) | <20ns (typical @50kHz) |
| Repetition Rate (kHz) | 20-200kHz |
| Peak Power (kW) | 17.5kW |

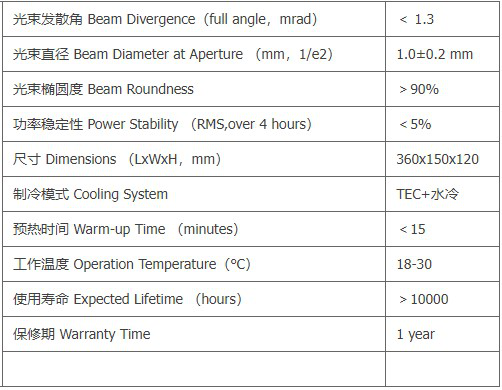

| Beam Divergence (full angle, mrad) | <1.3 |
| Beam Diameter at Aperture (mm, 1/e2) | 1.0±0.2 |
| Beam Roundness | >90% |
| Power Stability (rms, over 4 hours) | <5% |
| Dimensions (LxWxH, mm) | 360x150x120mm |
| Warm-up Time (minutes) | <15 |
| Operation Temperature (°C) | 18-30°C |
| Expected Lifetime (hours) | 10000 |
| Warranty Time | 1 year |
Applications
Key Features
Datasheet
