Laser
This laser module features adjustable focus, compact design, and high performance, suitable for various optical applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Wavelength Error | ±10nm |
| Power (mW) | 0.5W/1.6W |
| Light Type | 点 |
| Laser Drive Mode | CW/TTL |
| Operating Voltage (V) | 12v |
| Operating Current (mA) | <4500mA |

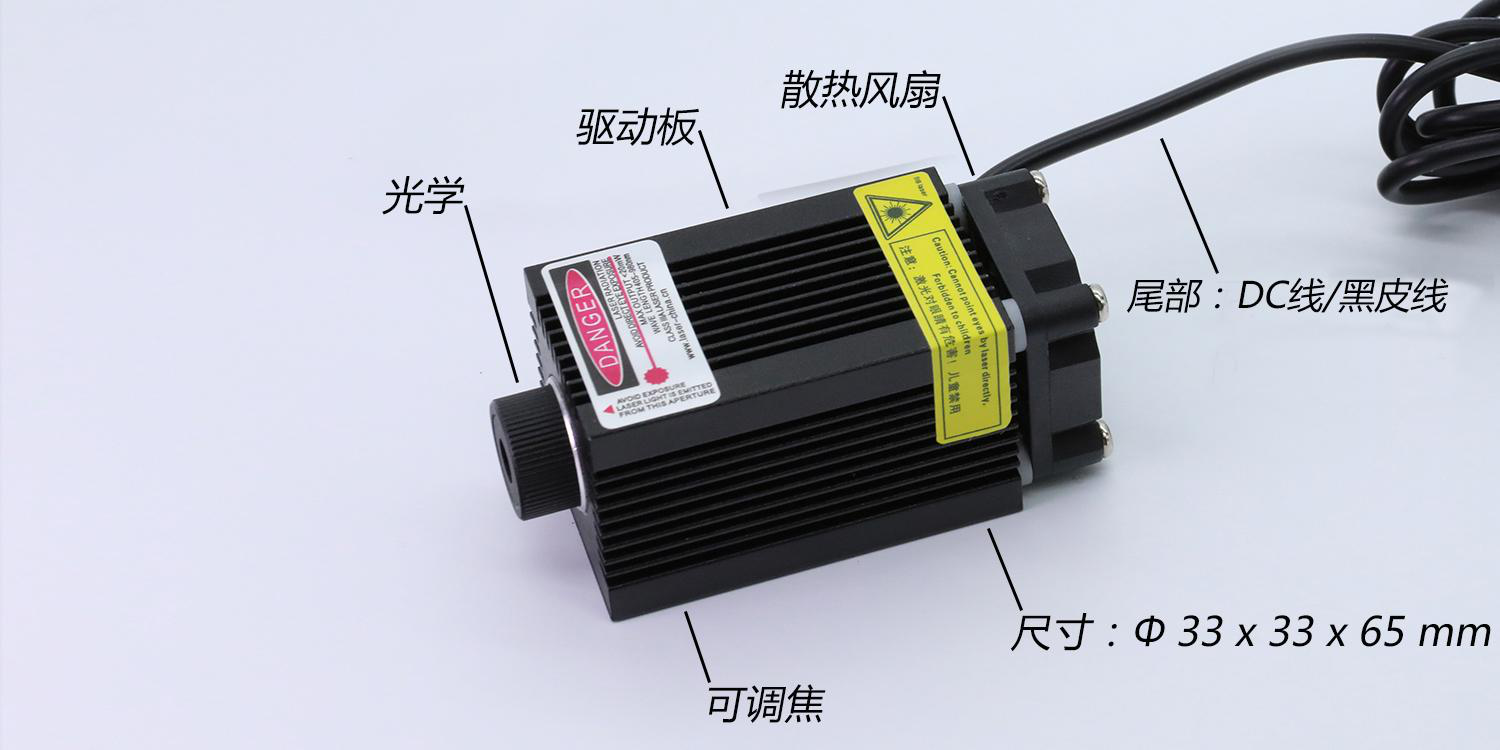

| Tail Line | DC线/黑皮线 |
| Protection | 防反接，抗干扰 |

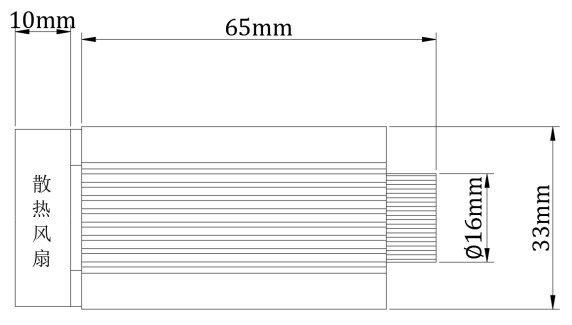

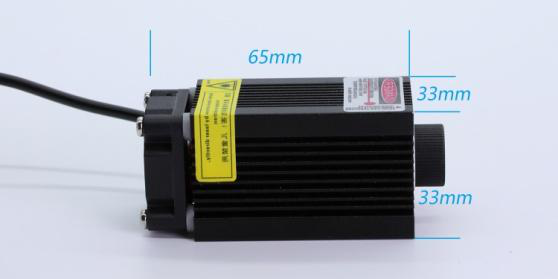

| Dimensions (mm) | 33(L)×33(W)×65(H)mm |
| Storage Temperature | -40~85°C (常规) |
| Lifetime | ≥8000小时 |
Applications
Key Features
Datasheet
Supplier Information
