Adjustable Focus Laser Module

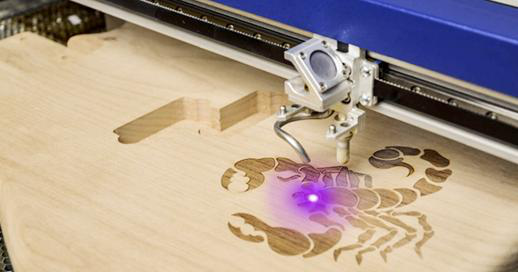

This adjustable focus laser module is designed for precision applications, featuring a compact design and high performance. It is suitable for engraving, cutting, and alignment tasks.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Wavelength Error | ±10nm |
| Power (mW) | 0.5W/1.6W |
| Light Type | Point |
| Laser Drive Mode | CW/TTL |
| Operating Voltage (V) | 12v |
| Operating Current (mA) | <4500mA |
| Tail Line | DC line/black leather line |
| Protection | Anti-reflection, anti-dry burning |

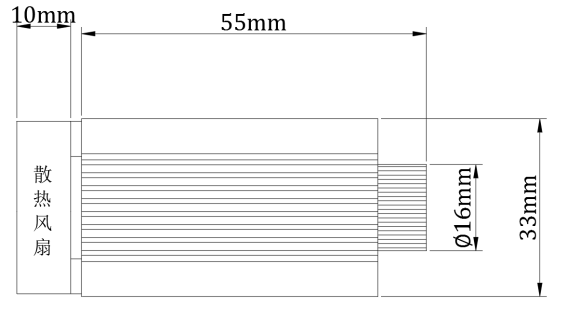

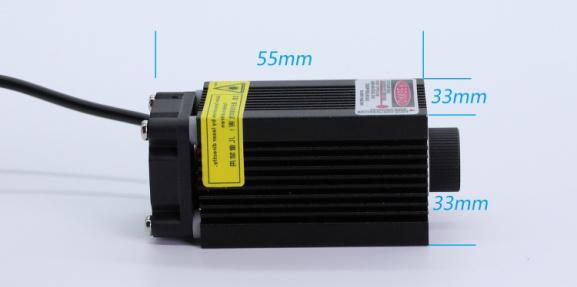

| Dimensions (mm) | 33(L)×33(W)×55(H)mm |
| Storage Temperature | -40~85°C (normal) |
| Service Life | ≥8000 hours |
Applications
