DSV Series Machine Vision Structured Light Source
The DSV series machine vision structured light source is designed for high uniformity, brightness, and stability, making it ideal for 3D machine vision and 3D wheel scanning applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Center Wavelength | 450±10nm |
| Output Power | 500mW±10% |
| Angle | 30°±1°×70°±3° |
| Working Distance | 320±20mm |
| Line Width | ≤150μm |

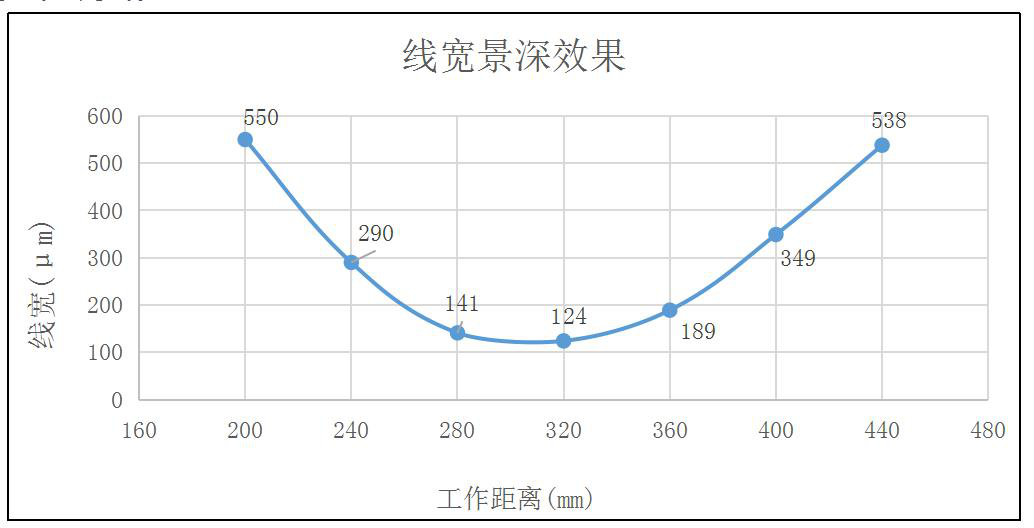

| Line Width Depth | 线宽≤600μm@320±120mm |
| Single Line Uniformity | ≥70% |

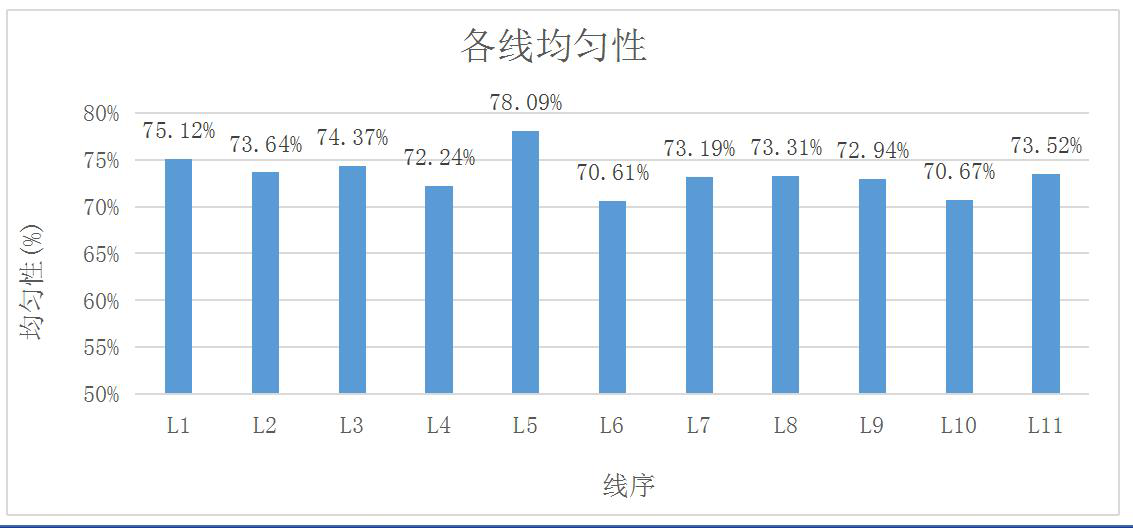

| Each Line Uniformity | ≥75% |
| Working Voltage | 12V±5% |
| Drive Mode | ACC constant current drive |
| Working Current | ≤500mA |
| TTL Switch | 12V, high level effective |
| TTL Switch Frequency | ≤15kHz |
| TTL Switch Speed | Rise time≤5μs, fall time≤5μs |
| Tail Line Specifications | UL3239#24AWG, red, black, blue three-color wire |
| Tail Line Definition | Red: DC12V+, Black: GND, Blue: TTL+ |
| Operating Temperature | -10°C~60°C |
| Storage Temperature | -20°C~100°C |
| Environmental Humidity | <90% |

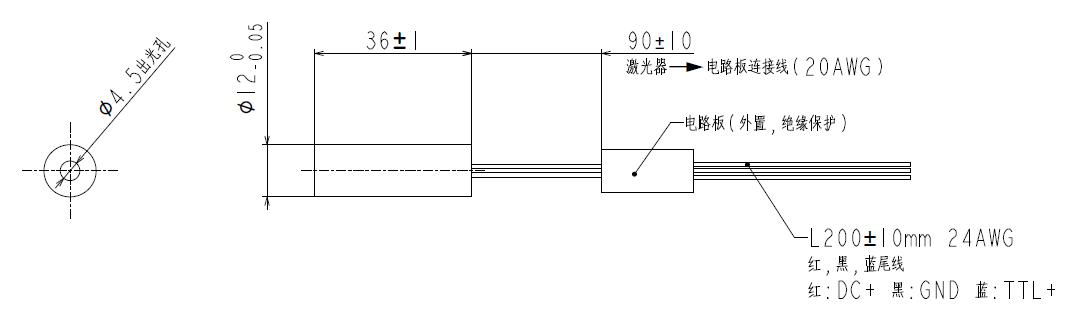

| Structural Parameters | φ12.0±0.05mm, length 36±1mm, cable length 200±10mm |
