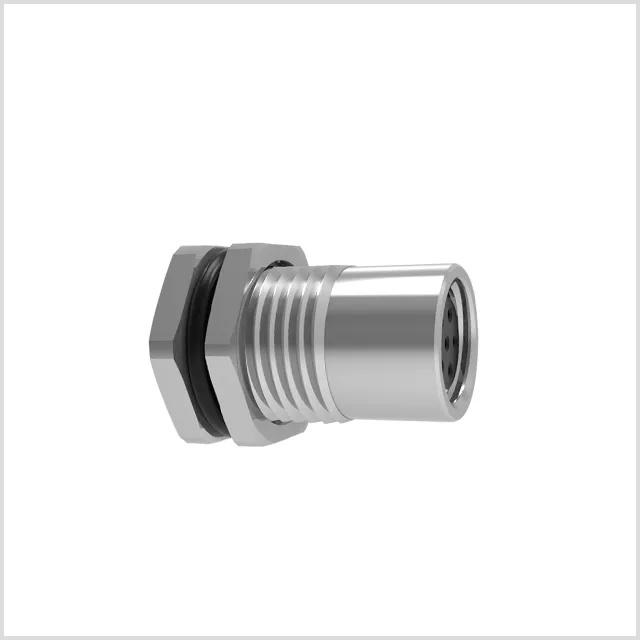

Circular Connector
This circular connector is designed for reliable electrical connections in various industrial applications. It features multiple pin configurations and robust materials for enhanced durability.
Save to Favorites
Overview

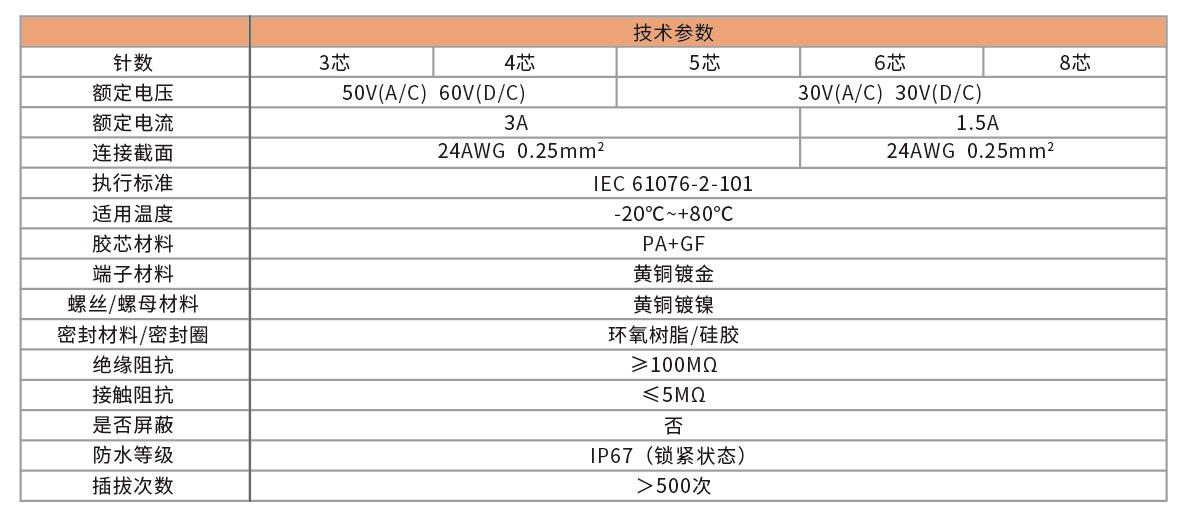

Specifications
| Parameter | Value |
|---|---|

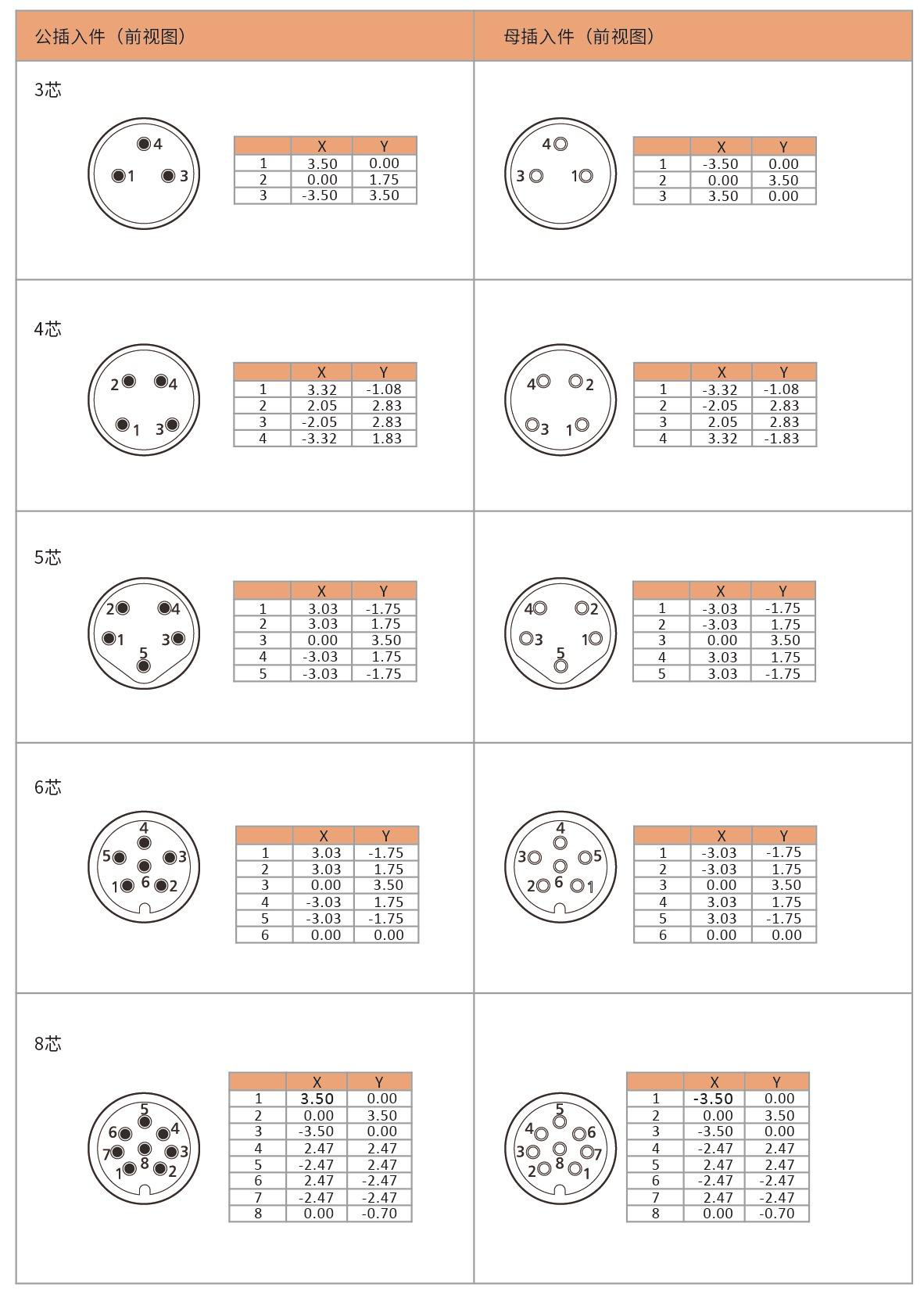

| Number of Pins | 3, 4, 5, 6, 8 |
| Rated Voltage | 50V(A/C), 60V(D/C) for 3 and 4 pins; 30V(A/C), 30V(D/C) for 5, 6, and 8 pins |
| Rated current | 3A for 3 and 4 pins; 1.5A for 5, 6, and 8 pins |
| Connection Cross-Section | 24AWG 0.25mm² |
| Standard | IEC 61076-2-101 |
| Operating Temperature | -20°C~+80°C |
| Core Material | PA+GF |
| Terminal Material | Brass with gold plating |
| Screw/Nut Material | Brass with gold plating |
| Sealing Material/Sealing Ring | Epoxy resin/silicone |
| Insulation Resistance | >100MΩ |
| Contact Resistance | ≤5MΩ |
| Shielding | No |
| Waterproof Rating | IP67 (locked state) |
| Mating Cycles | >500 times |
Applications
Key Features
Datasheet
