Multi-Pin Connector
A high-performance multi-pin connector designed for various industrial applications, offering reliable electrical connections and robust mechanical properties.
Save to Favorites
Overview

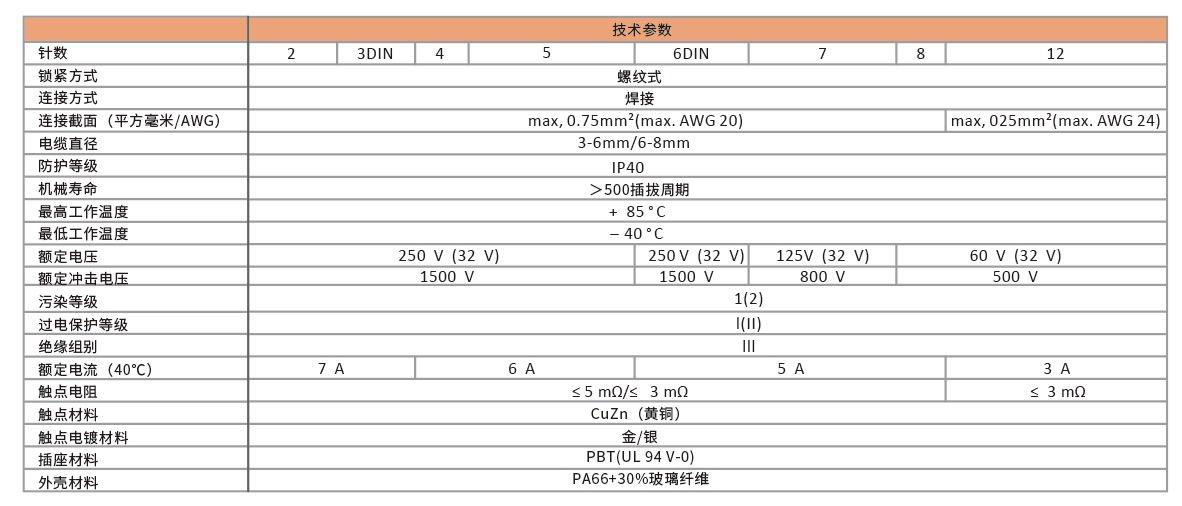

Specifications
| Parameter | Value |
|---|---|

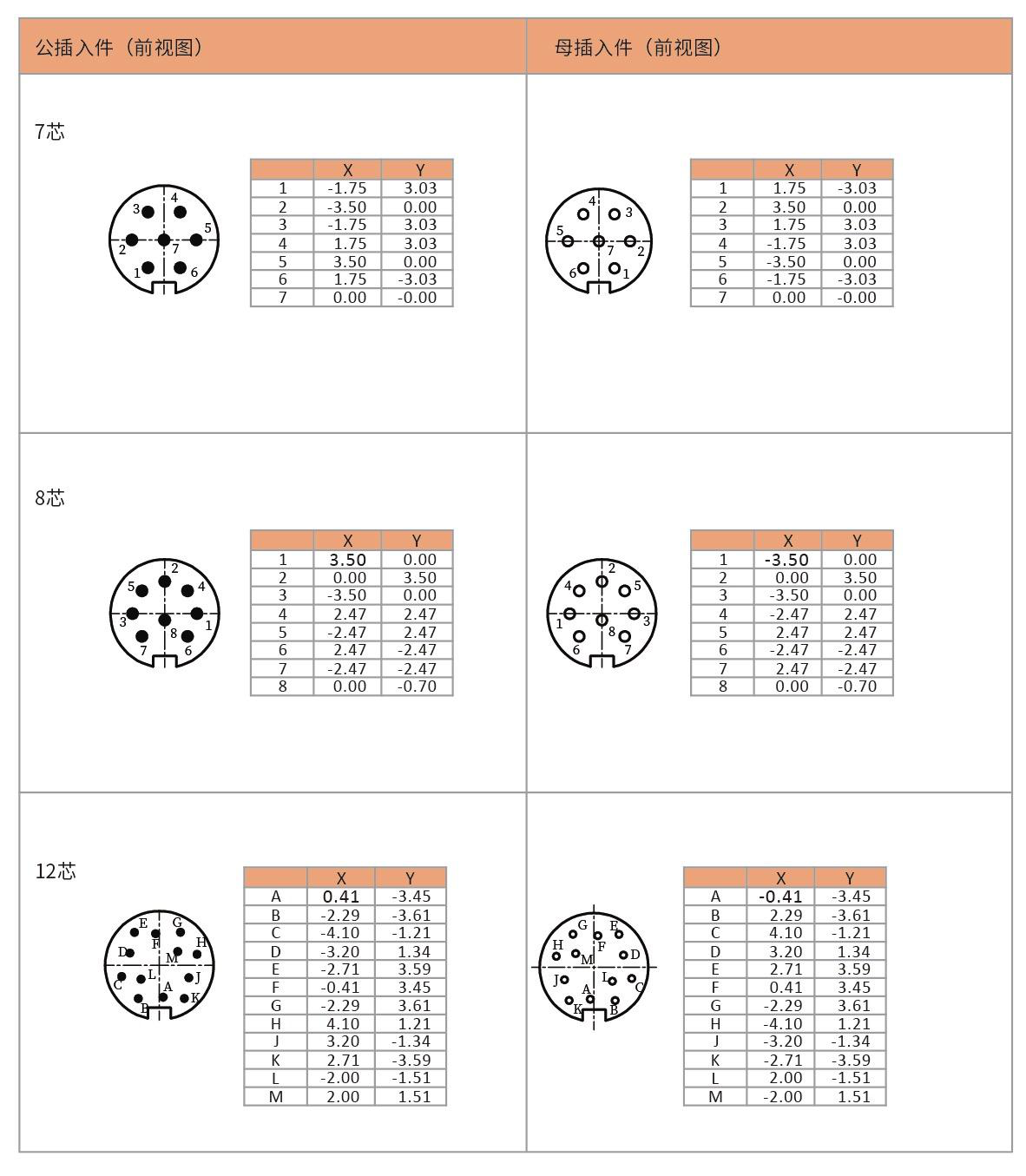

| Number of Pins | 2, 3DIN, 4, 5, 6DIN, 7, 8, 12 |
| Locking Method | 螺纹式 |
| Connection Method | 焊接 |
| Connection Cross-Section (mm²/AWG) | max. 0.75mm²(max. AWG 20), max. 0.25mm²(max. AWG 24) |
| Cable Diameter | 3-6mm/6-8mm |
| Protection Level | IP40 |
| Mechanical Life | ＞500插拔周期 |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -40°C |
| Rated Voltage | 250V (32V), 125V (32V), 60V (32V) |
| Rated Impulse Voltage | 1500V, 800V, 500V |
| Pollution Degree | 1(2), I(II), III |
| Overvoltage Protection Level | II |
| Rated Current (40°C) | 7A, 6A, 5A, 3A |
| Contact Resistance | ≤5mΩ, ≤3mΩ |
| Contact Material | CuZn (黄铜) |
| Contact Plating Material | 金/银 |
| Socket Material | PBT(UL 94-V-0) |
| Housing Material | PA66+30%玻璃纤维 |
