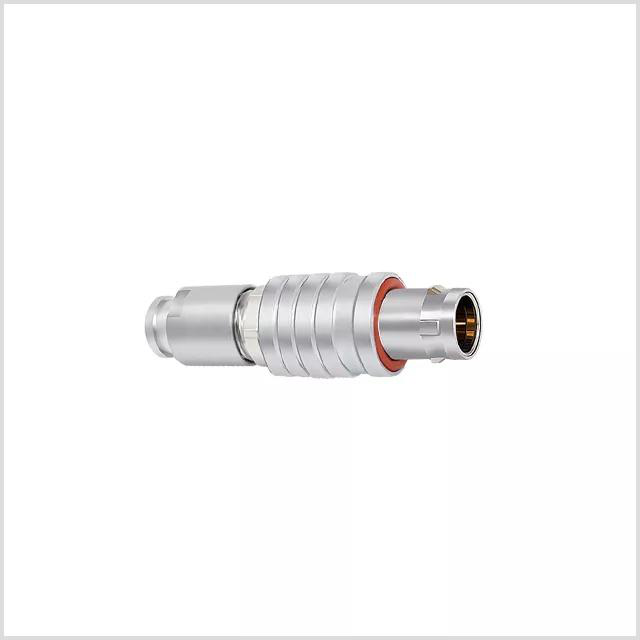

FEG Series Circular Connectors
FEG series circular connectors are designed for high-performance applications, offering reliable connections in harsh environments.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|

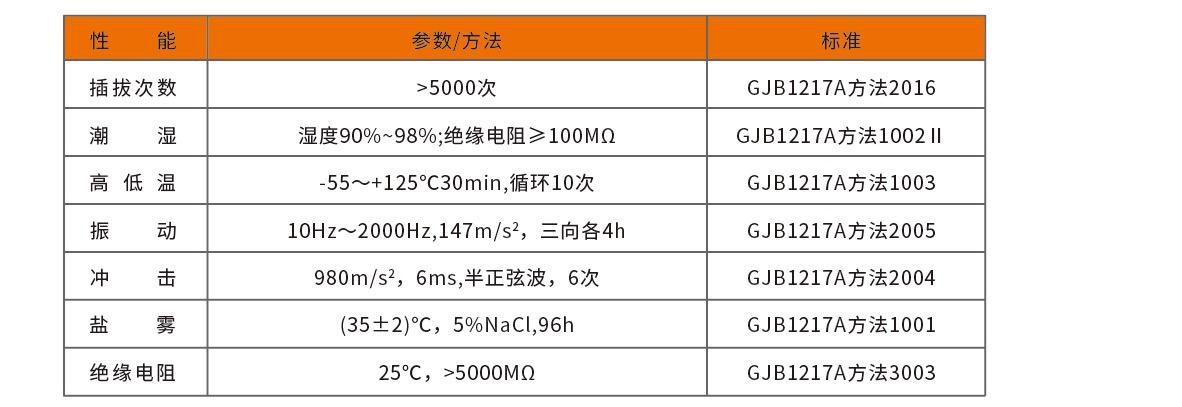

| Insertion Cycles | ＞5000次 |
| Humidity | 湿度90%~98%;绝缘电阻≥100MΩ |
| High and Low Temperature | -55~125°C30min,循环10次 |
| Vibration | 10Hz~2000Hz,147m/s²,三向各4h |
| Shock | 980m/s²,6ms,半正弦波,6次 |
| Salt Spray | (35±2)°C,5%NaCl,96h |
| Insulation Resistance | 25°C,＞5000MΩ |

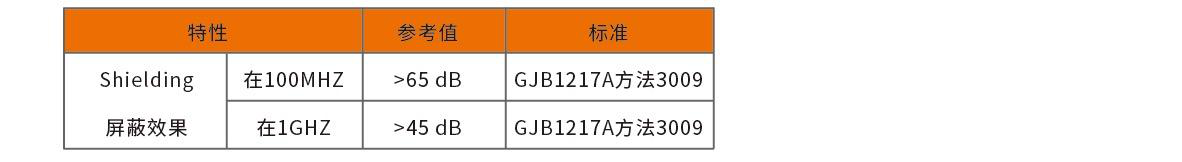

| Shielding Effectiveness at 100MHz | >65dB |
| Shielding Effectiveness at 1GHz | >45dB |

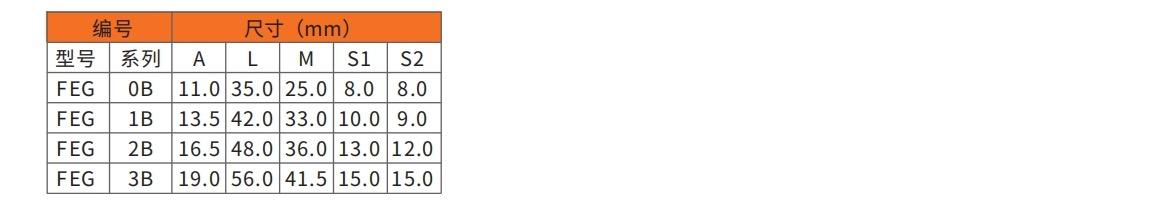

| Dimension A (mm) | 11.0, 13.5, 16.5, 19.0 |
| Dimension L (mm) | 35.0, 42.0, 48.0, 56.0 |
| Dimension M (mm) | 25.0, 33.0, 36.0, 41.5 |
| Dimension S1 (mm) | 8.0, 10.0, 13.0, 15.0 |
| Dimension S2 (mm) | 8.0, 9.0, 12.0, 15.0 |

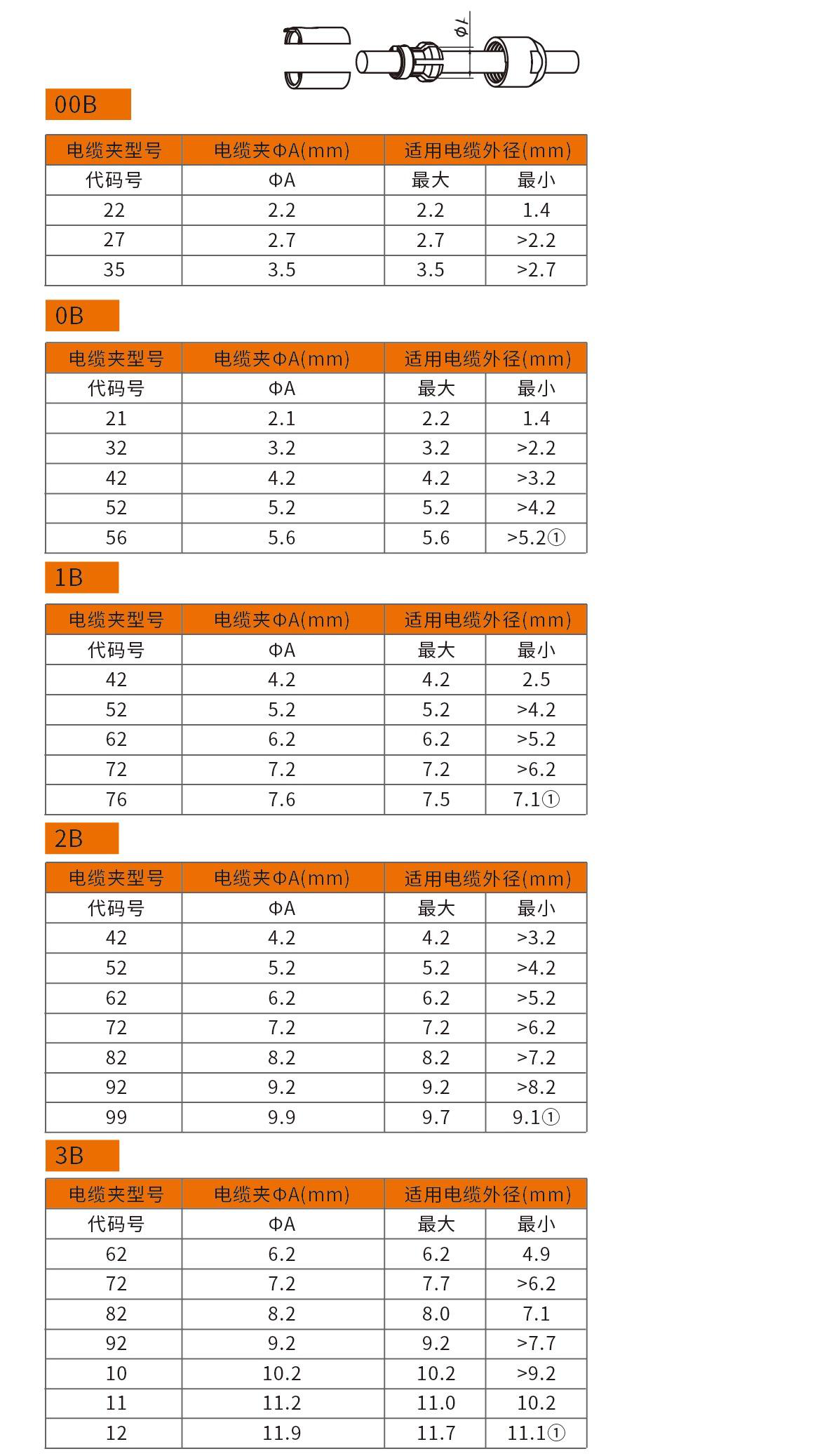

| Cable Clamp ΦA (mm) | 2.2, 2.7, 3.5, 4.2, 5.2, 6.2, 7.2, 7.6, 8.2, 9.2, 9.9, 11.9 |
| Applicable Cable Outer Diameter (mm) | 1.4~11.1 |

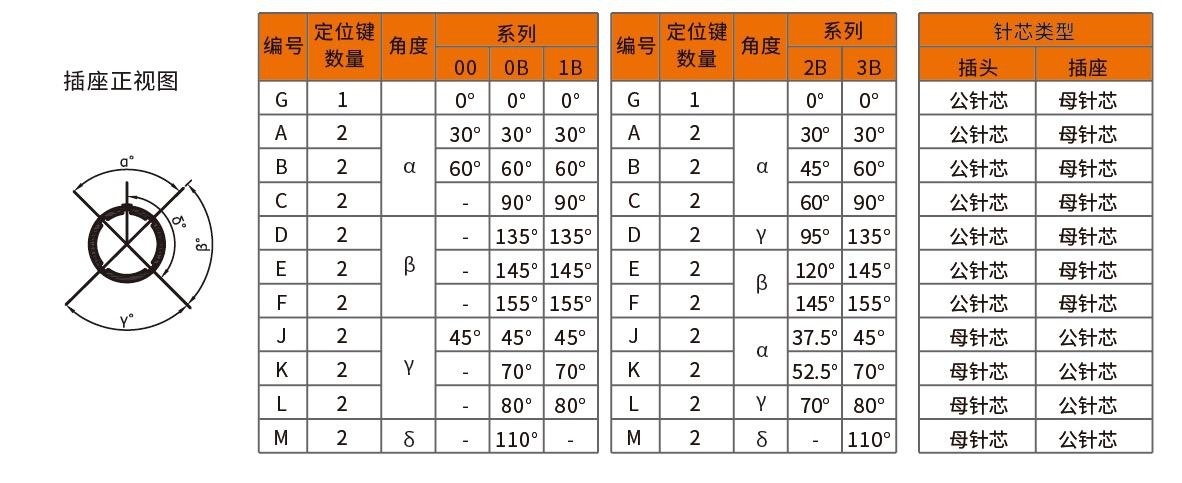

| Pin Type | 公针芯,母针芯 |

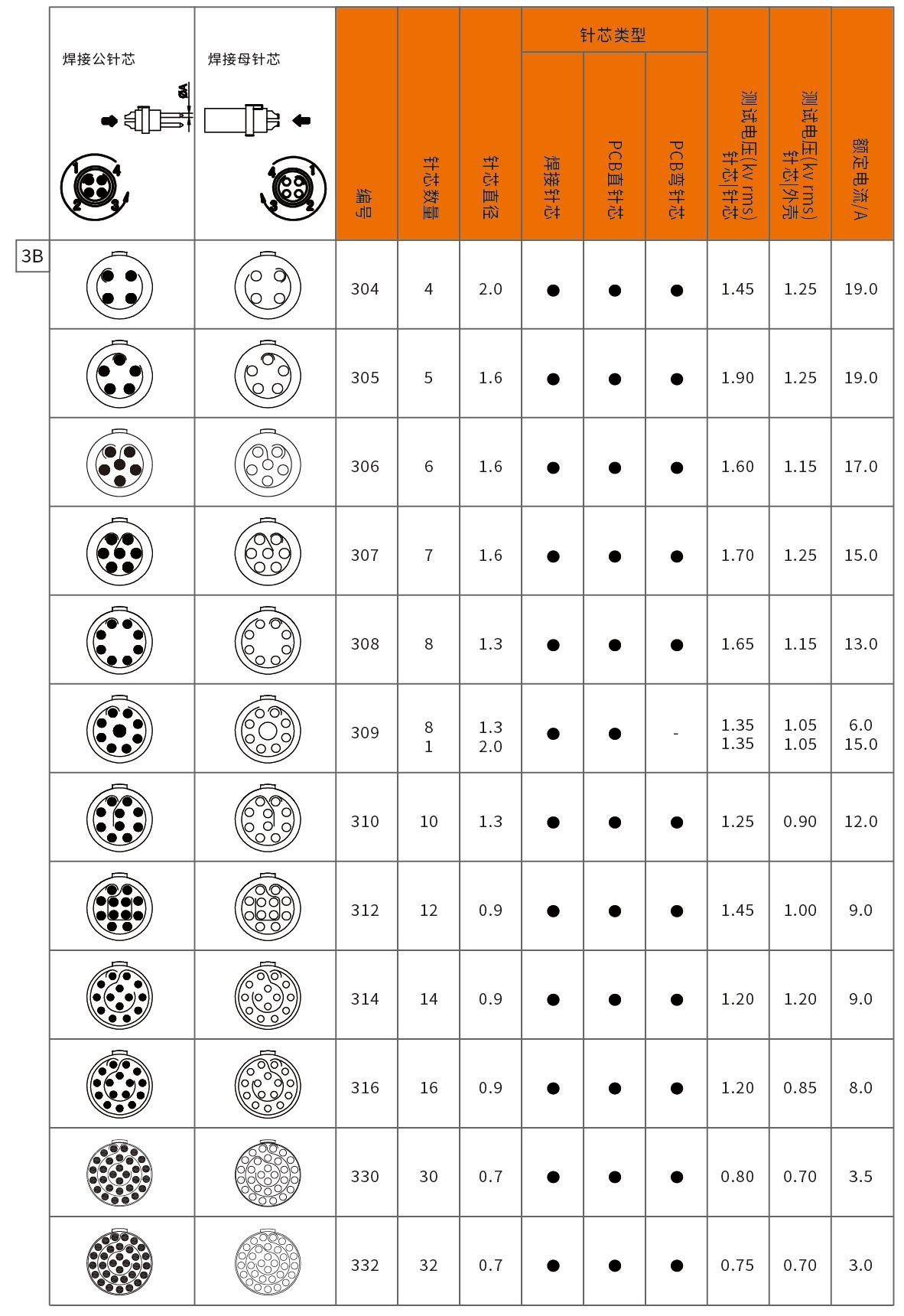

| Rated Current (A) | 3.0~19.0 |
