EWV Series Connector
The EWV series connector is a high-performance electrical connector designed for demanding environments. It features excellent durability, shielding effectiveness, and compatibility with various cable diameters.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|

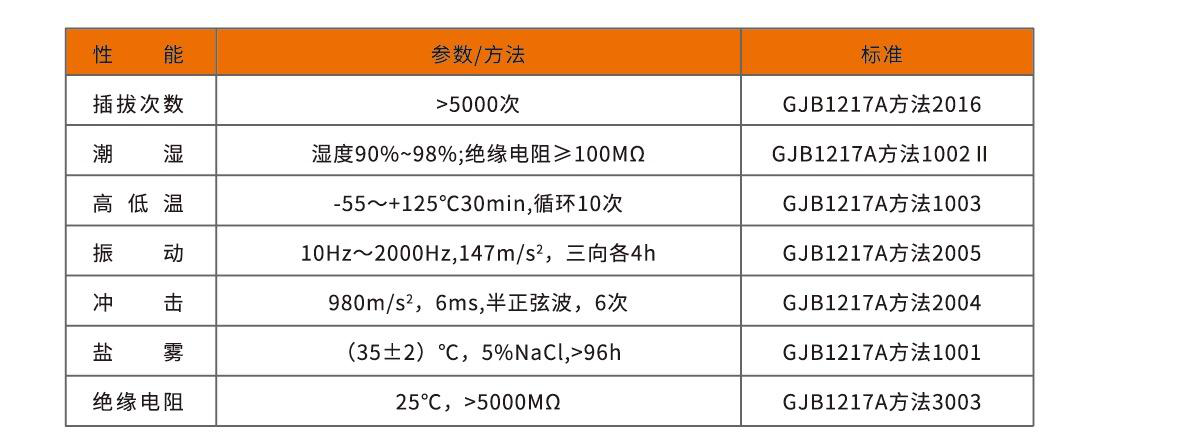

| Insertion Cycles | ＞5000次 |
| Humidity | 湿度90%~98%;绝缘电阻≥100MΩ |
| High and Low Temperature | -55~+125°C30min,循环10次 |
| Vibration | 10Hz~2000Hz,147m/s²,三向各4h |
| Shock | 980m/s²,6ms,半正弦波,6次 |
| Salt Spray | (35±2)°C,5%NaCl,＞96h |
| Insulation Resistance | 25°C,＞5000MΩ |

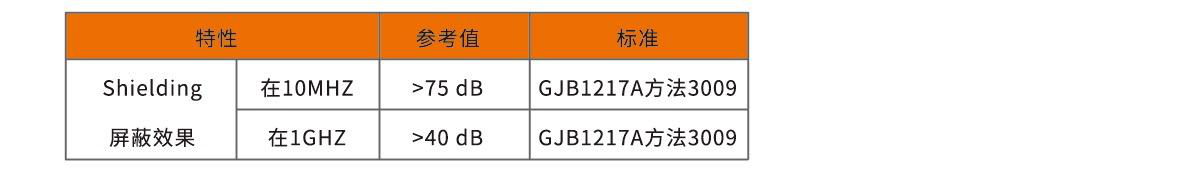

| Shielding Effectiveness at 10MHz | ＞75dB |
| Shielding Effectiveness at 1GHz | ＞40dB |

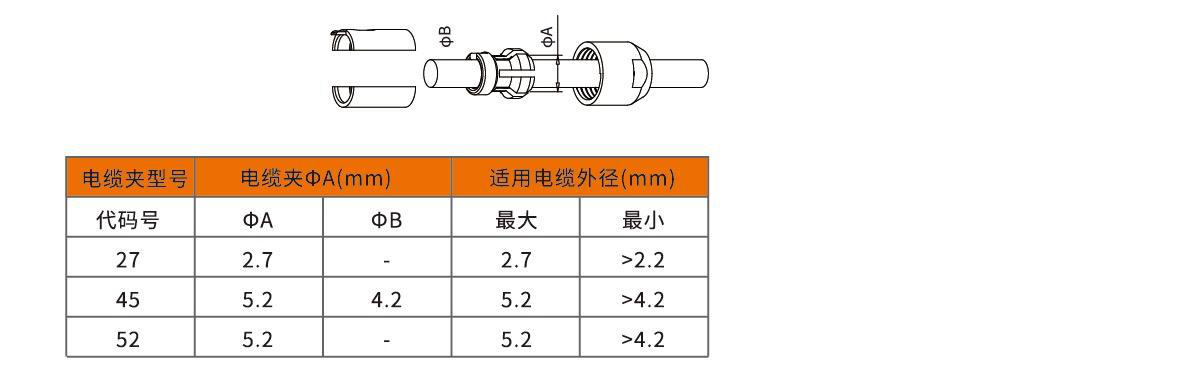

| Cable Clamp ΦA (mm) Code 27 | 2.7 |
| Cable Clamp ΦA (mm) Code 45 | 5.2 |
| Cable Clamp ΦB (mm) Code 45 | 4.2 |
| Applicable Cable Outer Diameter Max Code 27 | 2.7 |
| Applicable Cable Outer Diameter Min Code 27 | >2.2 |
| Applicable Cable Outer Diameter Max Code 45 | 5.2 |
| Applicable Cable Outer Diameter Min Code 45 | >4.2 |
| Applicable Cable Outer Diameter Max Code 52 | 5.2 |
| Applicable Cable Outer Diameter Min Code 52 | >4.2 |

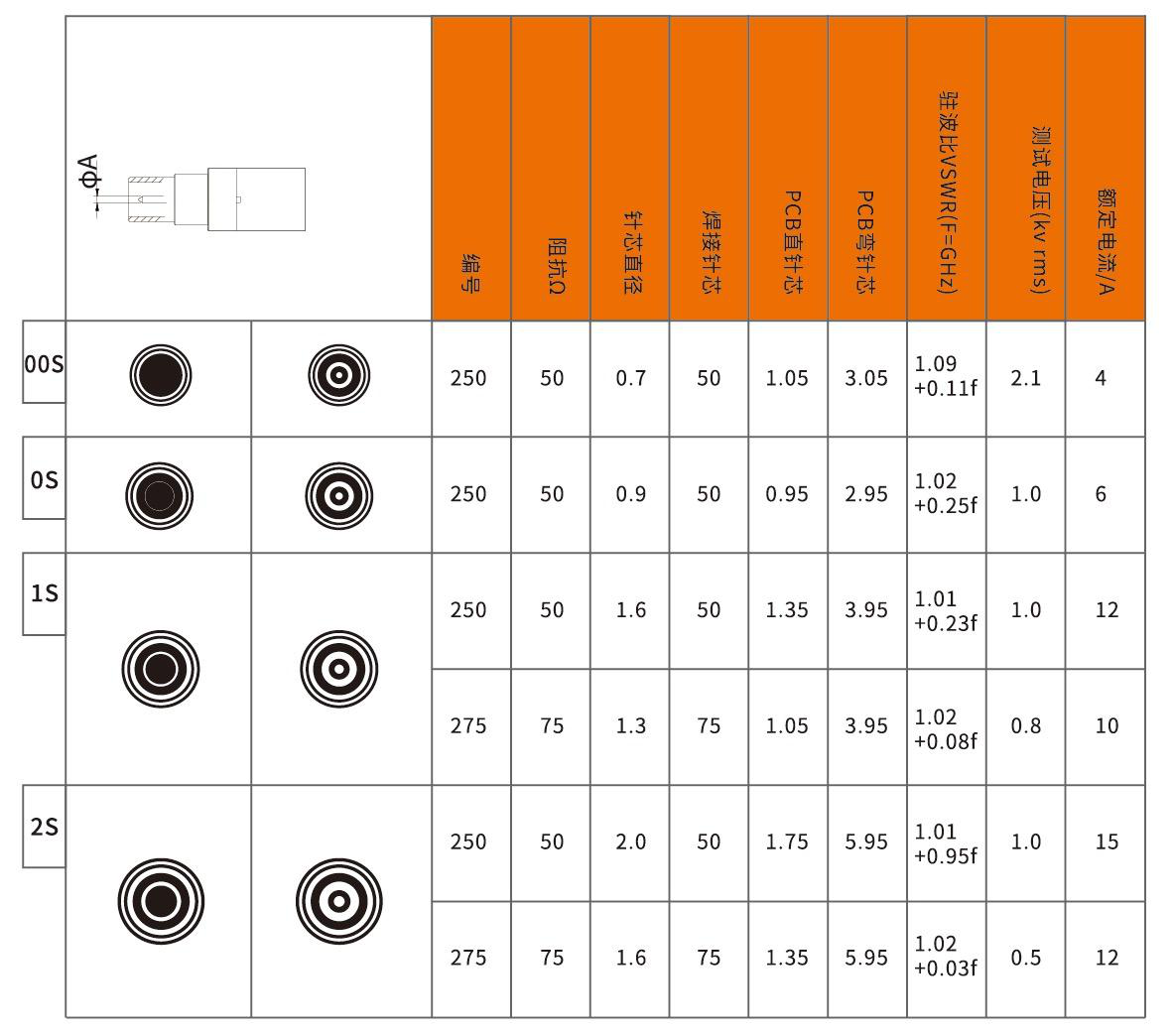

| Rated Current (A) 00S | 4 |
| Rated Current (A) 0S | 6 |
| Rated Current (A) 1S | 12 |
| Rated Current (A) 2S | 15 |

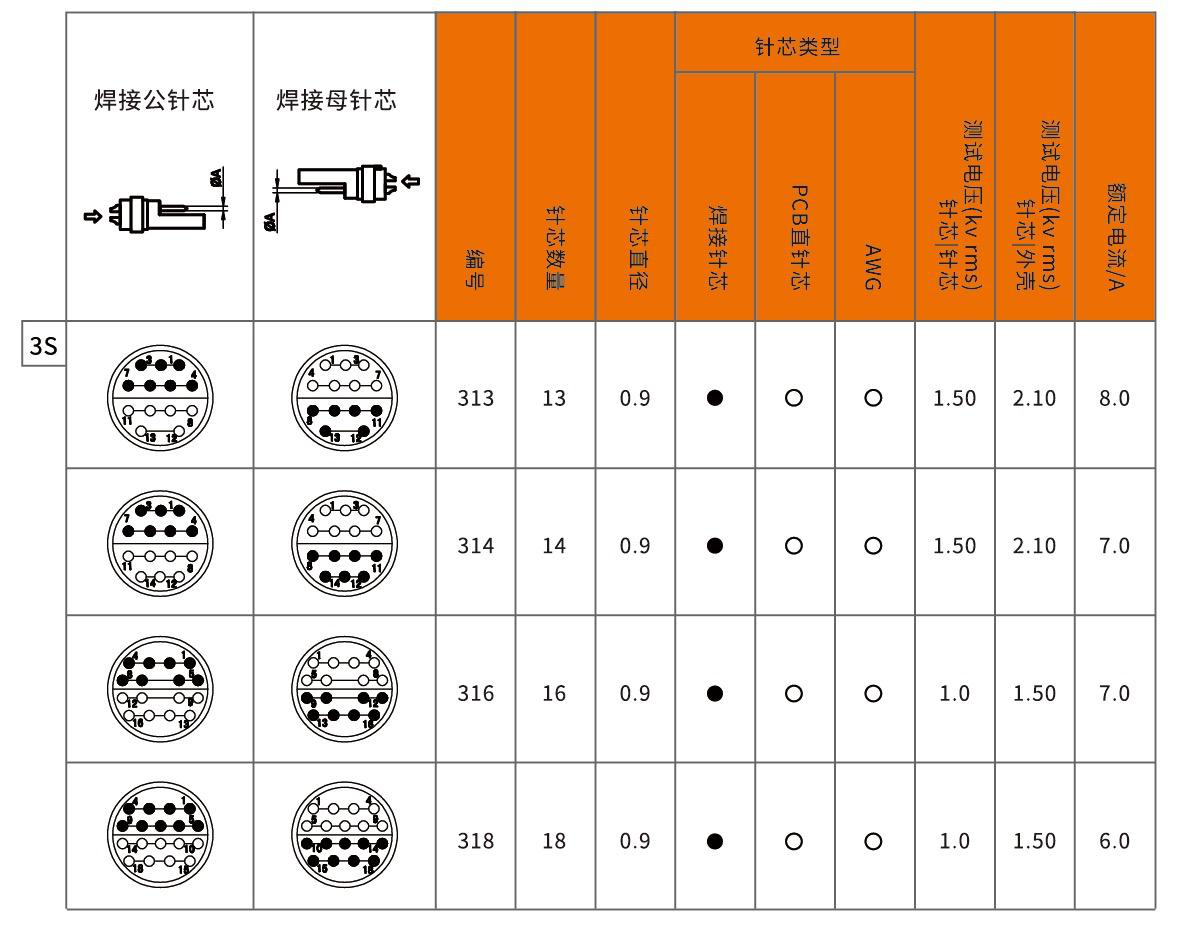

| Rated Current (A) 3S | 8 |
| Rated Current (A) 3S Code 314 | 7 |
| Rated Current (A) 3S Code 316 | 7 |
| Rated Current (A) 3S Code 318 | 6 |
