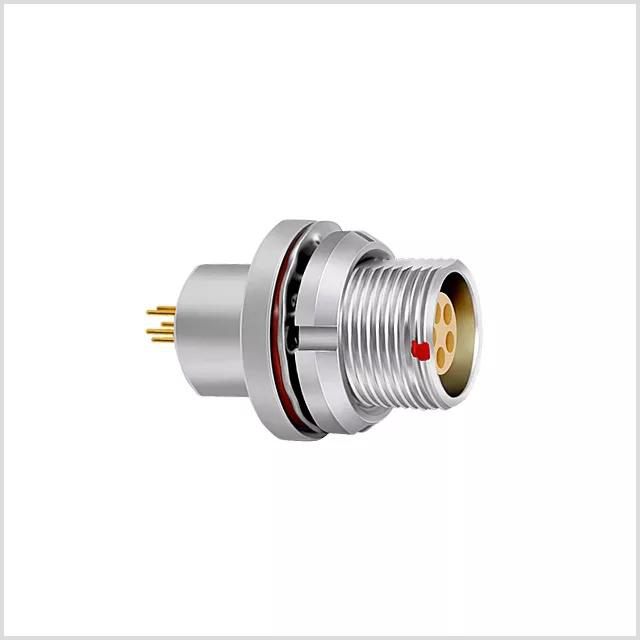

HEG Series Circular Connectors
HEG series circular connectors are designed for high-performance applications, offering reliable electrical connections and robust mechanical properties.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|

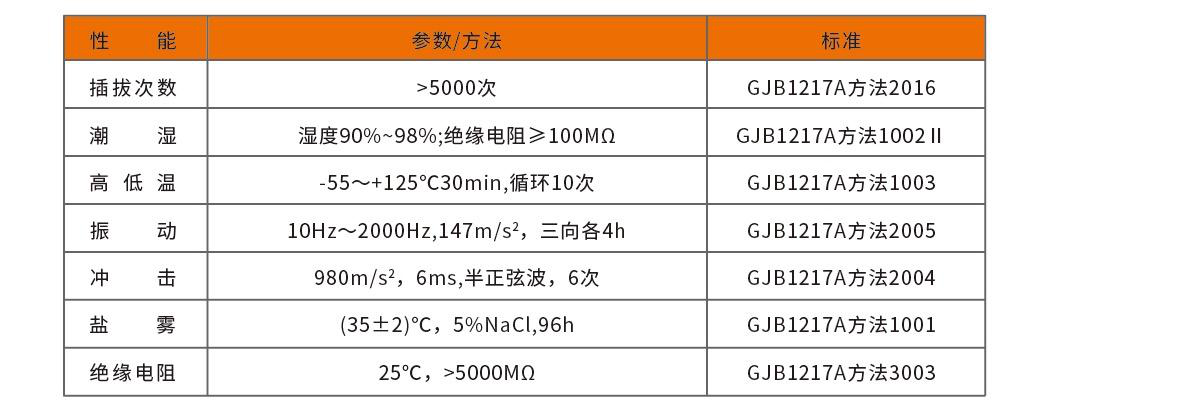

| Insertion Cycles | ＞5000次 |
| Humidity | 湿度90%-98%;绝缘电阻≥100MΩ |
| High and Low Temperature | -55~125°C,30min,循环10次 |
| Vibration | 10Hz~2000Hz,147m/s²,三向各4h |
| Shock | 980m/s²,6ms,半正弦波,6次 |
| Salt Spray | (35±2)°C,5%NaCl,96h |
| Insulation Resistance | 25°C,＞5000MΩ |

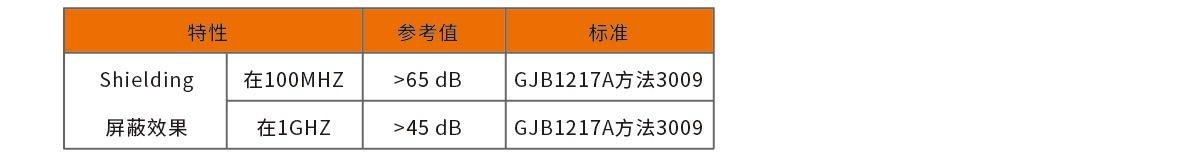

| Shielding Effectiveness at 100MHz | >65dB |
| Shielding Effectiveness at 1GHz | >45dB |

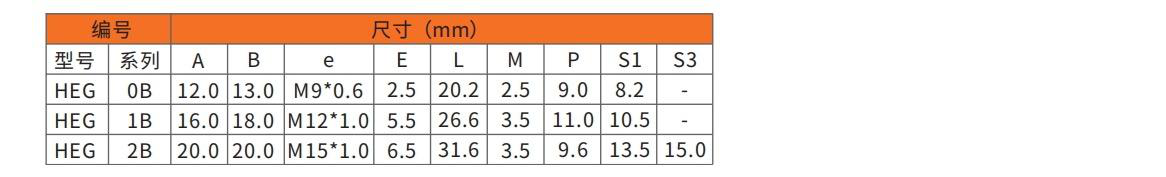

| Dimension A | 12.0,16.0,20.0 |
| Dimension B | 13.0,18.0,20.0 |
| Dimension e | M9*0.6,M12*1.0,M15*1.0 |
| Dimension e | 2.5,5.5,6.5 |
| Dimension L | 20.2,26.6,31.6 |
| Dimension M | 2.5,3.5,3.5 |
| Dimension P | 9.0,11.1,9.6 |
| Dimension S1 | 8.2,10.5,13.5 |
| Dimension S3 | -, -, 15.0 |

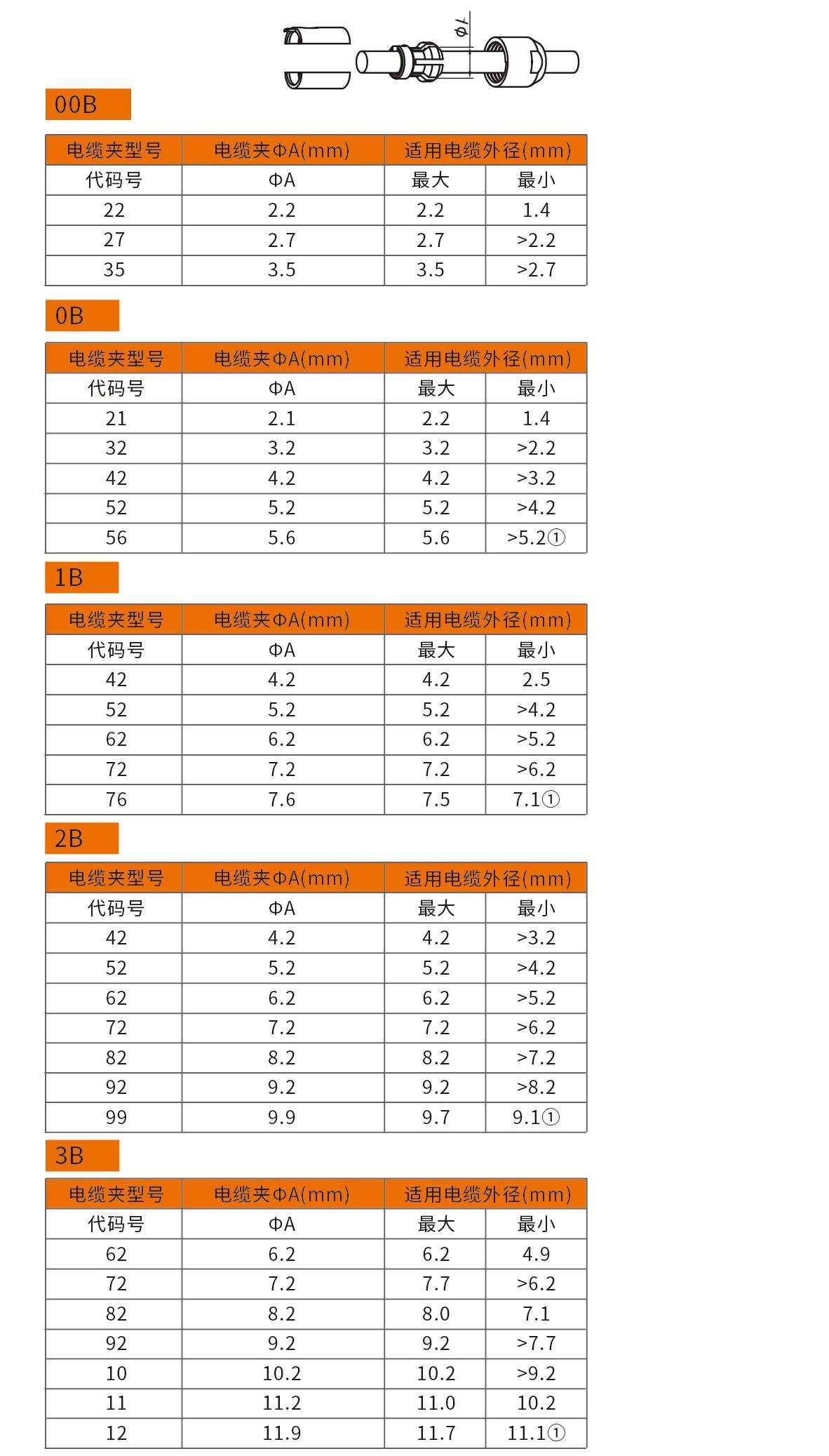

| Cable Clamp ΦA | 2.2,2.7,3.5,4.2,5.2,6.2,7.2,7.6,8.2,9.2,9.9,6.2,7.7,8.0,9.2,10.2,11.2,11.9 |
| Applicable Cable Outer Diameter | 1.4~2.2,>2.2~2.7,>2.7~3.5,>3.2~4.2,>4.2~5.2,>5.2~6.2,>6.2~7.2,7.1~7.5,>7.1~8.2,>8.2~9.2,>9.2~9.7,4.9~6.2,>6.2~7.7,>7.7~8.0,>8.0~9.2,>9.2~10.2,>10.2~11.2,11.1~11.7 |

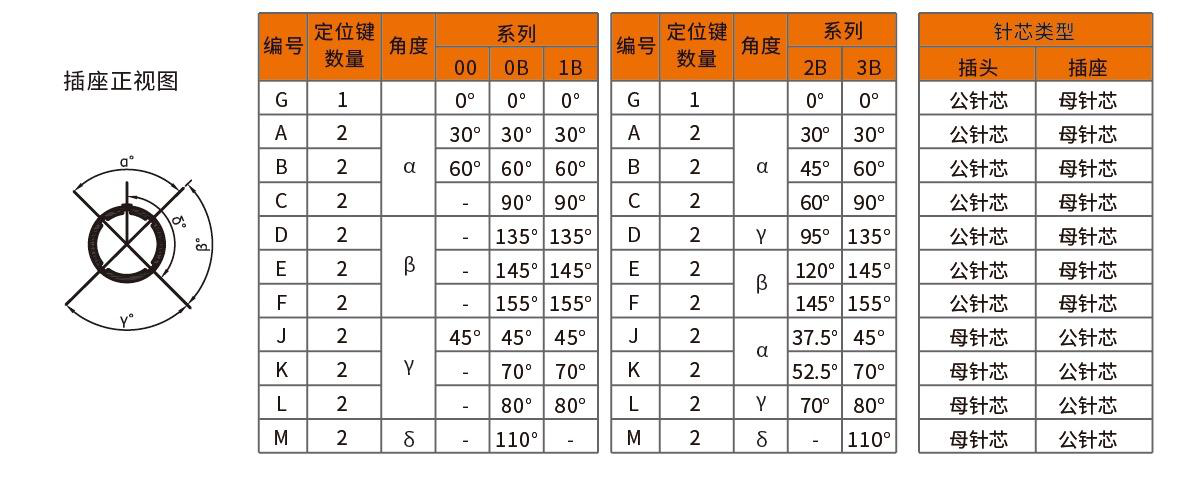

| Pin Type | 公针芯,母针芯 |

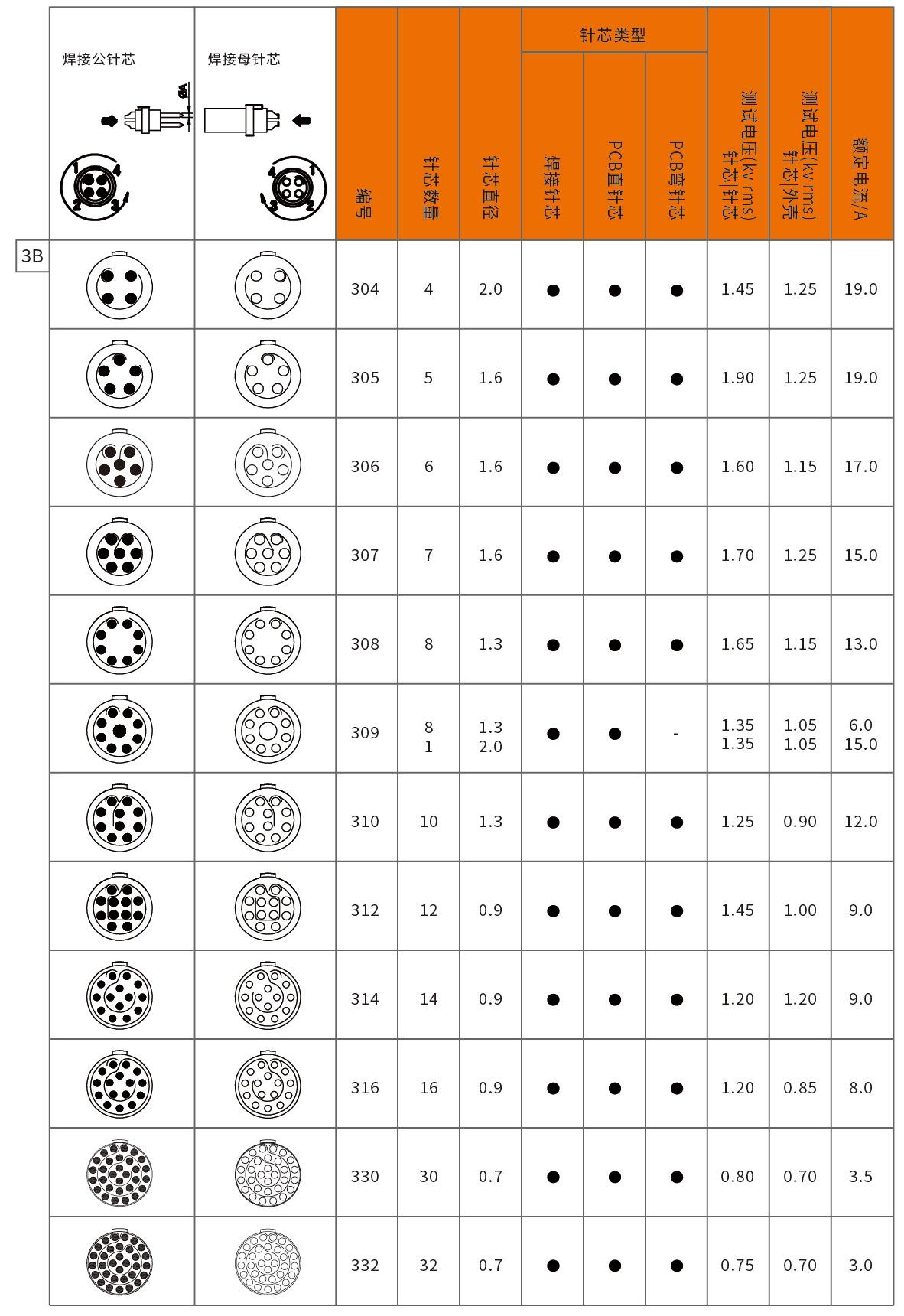

| Rated current | 19.0,17.0,15.0,13.0,6.0,12.0,9.0,8.0,3.5,3.0 |
