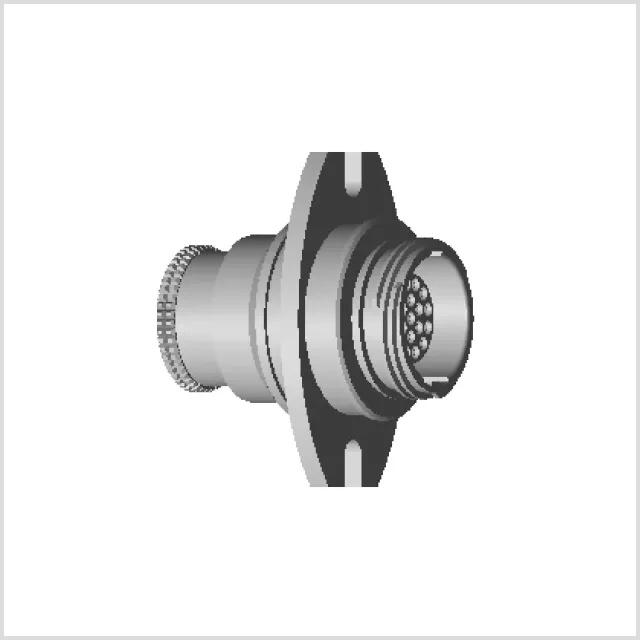

PBN Series Circular Connectors
PBN series circular connectors are designed for high-performance applications, offering excellent durability, environmental resistance, and reliable electrical connections.
Save to Favorites
Overview
Specifications

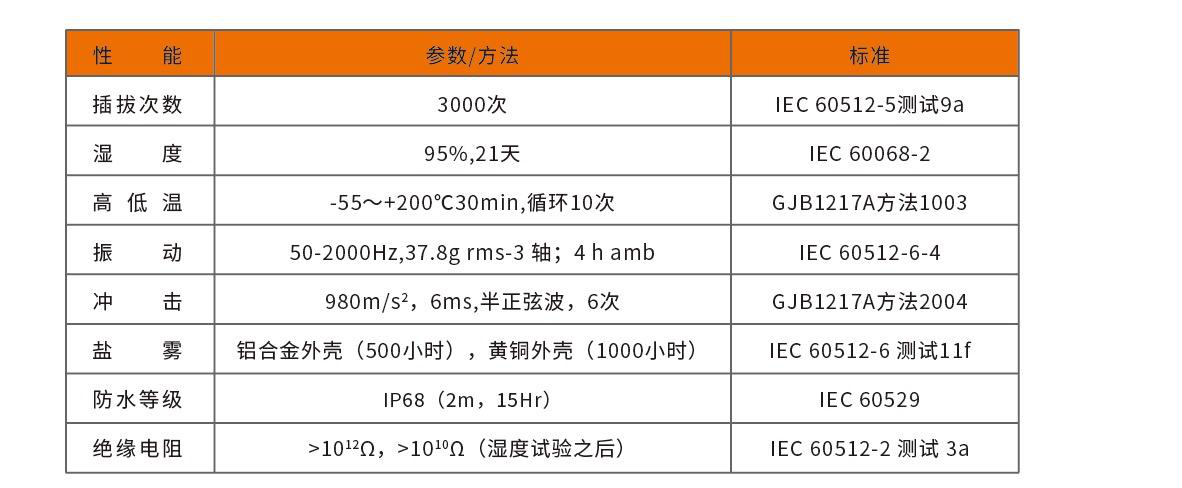

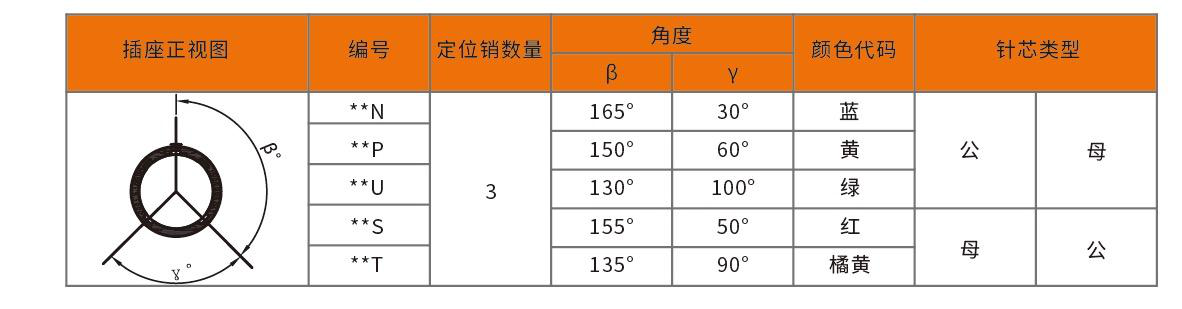

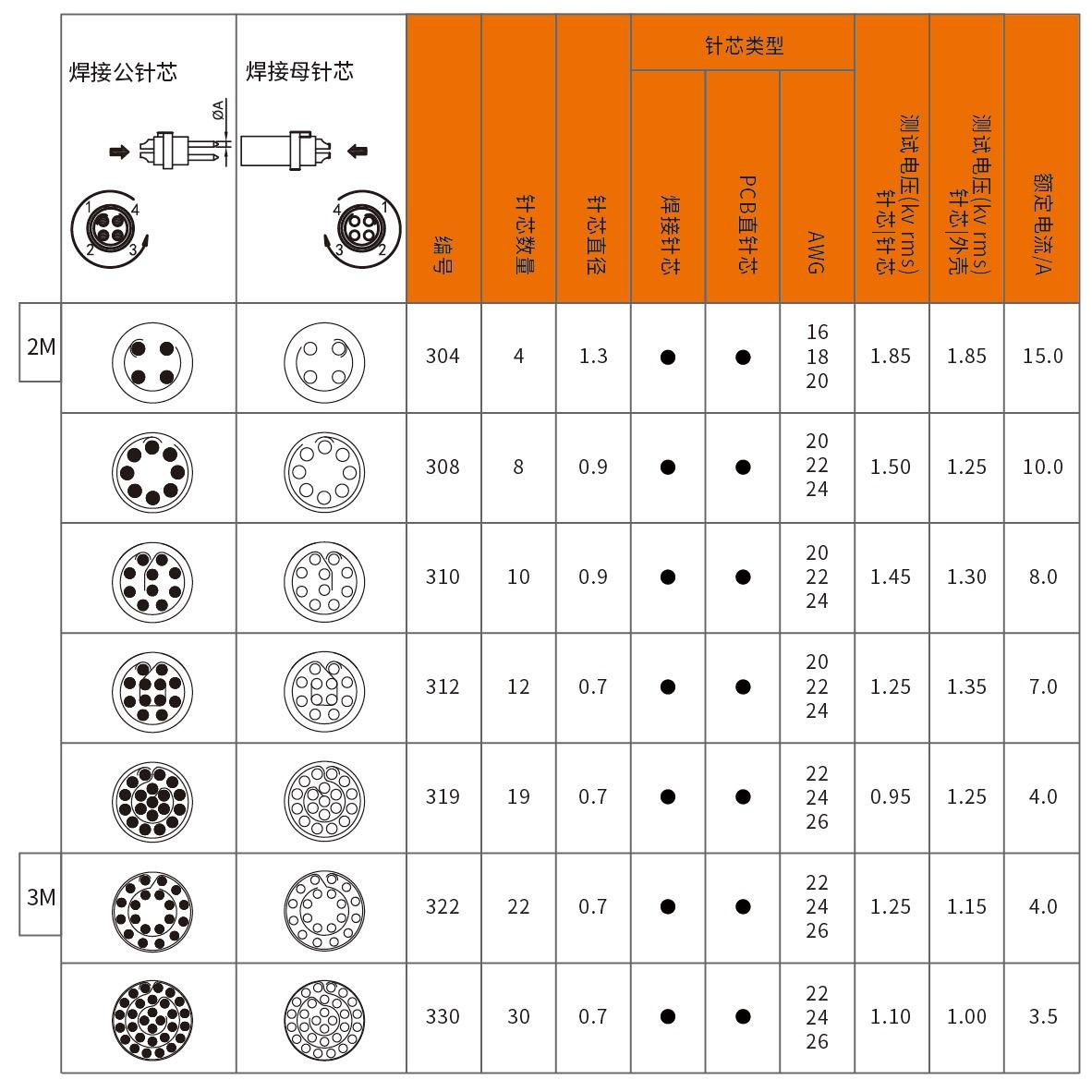

| Parameter | Value |
|---|---|
| Mating Cycles | 3000次 |
| Humidity | 95%,21天 |
| Temperature range | -55~+200°C30min,循环10次 |
| Vibration | 50-2000Hz,37.8g rms-3轴; 4 hamb |
| Shock | 980m/s²,6ms,半正弦波,6次 |
| Salt Spray | 铝合金外壳 (500小时), 黄铜外壳 (1000小时) |
| Waterproof Rating | IP68 (2m, 15Hr) |
| Insulation Resistance | >10¹²Ω, >10¹⁰Ω (湿度试验之后) |

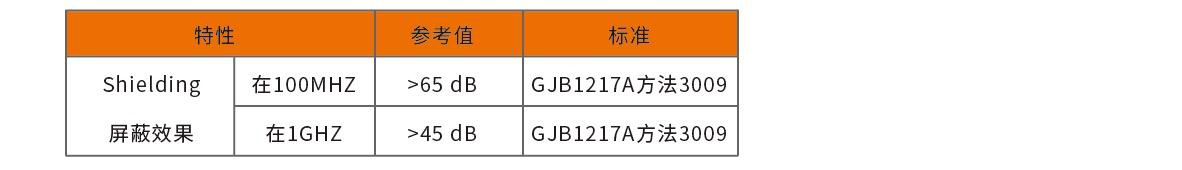

| Shielding Effectiveness at 100MHz | >65dB |
| Shielding Effectiveness at 1GHz | >45dB |

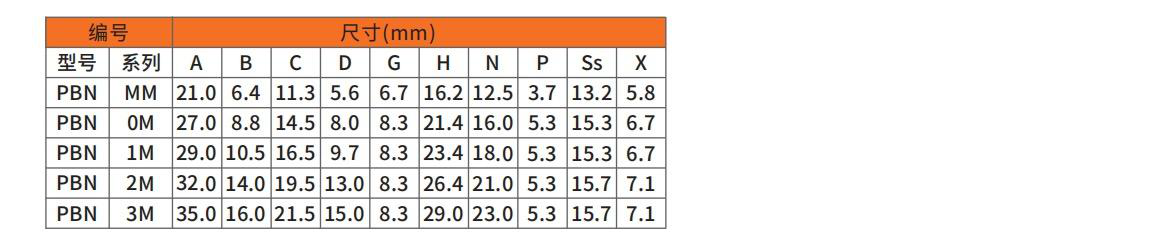

| Dimension A (mm) | 21.0, 27.0, 29.0, 32.0, 35.0 |
| Dimension B (mm) | 6.4, 8.8, 10.5, 14.0, 16.0 |
| Dimension C (mm) | 5.6, 8.0, 9.7, 13.0, 15.0 |
| Dimension D (mm) | 6.7, 8.3, 8.3, 8.3, 8.3 |
| Dimension G (mm) | 16.2, 21.4, 23.4, 26.4, 29.0 |
| Dimension H (mm) | 12.5, 16.0, 18.0, 21.0, 23.0 |
| Dimension N (mm) | 3.7, 5.3, 5.3, 5.3, 5.3 |
| Dimension P (mm) | 1.3, 1.3, 1.3, 1.3, 1.3 |
| Dimension Ss (mm) | 5.8, 6.7, 6.7, 7.1, 7.1 |
| Dimension X (mm) | 5.8, 6.7, 6.7, 7.1, 7.1 |
