FG8 Series Circular Connectors
FG8 series circular connectors are designed for high-performance electrical connections, offering excellent durability, waterproof capabilities, and shielding effectiveness.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|

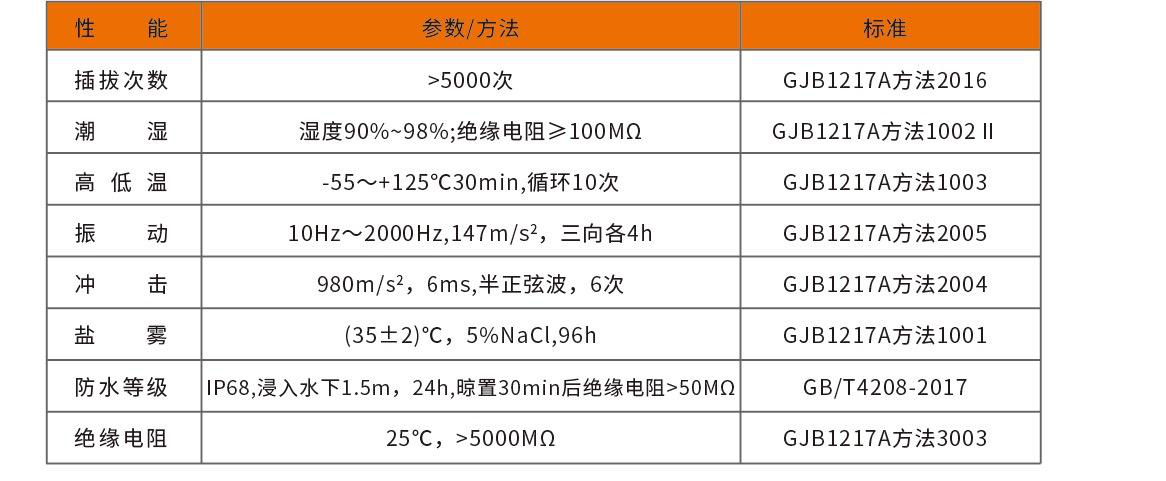

| Mating Cycles | ＞5000次 |
| Humidity | 湿度90%~98%;绝缘电阻≥100MΩ |
| High and Low Temperature | -55~125°C30min,循环10次 |
| Vibration | 10Hz~2000Hz,147m/s²,三向各4h |
| Shock | 980m/s²,6ms,半正弦波,6次 |
| Salt Spray | (35±2)°C,5%NaCl,96h |
| Waterproof Level | IP68,浸入水下1.5m,24h,设置30min后绝缘电阻≥50MΩ |
| Insulation Resistance | 25°C,＞5000MΩ |

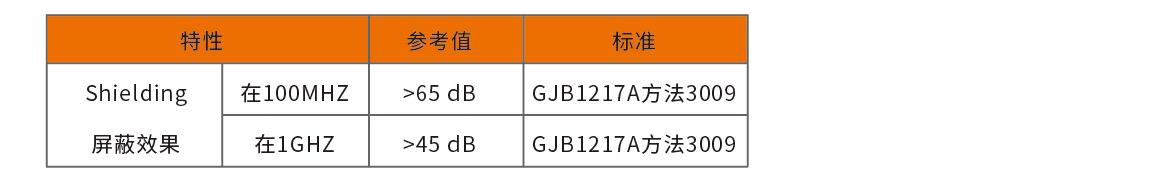

| Shielding Effectiveness at 100MHz | ＞65dB |
| Shielding Effectiveness at 1GHz | ＞45dB |

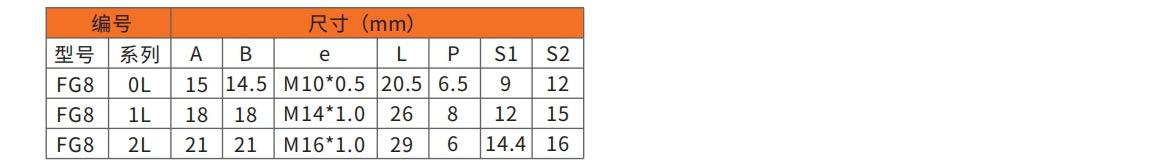

| Model FG8 0L A | 15 |
| Model FG8 0L B | 14.5 |
| Model FG8 0L e | M10*0.5 |
| Model FG8 0L L | 20.5 |
| Model FG8 0L P | 6.5 |
| Model FG8 0L S1 | 9 |
| Model FG8 0L S2 | 12 |
| Model FG8 1L A | 18 |
| Model FG8 1L B | 18 |
| Model FG8 1L e | M14*1.0 |
| Model FG8 1L L | 26 |
| Model FG8 1L P | 8 |
| Model FG8 1L S1 | 12 |
| Model FG8 1L S2 | 15 |
| Model FG8 2L A | 21 |
| Model FG8 2L B | 21 |
| Model FG8 2L e | M16*1.0 |
| Model FG8 2L L | 29 |
| Model FG8 2L P | 6 |
| Model FG8 2L S1 | 14.4 |
| Model FG8 2L S2 | 16 |

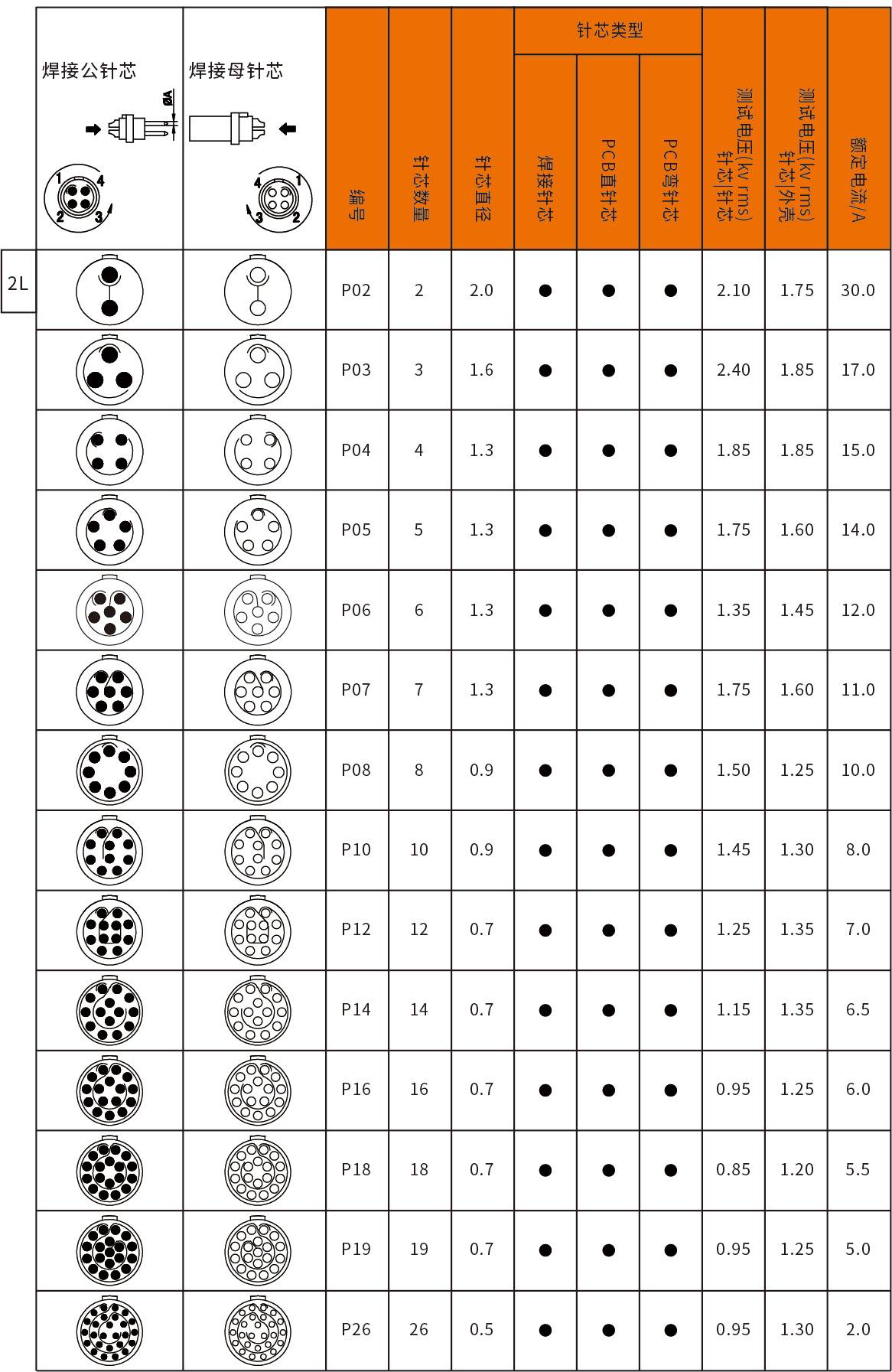

| Pin Type P02 | 2 |
| Pin Type P03 | 3 |
| Pin Type P04 | 4 |
| Pin Type P05 | 5 |
| Pin Type P06 | 6 |
| Pin Type P07 | 7 |
| Pin Type P08 | 8 |
| Pin Type P10 | 10 |
| Pin Type P12 | 12 |
| Pin Type P14 | 14 |
| Pin Type P16 | 16 |
| Pin Type P18 | 18 |
| Pin Type P19 | 19 |
| Pin Type P26 | 26 |
