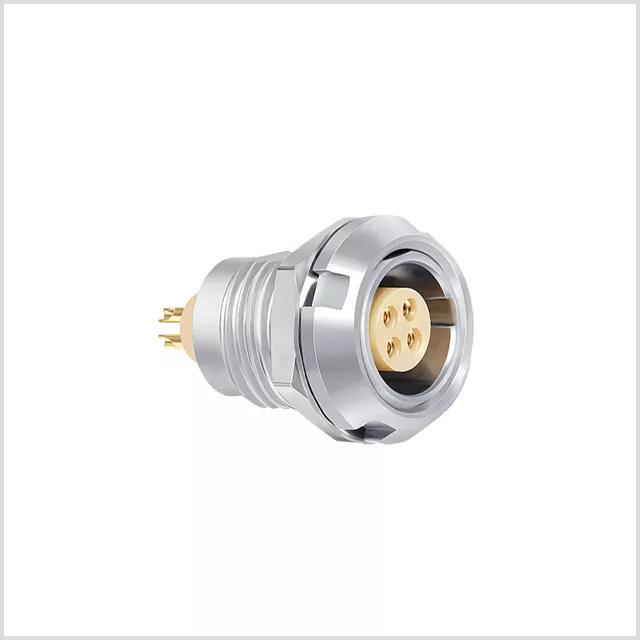

Circular Connector
This circular connector is designed for high-performance applications, offering durability, reliability, and excellent shielding capabilities.
Save to Favorites
Overview
Specifications

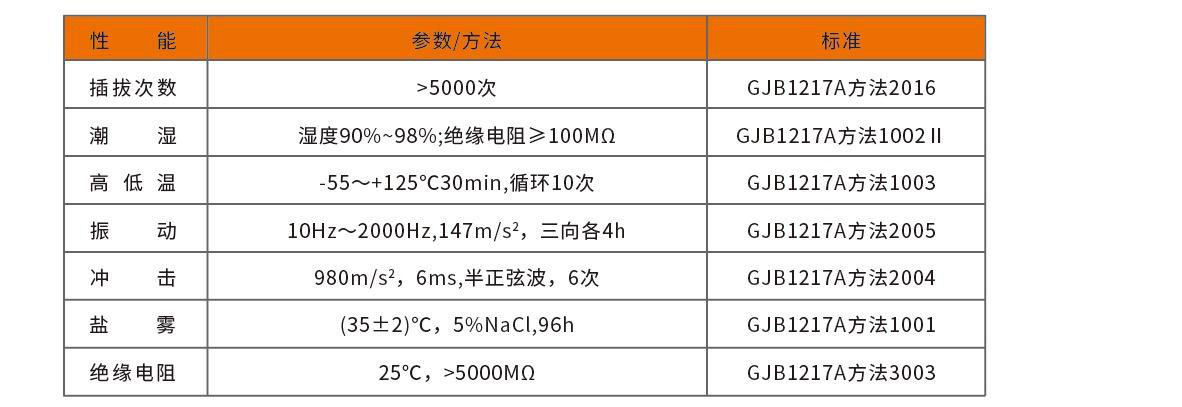

| Parameter | Value |
|---|---|
| Insertion Cycles | >5000次 |
| Humidity | 湿度90%~98%;绝缘电阻≥100MΩ |
| High and Low Temperature | -55~125°C30min,循环10次 |
| Vibration | 10Hz~2000Hz,147m/s²,三向各4h |
| Shock | 980m/s²,6ms,半正弦波,6次 |
| Salt Spray | (35±2)°C,5%NaCl,96h |
| Insulation Resistance | 25°C,>5000MΩ |

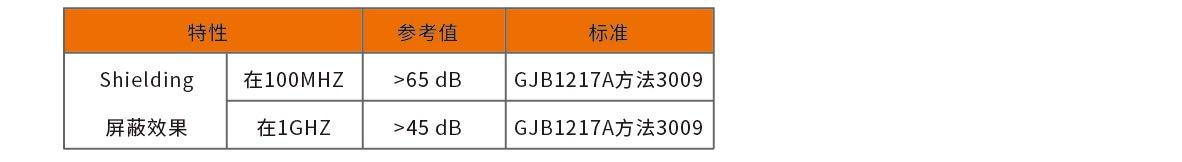

| Shielding Effectiveness at 100MHz | >65dB |
| Shielding Effectiveness at 1GHz | >45dB |

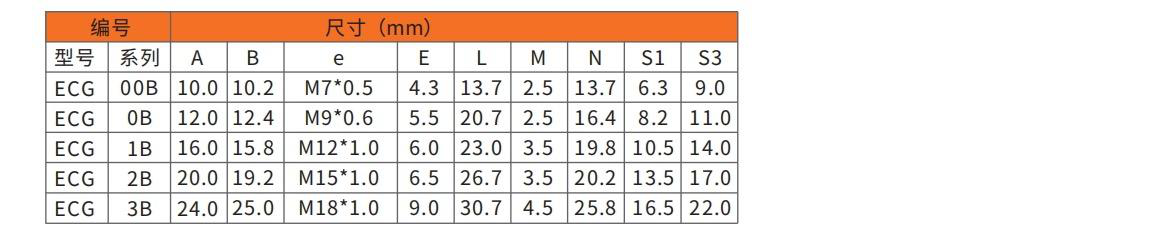

| Dimensions 00B | A:10.0,B:10.2,e:M7*0.5,E:4.3,L:13.7,M:2.5,S1:6.3,S3:9.0 |
| Dimensions 0B | A:12.0,B:12.4,e:M9*0.6,E:5.5,L:20.7,M:2.5,S1:8.2,S3:11.0 |
| Dimensions 1B | A:16.0,B:15.8,e:M12*1.0,E:6.0,L:23.0,M:3.5,S1:10.5,S3:14.0 |
| Dimensions 2B | A:20.0,B:19.2,e:M15*1.0,E:6.5,L:26.7,M:3.5,S1:13.5,S3:17.0 |
| Dimensions 3B | A:24.0,B:25.0,e:M18*1.0,E:9.0,L:30.7,M:4.5,S1:16.5,S3:22.0 |

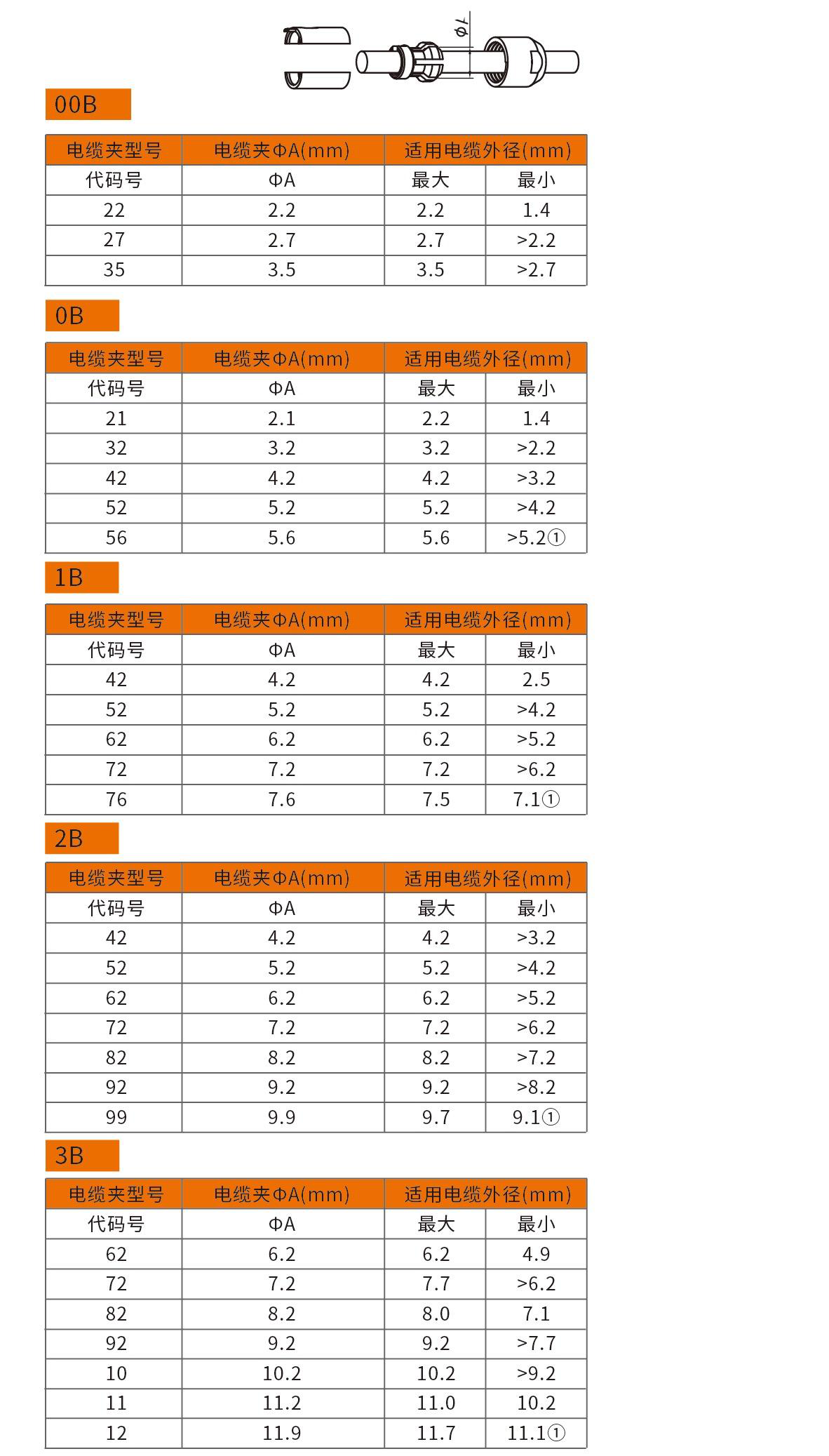

| Cable Clamp Dimensions 00B | ΦA:2.2~3.5 |
| Cable Clamp Dimensions 0B | ΦA:2.1~5.6 |
| Cable Clamp Dimensions 1B | ΦA:4.2~7.6 |
| Cable Clamp Dimensions 2B | ΦA:4.2~9.9 |
| Cable Clamp Dimensions 3B | ΦA:6.2~11.9 |

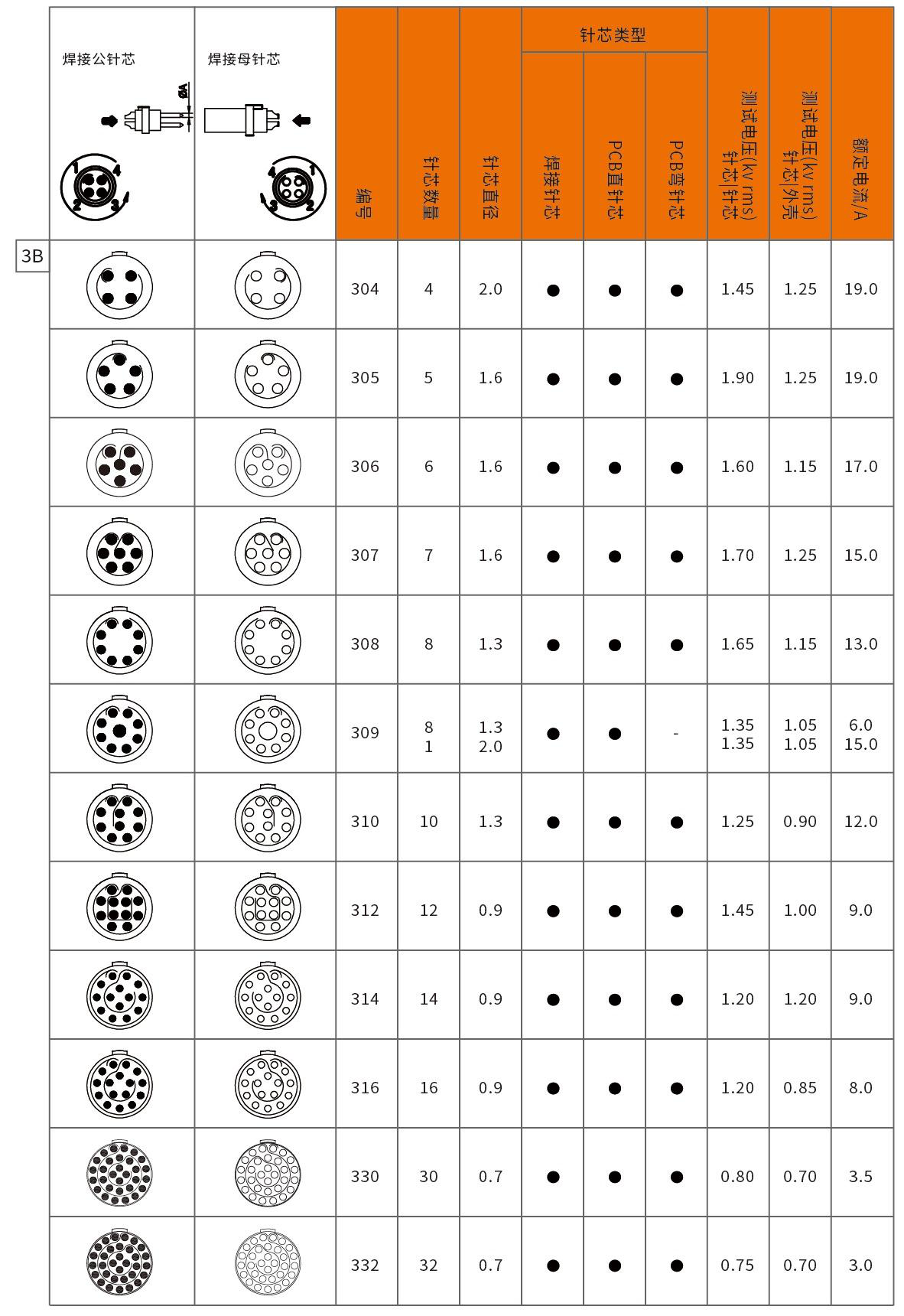

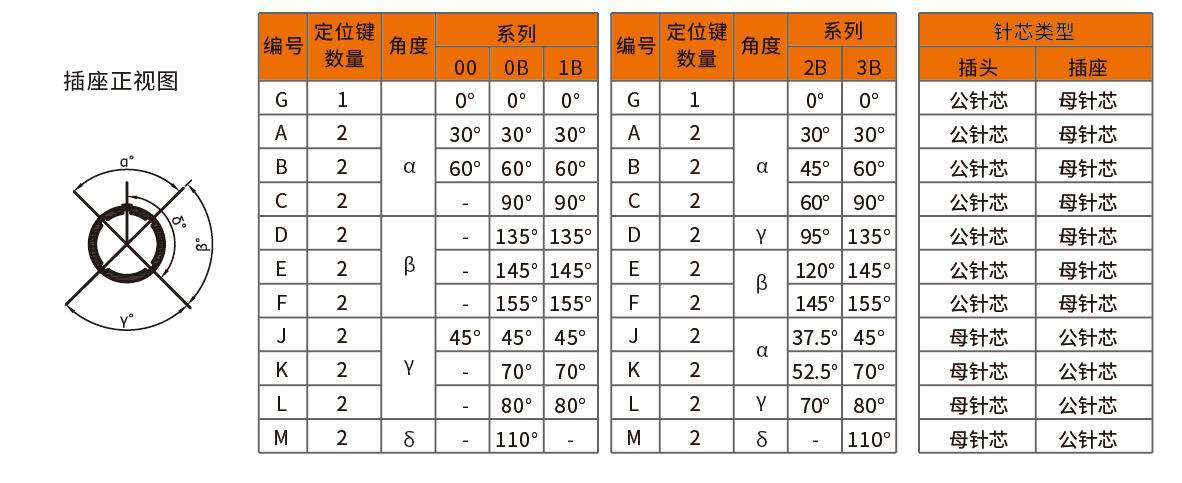

| Pin Type 3B | 4~32 pins, rated current: 0.75~1.90A |
Applications
Key Features
Datasheet
Supplier Information
Related Products
-
