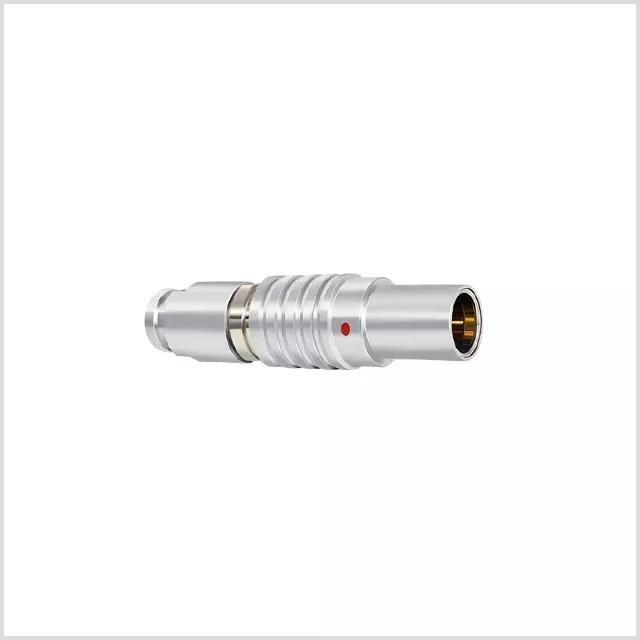

Circular Push-Pull Connectors
Circular push-pull connectors are designed for high-performance applications, offering reliable connections and robust durability.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|

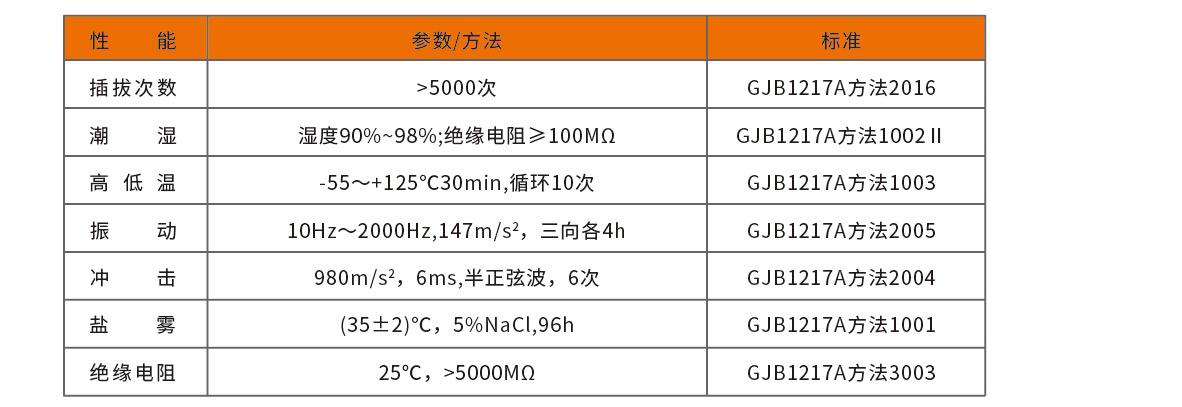

| Plugging Cycles | ＞5000次 |
| Humidity | 湿度90%-98%;绝缘电阻≥100MΩ |
| High and Low Temperature | -55~125°C,30min,循环10次 |
| Vibration | 10Hz~2000Hz,147m/s²,三向各4h |
| Shock | 980m/s²,6ms,半正弦波,6次 |
| Salt Spray | (35±2)°C,5%NaCl,96h |
| Insulation Resistance | 25°C,＞5000MΩ |

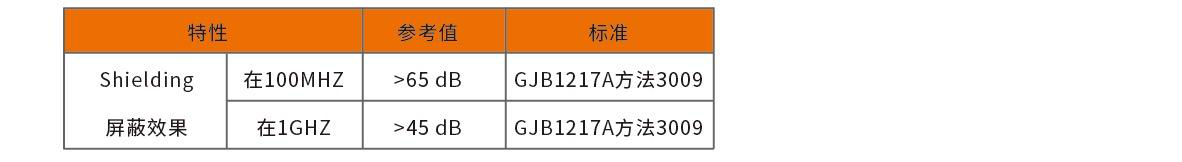

| Shielding Effectiveness at 100MHz | ＞65dB |
| Shielding Effectiveness at 1GHz | ＞45dB |

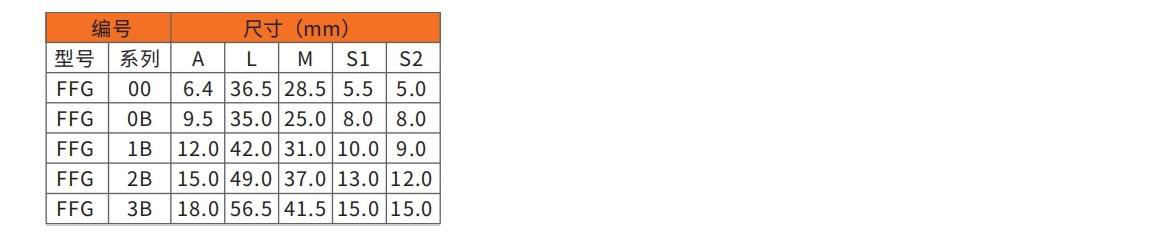

| Dimension A (mm) | 6.4, 9.5, 12.0, 15.0, 18.0 |
| Dimension L (mm) | 36.5, 35.0, 42.0, 49.0, 56.5 |
| Dimension M (mm) | 28.5, 25.0, 31.0, 37.0, 41.5 |
| Dimension S1 (mm) | 5.5, 8.0, 10.0, 13.0, 15.0 |
| Dimension S2 (mm) | 5.0, 8.0, 9.0, 12.0, 15.0 |

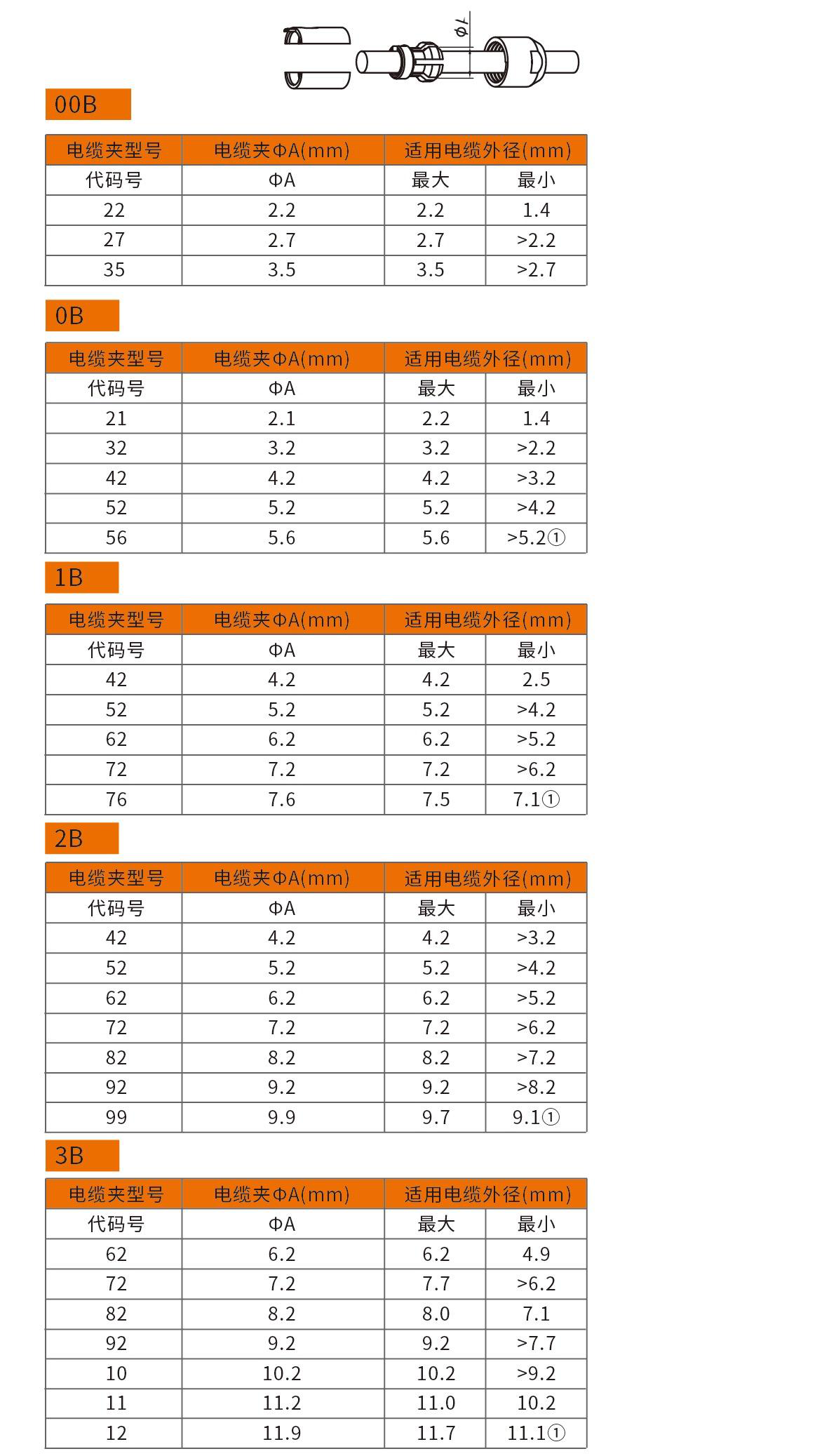

| Cable Clamp ΦA (mm) | 2.2, 2.7, 3.5, 4.2, 5.2, 6.2, 7.2, 7.6, 8.2, 9.2, 9.9, 11.9 |
| Applicable Cable Outer Diameter (mm) | 1.4~11.1 |

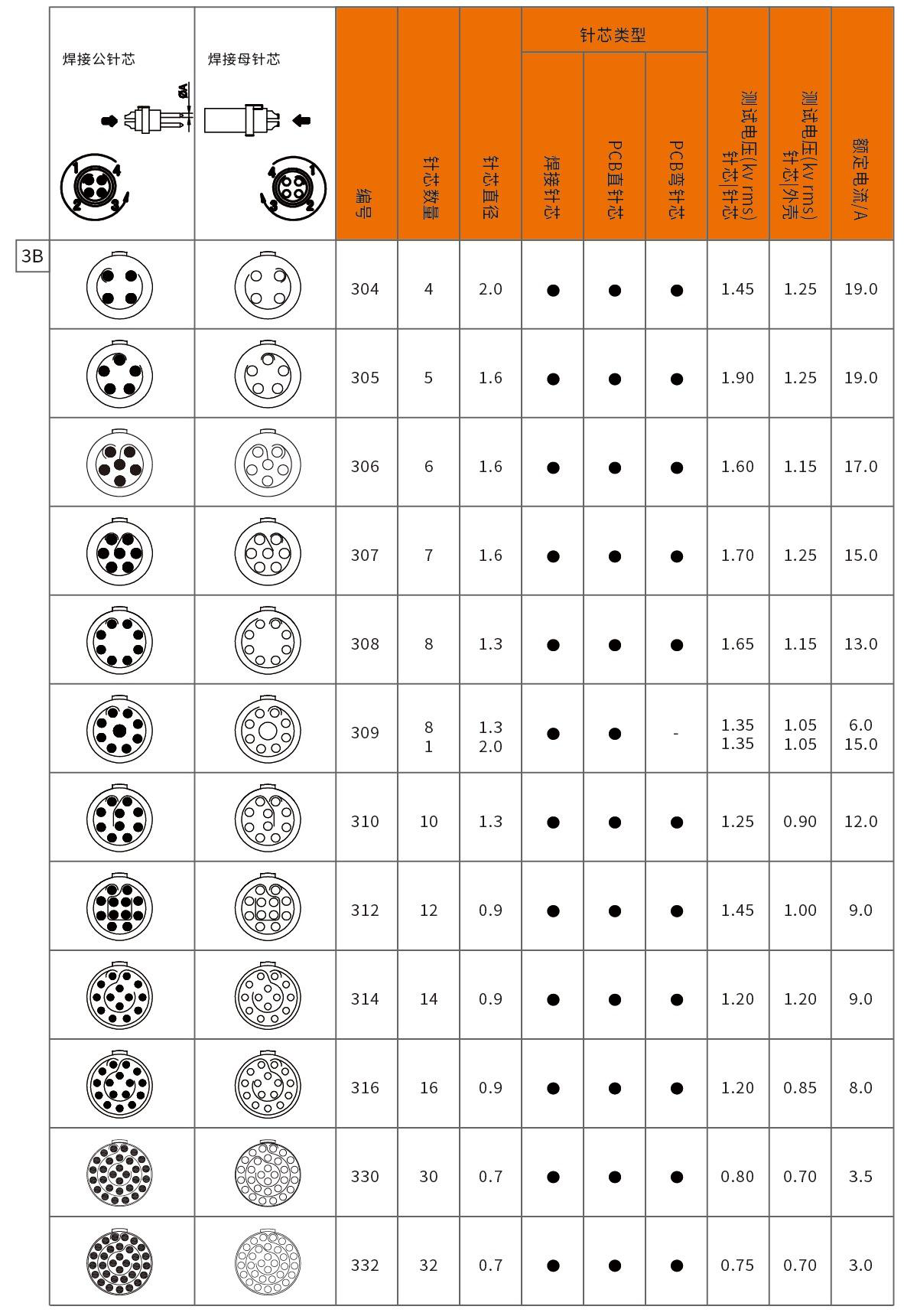

| Pin Type | 公针芯,母针芯 |
| Number of Pins | 4, 5, 6, 7, 8, 10, 12, 14, 16, 30, 32 |
| Rated Current (A) | 3.0~19.0 |
