HR25A Connector
HR25A connector is a compact and reliable electrical connector designed for various industrial applications. It features high durability and excellent electrical performance.
Save to Favorites
Overview
Specifications

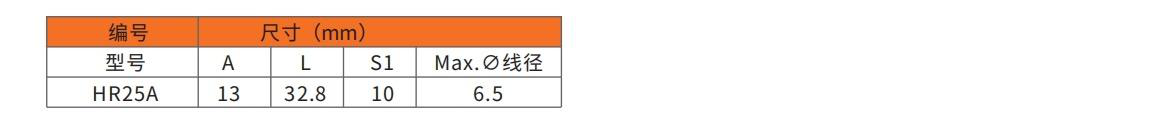

| Parameter | Value |
|---|---|
| Model | HR25A |
| A (mm) | 13 |
| L (mm) | 32.8 |
| S1 (mm) | 10 |
| Max Cable Diameter (mm) | 6.5 |
| Number of Cores 7mm | 4, 5, 6 |
| Rated Voltage 7mm | AC500V/min, AC300V/min |
| Rated Current 7mm | 2A |
| Insulation Resistance 7mm | MIN 1,000Ω |
| Pin Core Resistance 7mm | MAX 10Ω |
| Solder Cup Size 7mm | Φ0.8 |
| Number of Cores 10mm | 10, 12 |
| Rated Voltage 10mm | AC300V/min |
| Rated Current 10mm | 2A |
| Insulation Resistance 10mm | MIN 1,000Ω |
| Pin Core Resistance 10mm | MAX 10Ω |
| Solder Cup Size 10mm | Φ0.8 |
| Number of Cores 13mm | 20 |
| Rated Voltage 13mm | AC300V/min |
| Rated Current 13mm | 2A |
| Insulation Resistance 13mm | MIN 1,000Ω |
| Pin Core Resistance 13mm | MAX 10Ω |
| Solder Cup Size 13mm | Φ0.8 |
| Number of Cores 25mm | 20 |
| Rated Voltage 25mm | AC300V/min |
| Rated Current 25mm | 2A |
| Insulation Resistance 25mm | MIN 1,000Ω |
| Pin Core Resistance 25mm | MAX 10Ω |
| Solder Cup Size 25mm | Φ0.8 |
