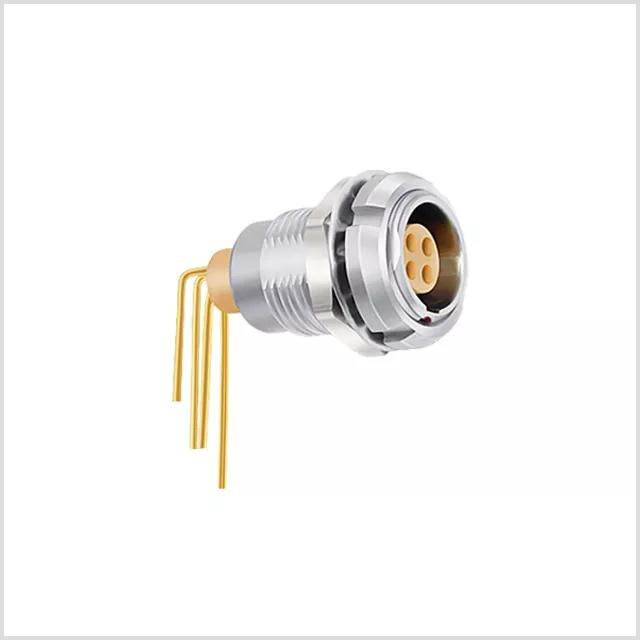

ECG Series Connectors
ECG series connectors are high-performance electrical connectors designed for reliable signal transmission and robust environmental resistance.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|

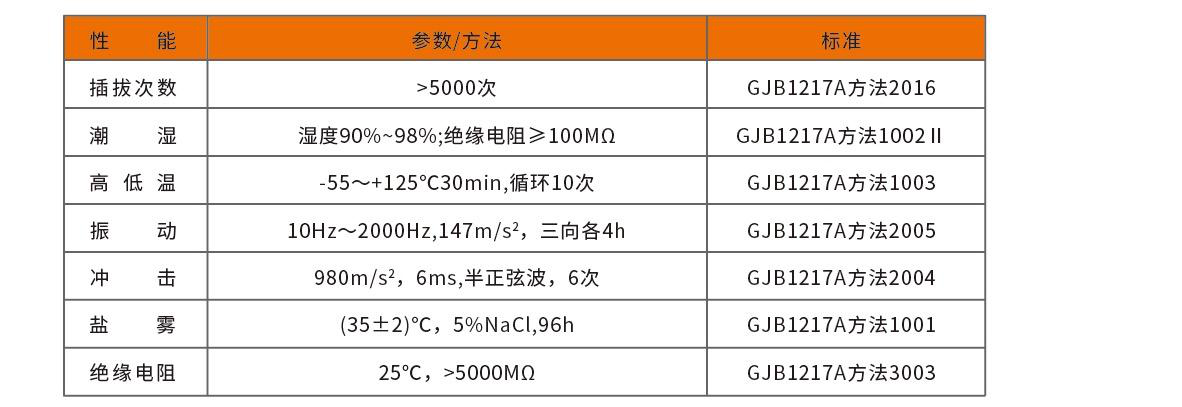

| Insertion Cycles | ＞5000次 |
| Humidity | 湿度90%-98%;绝缘电阻≥100MΩ |
| High and Low Temperature | -55~125°C,30min,循环10次 |
| Vibration | 10Hz~2000Hz,147m/s²,三向各4h |
| Shock | 980m/s²,6ms,半正弦波,6次 |
| Salt Spray | (35±2)°C,5%NaCl,96h |
| Insulation Resistance | 25°C,＞5000MΩ |

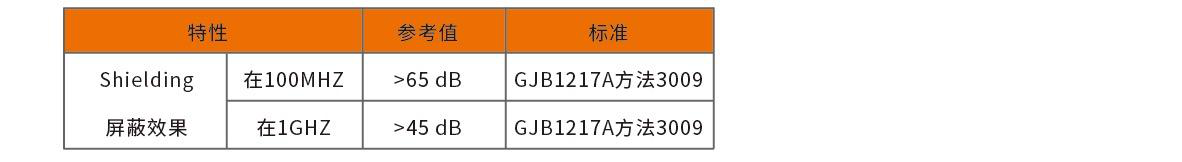

| Shielding Effectiveness at 100MHz | ＞65dB |
| Shielding Effectiveness at 1GHz | ＞45dB |

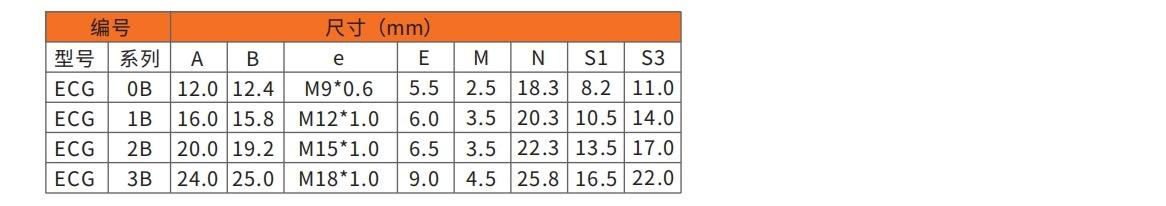

| Dimension A (mm) | 12.0,16.0,20.0,24.0 |
| Dimension B (mm) | 12.4,15.8,19.2,25.0 |
| Dimension e | M9*0.6,M12*1.0,M15*1.0,M18*1.0 |
| Dimension E (mm) | 5.5,6.0,6.5,9.0 |
| Dimension M (mm) | 2.5,3.5,3.5,4.5 |
| Dimension N (mm) | 18.3,20.3,22.3,25.8 |
| Dimension S1 (mm) | 8.2,10.5,13.5,16.5 |
| Dimension S3 (mm) | 11.0,14.0,17.0,22.0 |

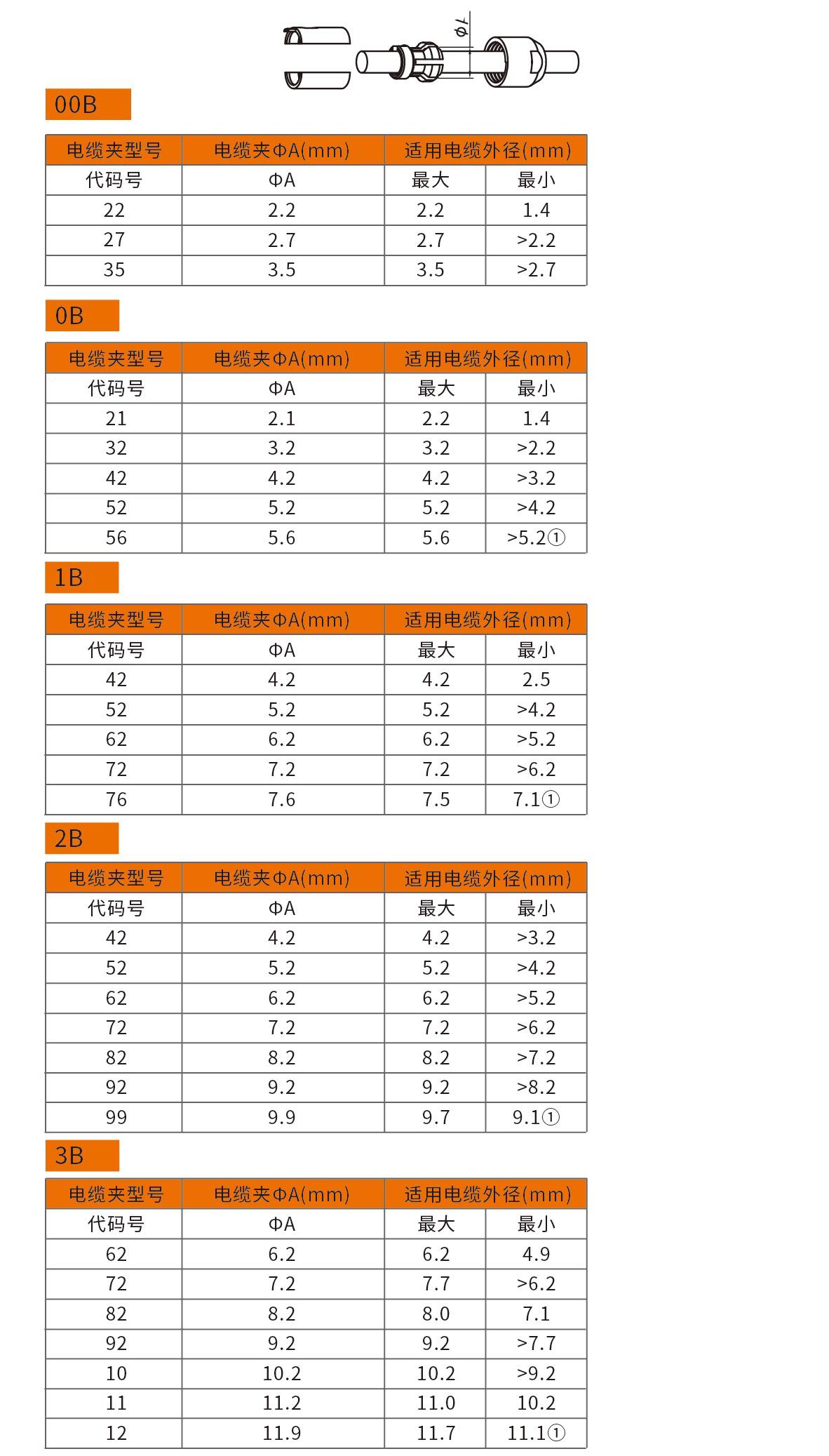

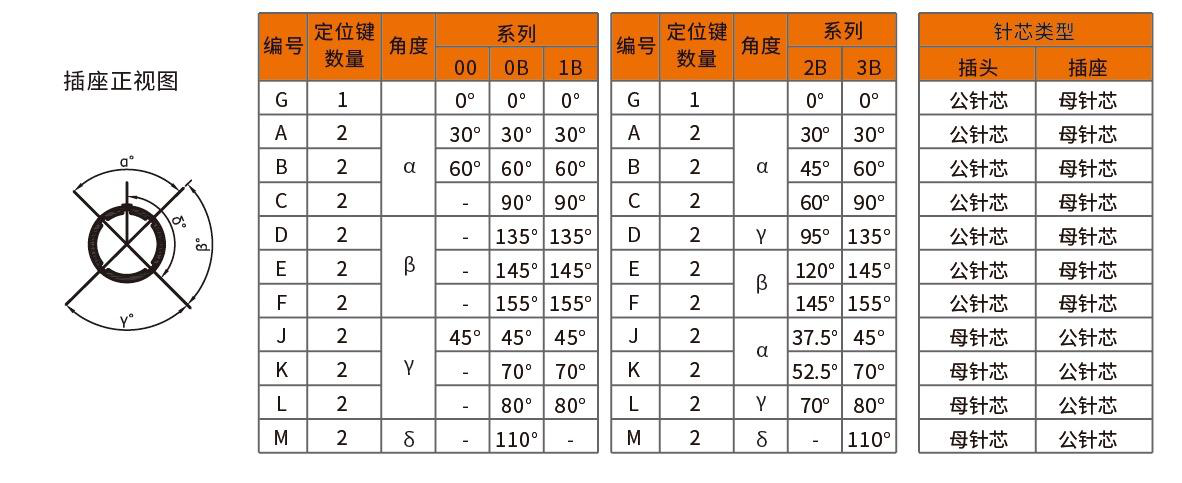

| Cable Clamp Diameter ΦA (mm) | 2.2,2.7,3.5,4.2,5.2,6.2,7.2,7.6,8.2,9.2,10.2,11.2,11.9 |
| Applicable Cable Outer Diameter (mm) | 1.4~11.1 |
| Pin Type | 公针芯,母针芯 |

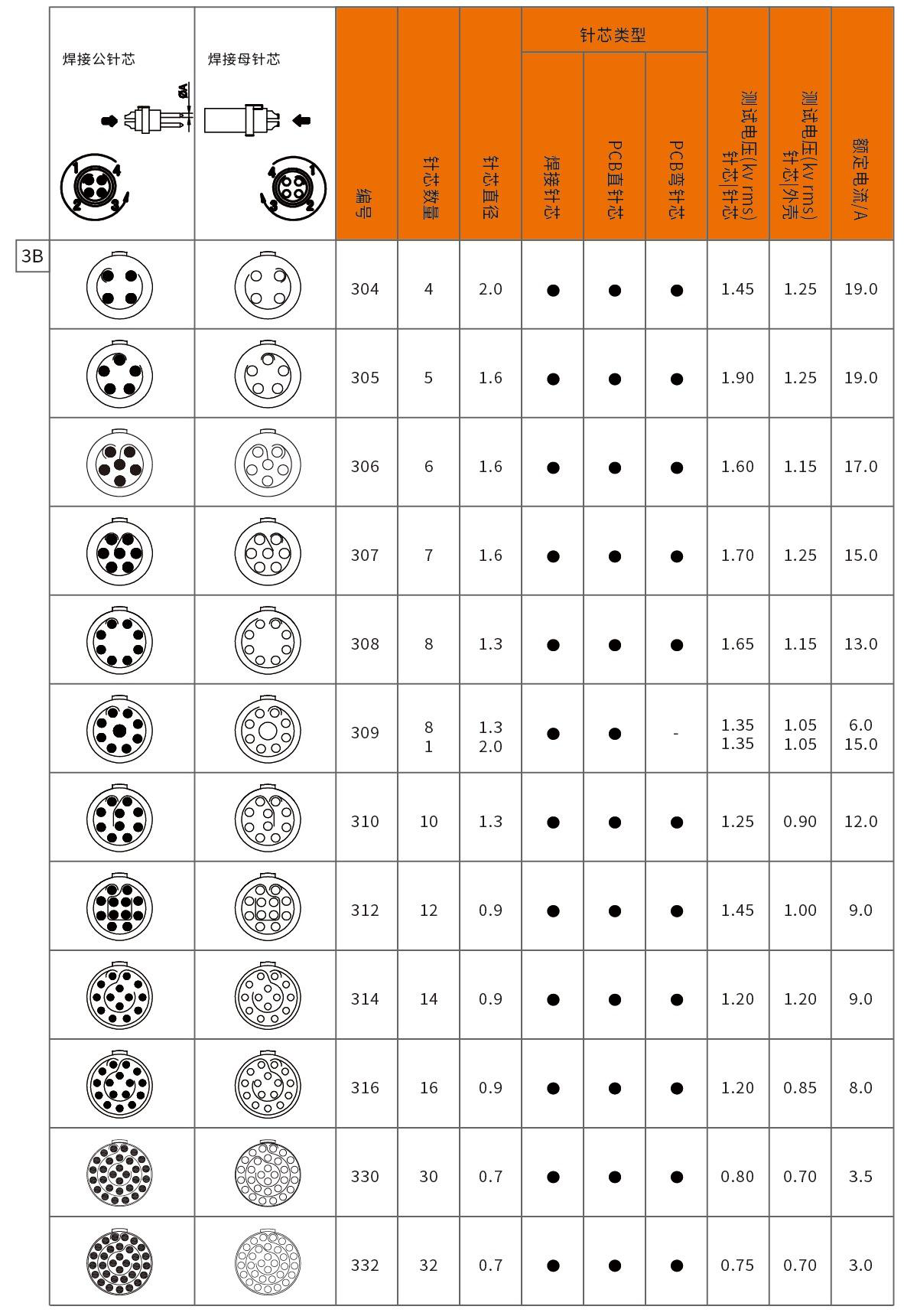

| Pin Count | 4,5,6,7,8,10,12,14,16,30,32 |
| Rated Current (A) | 3.0~19.0 |
