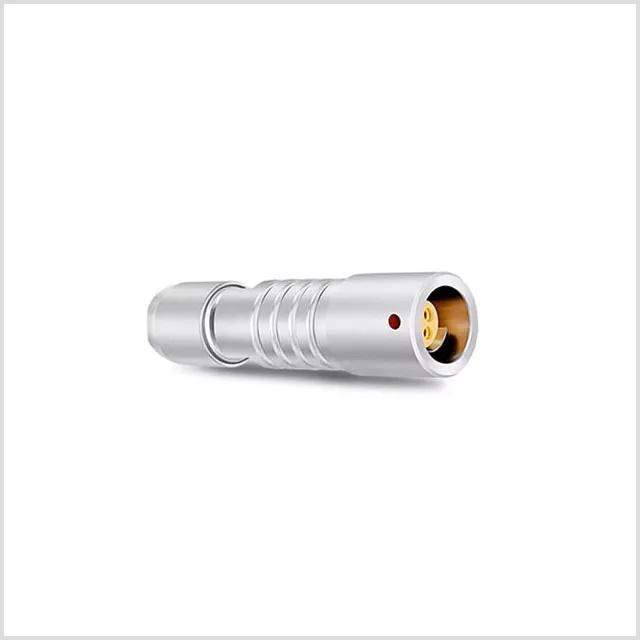

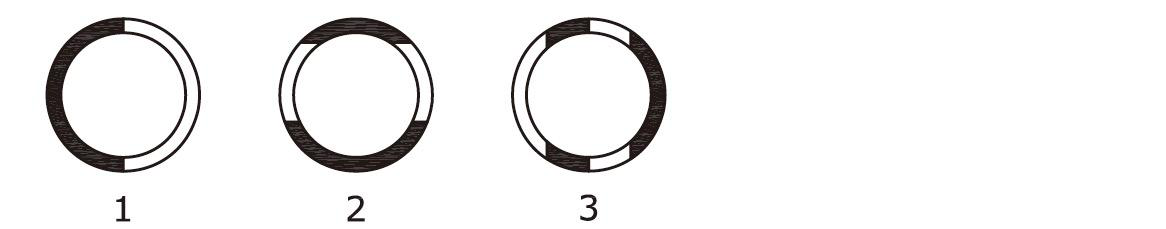

PGL Series Connectors
PGL series connectors are high-performance electrical connectors designed for reliable signal transmission in various demanding environments.
Save to Favorites
Overview
Specifications

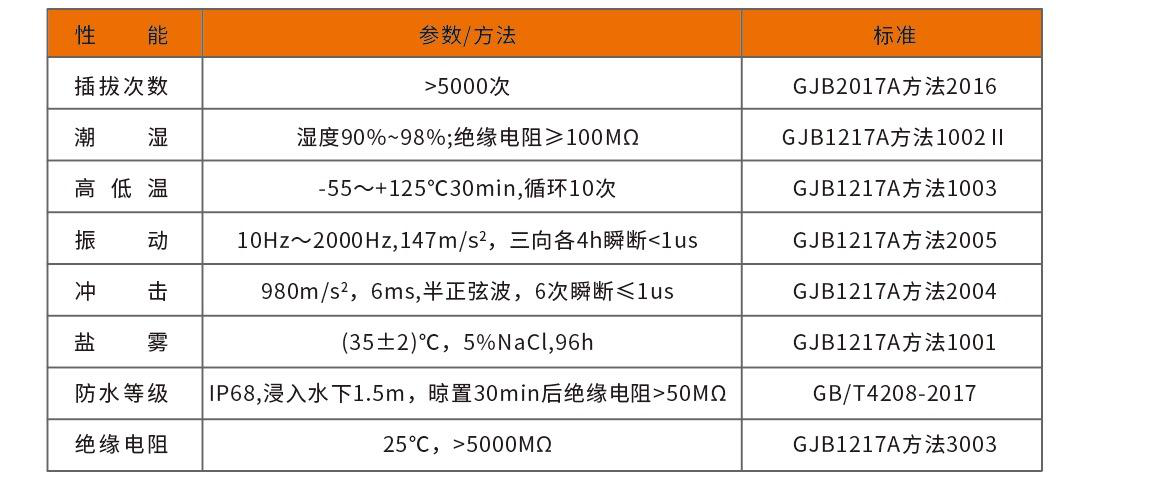

| Parameter | Value |
|---|---|
| Plugging Cycles | ＞5000次 |
| Humidity | 湿度90%~98%;绝缘电阻≥100MΩ |
| High and Low Temperature | -55~+125°C30min,循环10次 |
| Vibration | 10Hz~2000Hz,147m/s²,三向各4h瞬断＜1us |
| Shock | 980m/s²,6ms,半正弦波,6次瞬断＜1us |
| Salt Spray | (35±2)°C,5%NaCl,96h |
| Waterproof Level | IP68,浸入水下1.5m,喷置30min后绝缘电阻＞50MΩ |
| Insulation Resistance | 25°C,＞5000MΩ |

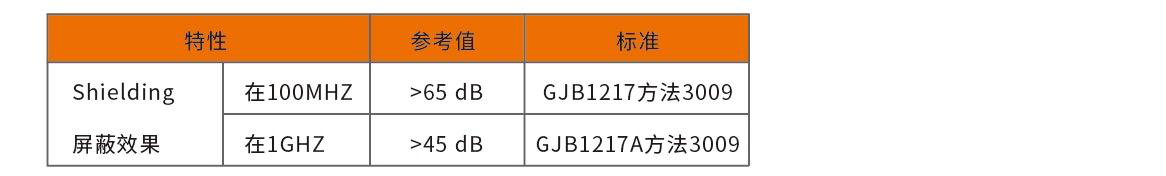

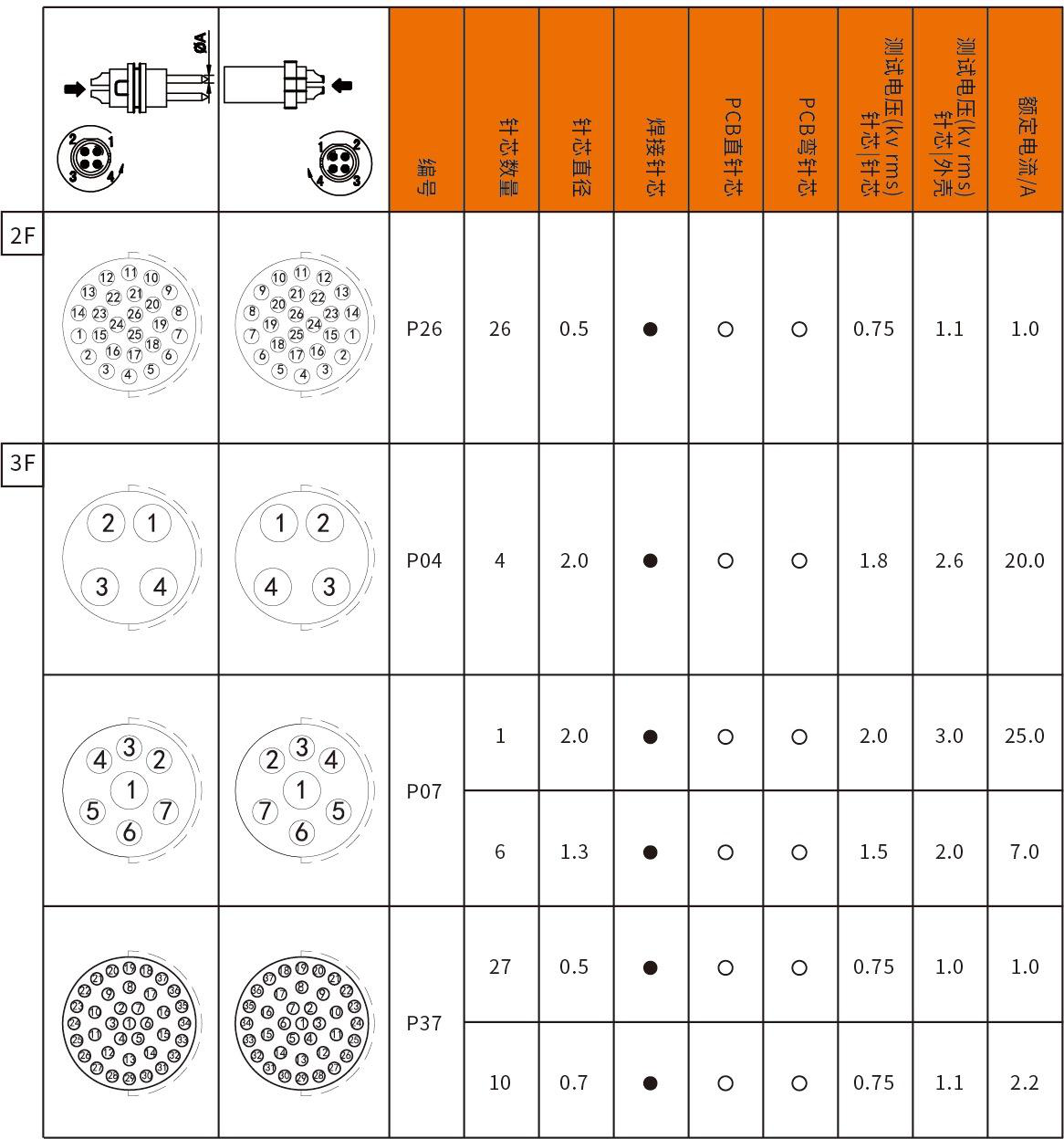

| Shielding Effectiveness at 100MHz | ＞65dB |
| Shielding Effectiveness at 1GHz | ＞45dB |
| Series | 0F,1F,AF,2F |

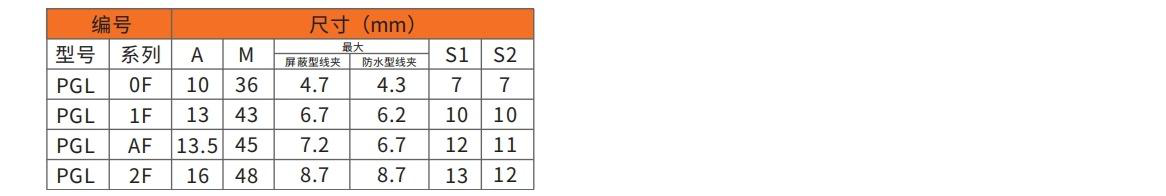

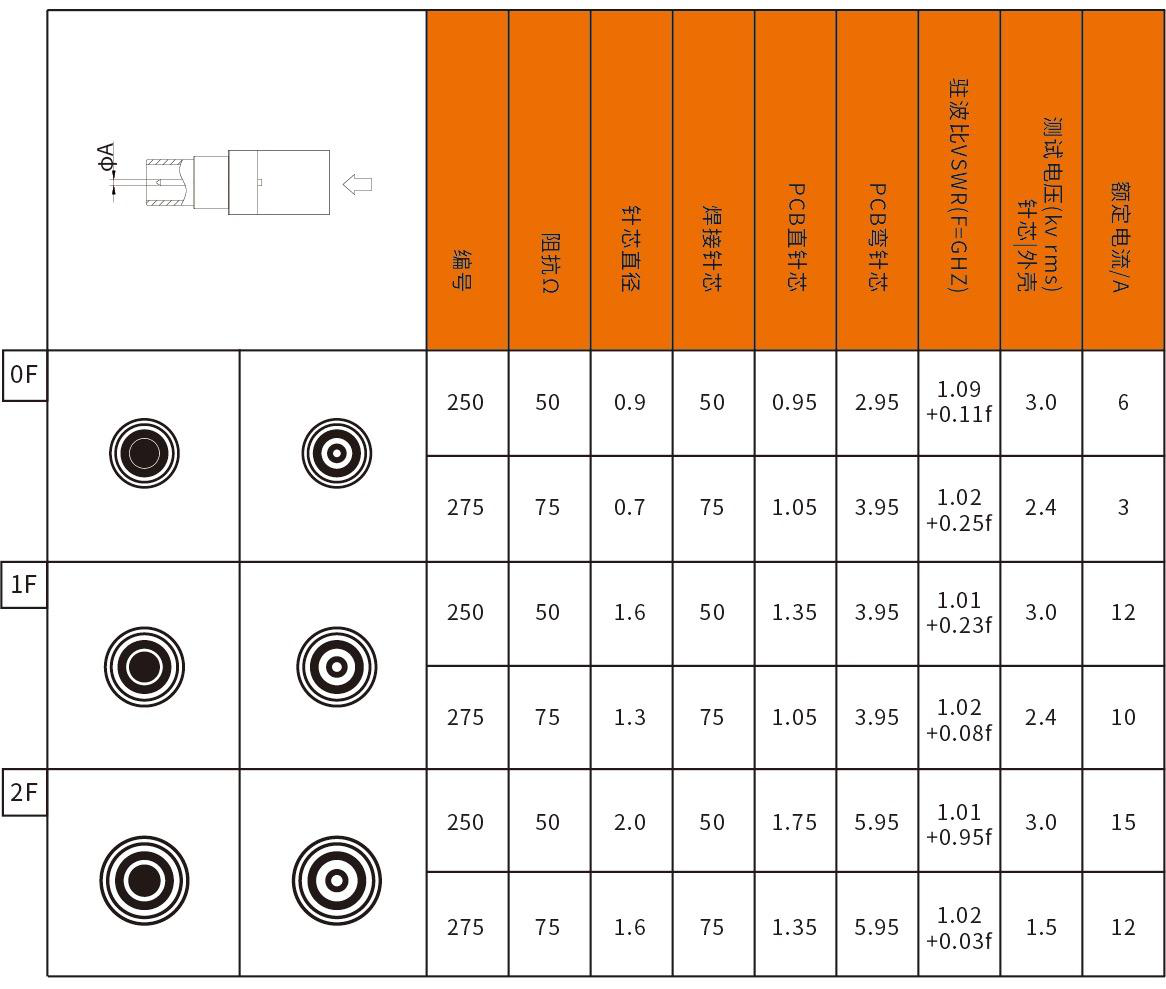

| Dimension A (mm) | 10,13,13.5,16 |
| Dimension M (mm) | 36,43,45,48 |
| Max Shielded Cable Diameter (mm) | 4.7,6.7,7.2,8.7 |
| Max Waterproof Cable Diameter (mm) | 4.3,6.2,6.7,8.7 |
| Dimension S1 (mm) | 7,10,12,13 |
| Dimension S2 (mm) | 7,10,11,12 |
| Rated Current (A) | 6,12,15,20 |
| Test Voltage (kVrms) | 1.09+0.11f,1.01+0.23f,1.01+0.95f,1.02+0.03f |
