FGK Series Connectors
FGK series connectors are high-performance, durable, and reliable solutions designed for various demanding applications. They offer excellent shielding, high insertion/extraction cycles, and robust environmental resistance.
Save to Favorites
Overview
Specifications

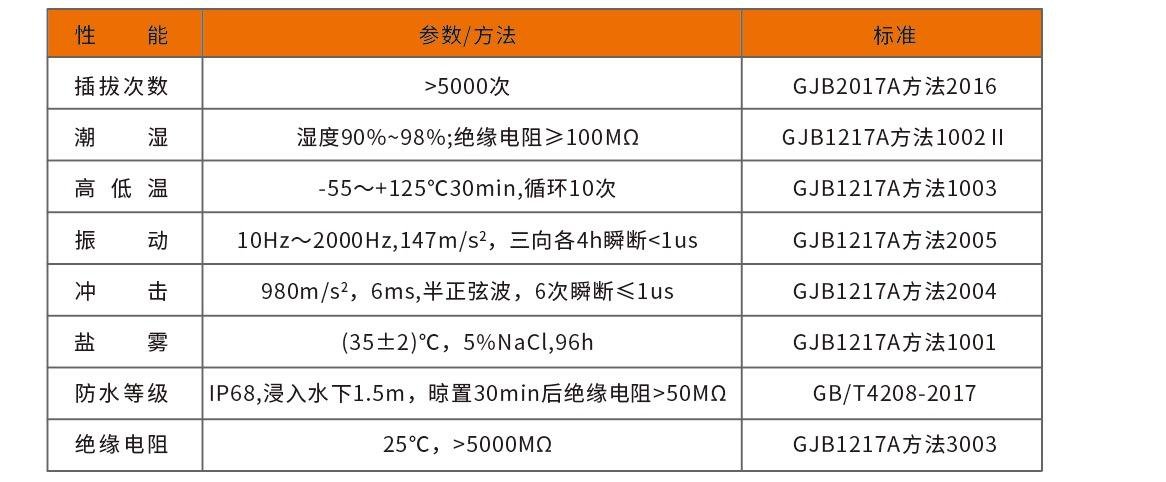

| Parameter | Value |
|---|---|
| Insertion/Extraction Cycles | >5000次 |
| Humidity Resistance | 湿度90%~98%;绝缘电阻≥100MΩ |
| High and Low Temperature Resistance | -55~+125°C30min,循环10次 |
| Vibration Resistance | 10Hz~2000Hz,147m/s²,三向各4h瞬断<1us |
| Shock Resistance | 980m/s²,6ms,半正弦波,6次瞬断<1us |
| Salt Spray Resistance | (35±2)°C,5%NaCl,96h |
| Waterproof Rating | IP68,浸入水下1.5m,喷置30min后绝缘电阻>50MΩ |
| Insulation Resistance | 25°C,>5000MΩ |

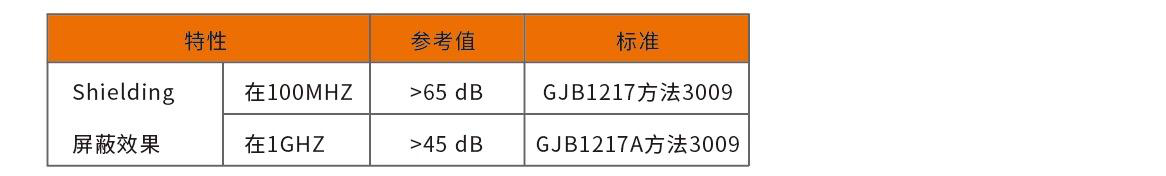

| Shielding Effectiveness at 100MHz | >65dB |
| Shielding Effectiveness at 1GHz | >45dB |

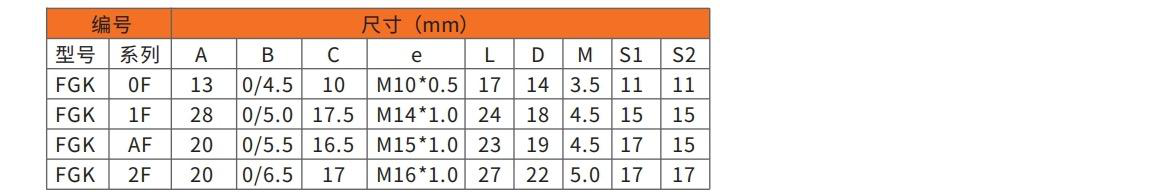

| Dimension A | 13, 28, 20, 20 |
| Dimension B | 0/4.5, 0/5.0, 0/5.5, 0/6.5 |
| Dimension C | 10, 17.5, 16.5, 17 |
| Thread Size | M10*0.5, M14*1.0, M15*1.0, M16*1.0 |
| Dimension L | 17, 24, 23, 27 |
| Dimension D | 14, 18, 19, 22 |
| Dimension M | 3.5, 4.5, 4.5, 5.5 |
| Dimension S1 | 11, 15, 17, 17 |
| Dimension S2 | 11, 15, 15, 17 |

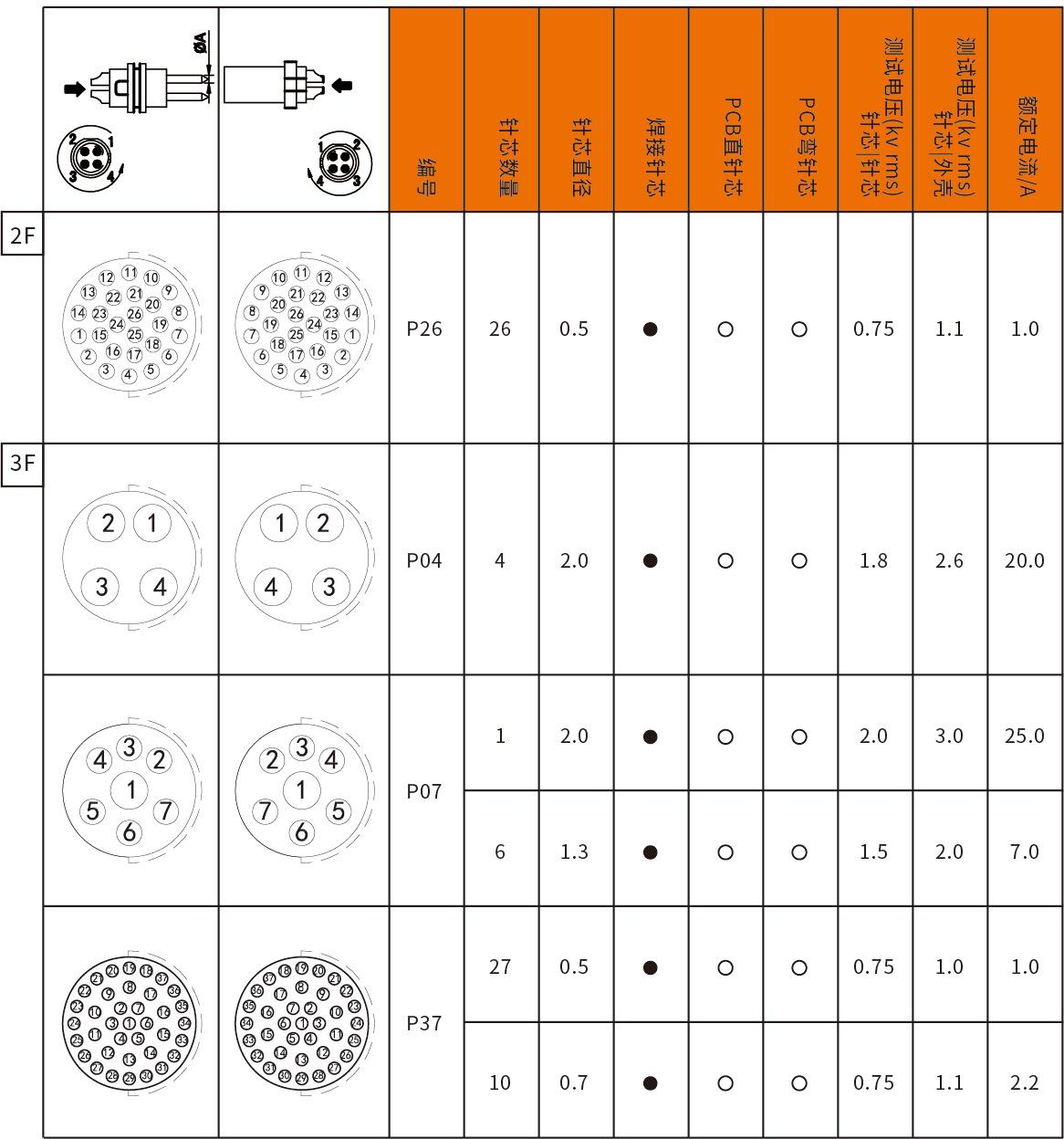

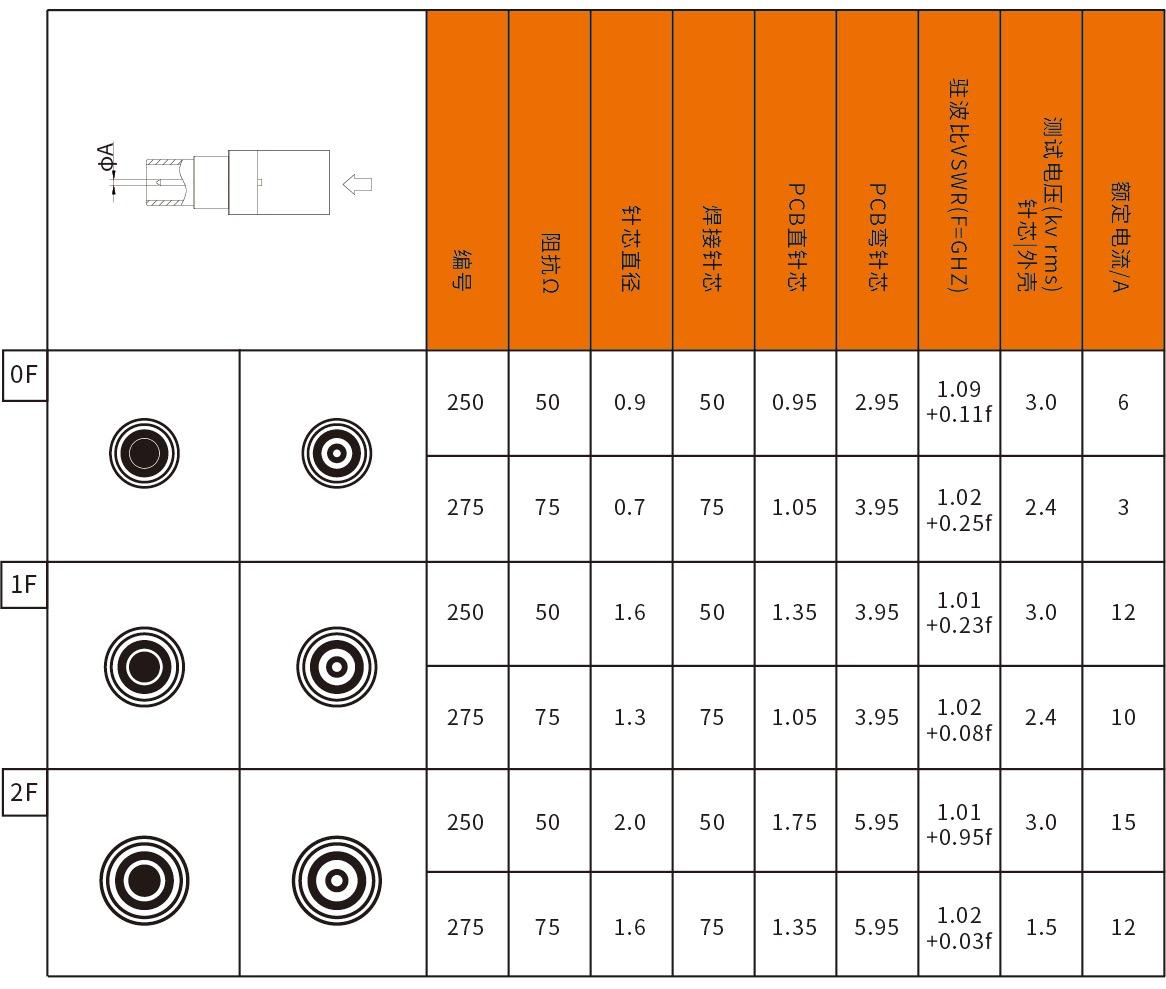

| Rated Current (A) | 6, 3, 12, 10, 15, 20, 25, 7, 2.2 |
| Test Voltage (kVrms) | 1.09+0.11f, 1.02+0.25f, 1.01+0.23f, 1.02+0.08f, 1.01+0.95f, 1.02+0.03f, 1.8, 2.0, 0.75 |
| Contact Type | P26, P04, P07, P37 |
| Conductor Resistance | 0.5, 2.0, 1.3, 0.7 |
| PCB Straight Core | 0.75, 1.8, 1.5, 0.75 |
| PCB Bent Core | 1.1, 2.6, 2.0, 1.1 |
