FG8 Series Connectors
FG8 series connectors are high-performance electrical connectors designed for demanding environments. They offer excellent durability, shielding, and resistance to harsh conditions.
Save to Favorites
Overview
Specifications

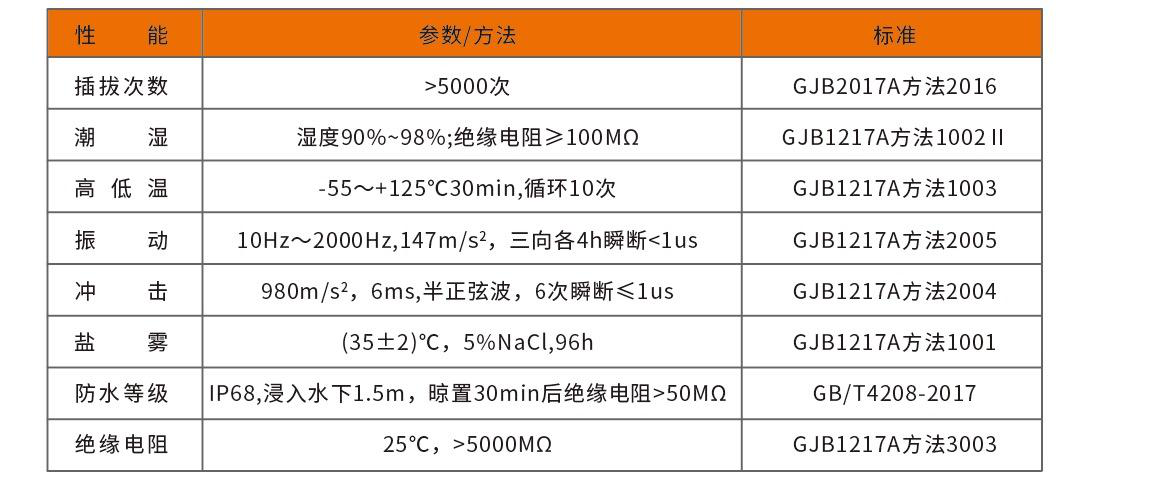

| Parameter | Value |
|---|---|
| Mating Cycles | ＞5000次 |
| Humidity | 湿度90%~98%;绝缘电阻≥100MΩ |
| High and Low Temperature | -55~+125°C30min,循环10次 |
| Vibration | 10Hz~2000Hz,147m/s²,三向各4h瞬断＜1us |
| Shock | 980m/s²,6ms,半正弦波,6次瞬断＜1us |
| Salt Spray | (35±2)°C,5%NaCl,96h |
| Waterproof Level | IP68,浸入水下1.5m,喷置30min后绝缘电阻＞50MΩ |
| Insulation Resistance | 25°C,＞5000MΩ |

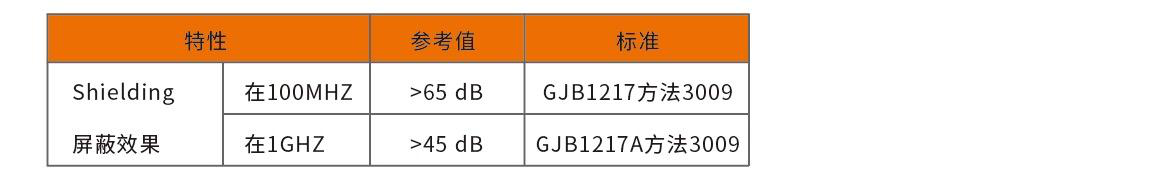

| Shielding Effectiveness at 100MHz | ＞65dB |
| Shielding Effectiveness at 1GHz | ＞45dB |

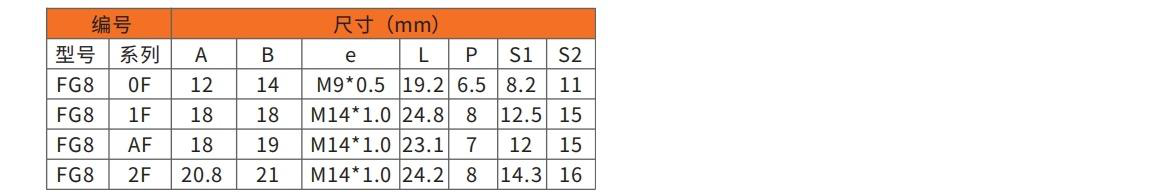

| Model 0F A | 12 |
| Model 0F B | 14 |
| Model 0F e | M9*0.5 |
| Model 0F L | 19.2 |
| Model 0F P | 6.5 |
| Model 0F S1 | 8.2 |
| Model 0F S2 | 11 |
| Model 1F A | 18 |
| Model 1F B | 18 |
| Model 1F e | M14*1.0 |
| Model 1F L | 24.8 |
| Model 1F P | 8 |
| Model 1F S1 | 12.5 |
| Model 1F S2 | 15 |
| Model AF A | 18 |
| Model AF B | 19 |
| Model AF e | M14*1.0 |
| Model AF L | 23.1 |
| Model AF P | 7 |
| Model AF S1 | 12 |
| Model AF S2 | 15 |
| Model 2F A | 20.8 |
| Model 2F B | 21 |
| Model 2F e | M14*1.0 |
| Model 2F L | 24.2 |
| Model 2F P | 8 |
| Model 2F S1 | 14.3 |
| Model 2F S2 | 16 |
