FG7 Series Connectors
FG7 series connectors are high-performance electrical connectors designed for demanding environments, offering excellent durability, shielding, and waterproof capabilities.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|

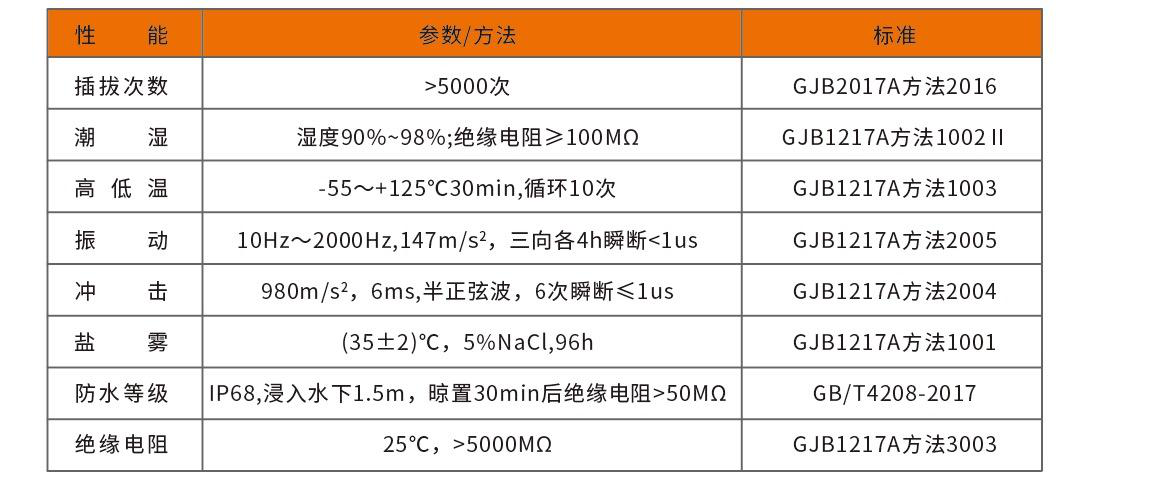

| Insertion Cycles | ＞5000次 |
| Humidity | 湿度90%~98%;绝缘电阻≥100MΩ |
| High and Low Temperature | -55~+125°C30min,循环10次 |
| Vibration | 10Hz~2000Hz,147m/s²,三向各4h瞬断＜1us |
| Shock | 980m/s²,6ms,半正弦波,6次瞬断＜1us |
| Salt Spray | (35±2)°C,5%NaCl,96h |
| Waterproof Level | IP68,浸入水下1.5m,喷置30min后绝缘电阻＞50MΩ |
| Insulation Resistance | 25°C,＞5000MΩ |

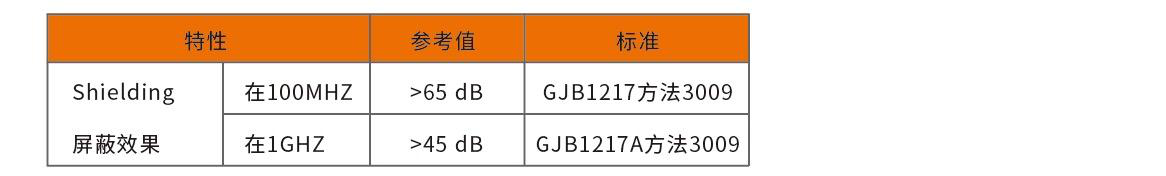

| Shielding Effectiveness at 100MHz | ＞65dB |
| Shielding Effectiveness at 1GHz | ＞45dB |
| Model | 0F,1F,AF,2F |

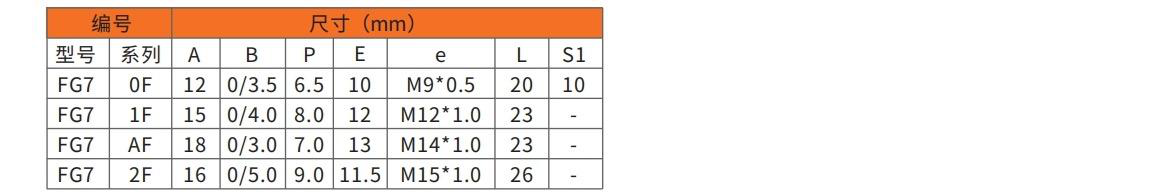

| Dimension A (mm) | 12,15,18,16 |
| Dimension B (mm) | 0/3.5,0/4.0,0/3.0,0/5.0 |
| Dimension P (mm) | 6.5,8.0,7.0,9.0 |
| Dimension E (mm) | 10,12,13,11.5 |
| Dimension e | M9*0.5,M12*1.0,M14*1.0,M15*1.0 |
| Dimension L (mm) | 20,23,23,26 |
| Dimension S1 (mm) | 10,-,-,- |
| Combined | 250,275 |
| U-Type Impedance | 50,75 |

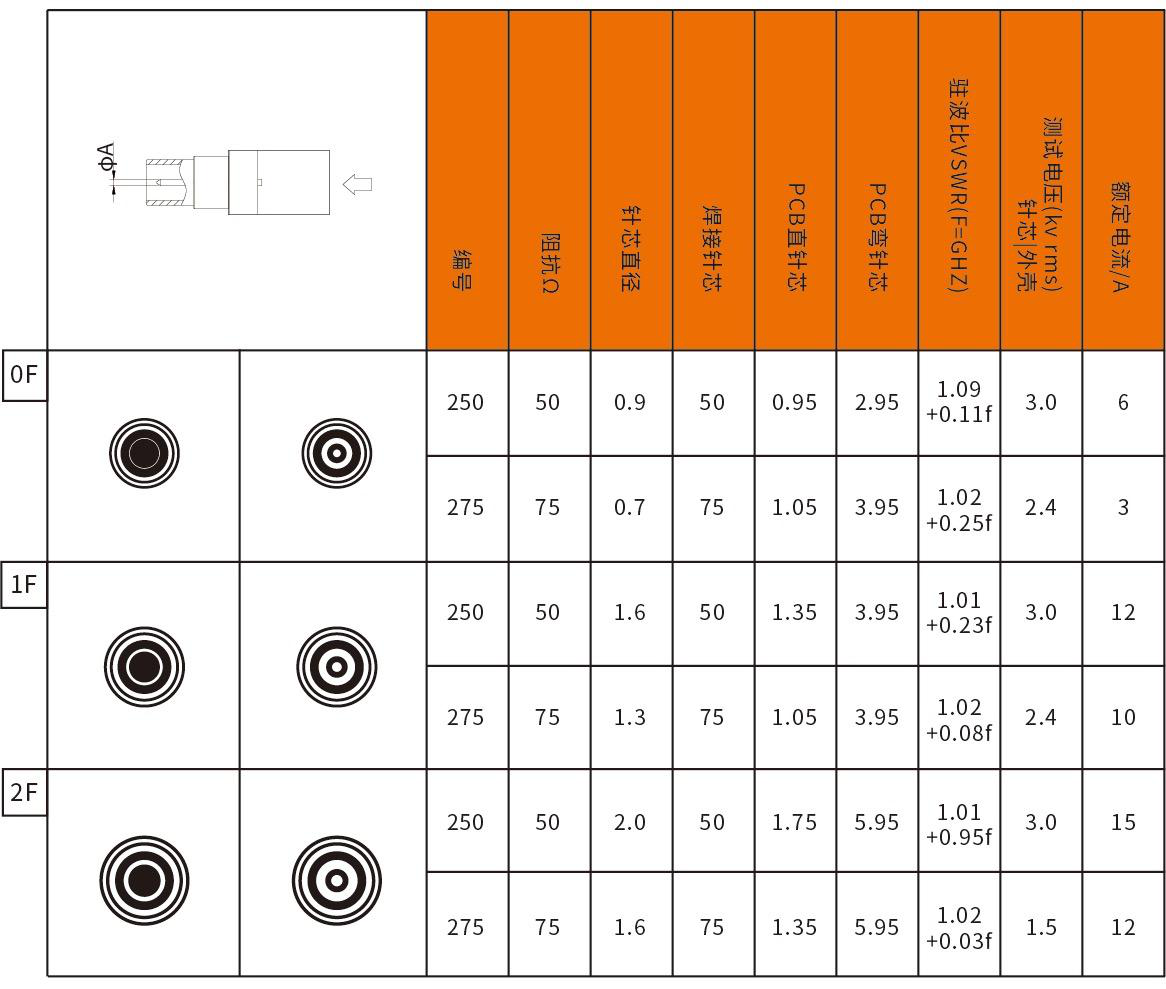

| No-Load Current | 0.9,0.7,1.6,1.3,2.0,1.6 |
| No-Load Power | 50,75 |
| PCB DC Core | 2.95,3.95,1.35,5.95 |
| PCB Equivalent Core | 1.09+0.11f,1.02+0.25f,1.01+0.23f,1.02+0.08f,1.01+0.95f,1.02+0.03f |
| Rated Current A | 3.0,2.4,3.0,2.4,3.0,1.5,12,10,15,12 |

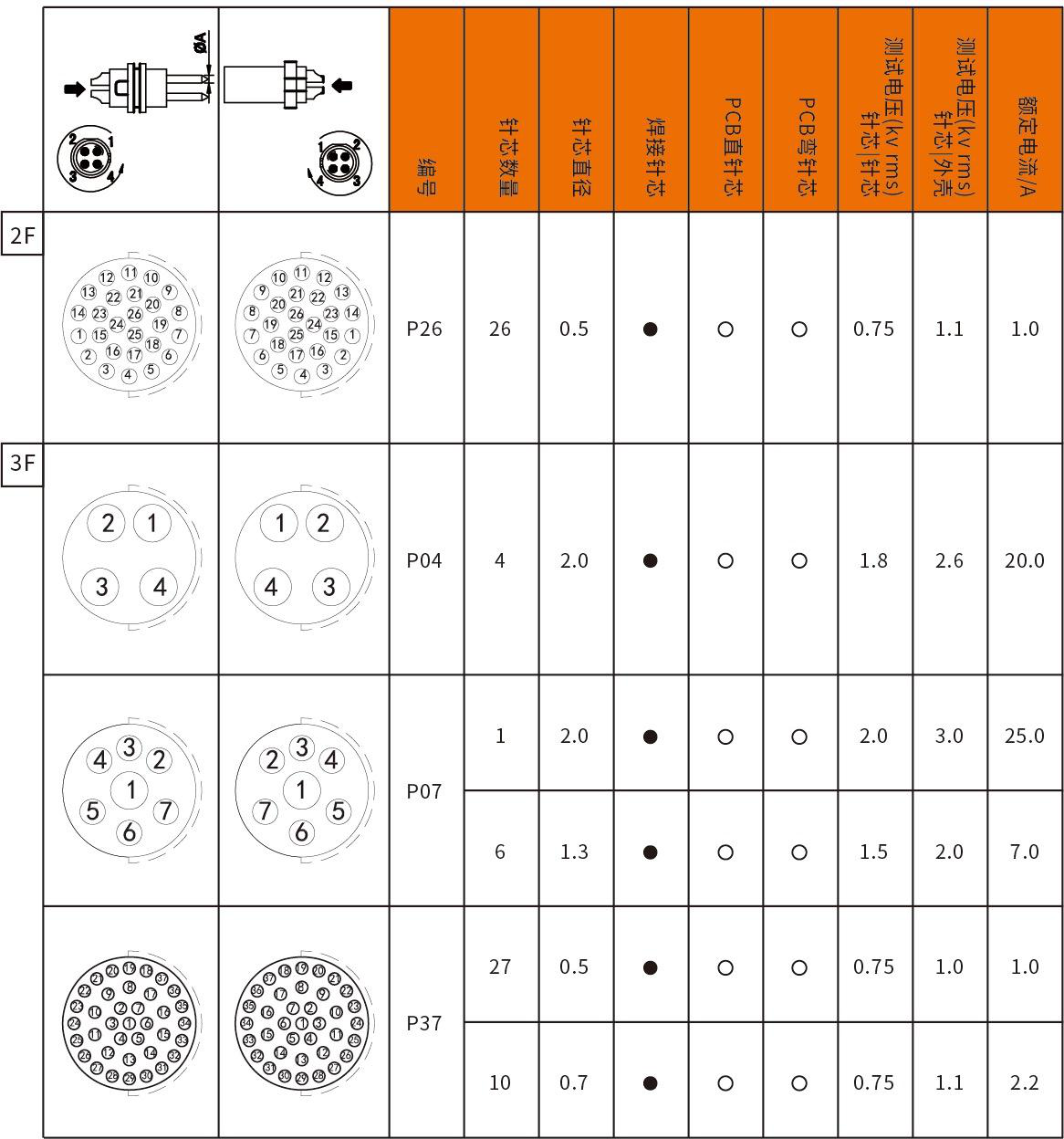

| Platform | P26,P04,P07,P37 |
| Rated Voltage A | 1.0,20.0,25.0,7.0,1.0,2.2 |
