FG2 Series Connectors
FG2 series connectors are high-performance, durable, and versatile solutions designed for demanding environments. They offer excellent shielding, waterproof capabilities, and reliable electrical performance.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|

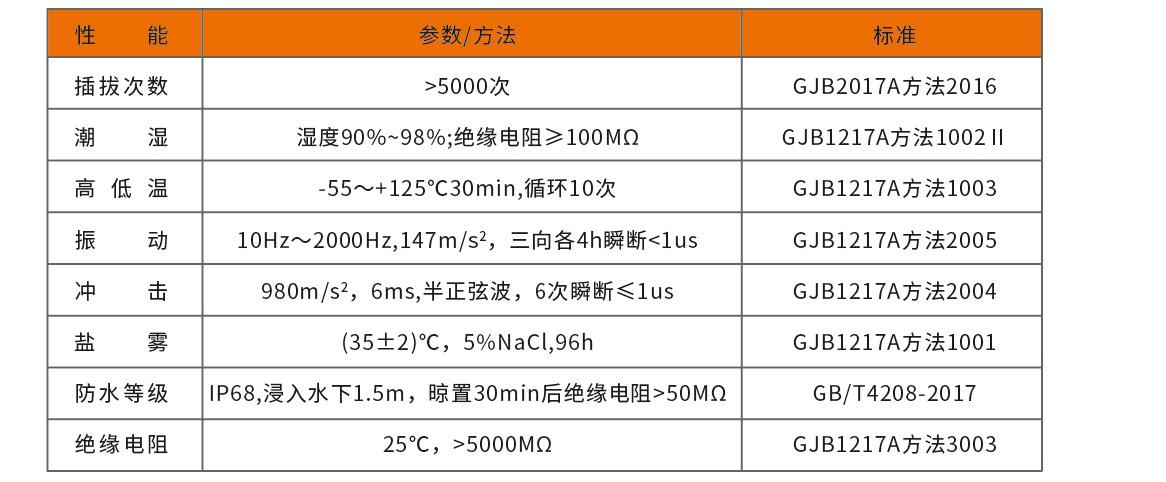

| Plugging Cycles | ＞5000次 |
| Humidity | 湿度90%~98%;绝缘电阻≥100MΩ |
| High and Low Temperature | -55~+125°C30min,循环10次 |
| Vibration | 10Hz~2000Hz,147m/s²,三向各4h瞬断＜1us |
| Shock | 980m/s²,6ms,半正弦波,6次瞬断＜1us |
| Salt Spray | (35±2)°C,5%NaCl,96h |
| Waterproof Level | IP68,浸入水下1.5m,喷置30min后绝缘电阻＞50MΩ |
| Insulation Resistance | 25°C,＞5000MΩ |

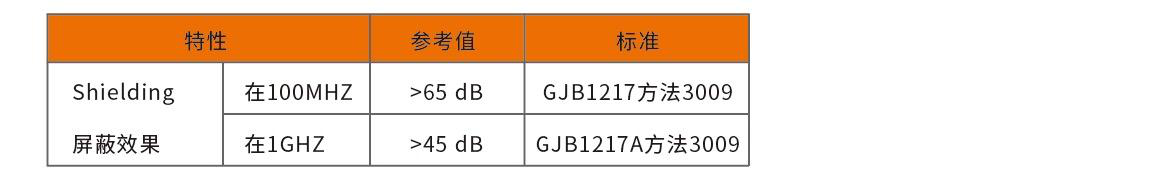

| Shielding Effectiveness at 100MHz | ＞65dB |
| Shielding Effectiveness at 1GHz | ＞45dB |

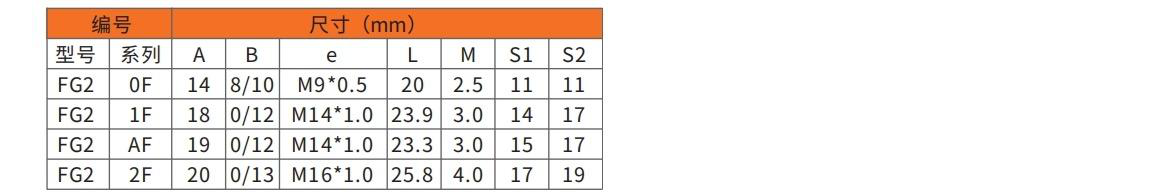

| Model 0F Size A | 14 |
| Model 0F Size B | 8/10 |
| Model 0F Size e | M9*0.5 |
| Model 0F Size L | 20 |
| Model 0F Size M | 2.5 |
| Model 0F Size S1 | 11 |
| Model 0F Size S2 | 11 |
| Model 1F Size A | 18 |
| Model 1F Size e | M14*1.0 |
| Model 1F Size L | 23.9 |
| Model 1F Size M | 3.0 |
| Model 1F Size S1 | 14 |
| Model 1F Size S2 | 17 |
| Model AF Size A | 19 |
| Model AF Size e | M14*1.0 |
| Model AF Size L | 23.3 |
| Model AF Size M | 3.0 |
| Model AF Size S1 | 15 |
| Model AF Size S2 | 17 |
| Model 2F Size A | 20 |
| Model 2F Size e | M16*1.0 |
| Model 2F Size L | 25.8 |
| Model 2F Size M | 4.0 |
| Model 2F Size S1 | 17 |
| Model 2F Size S2 | 19 |

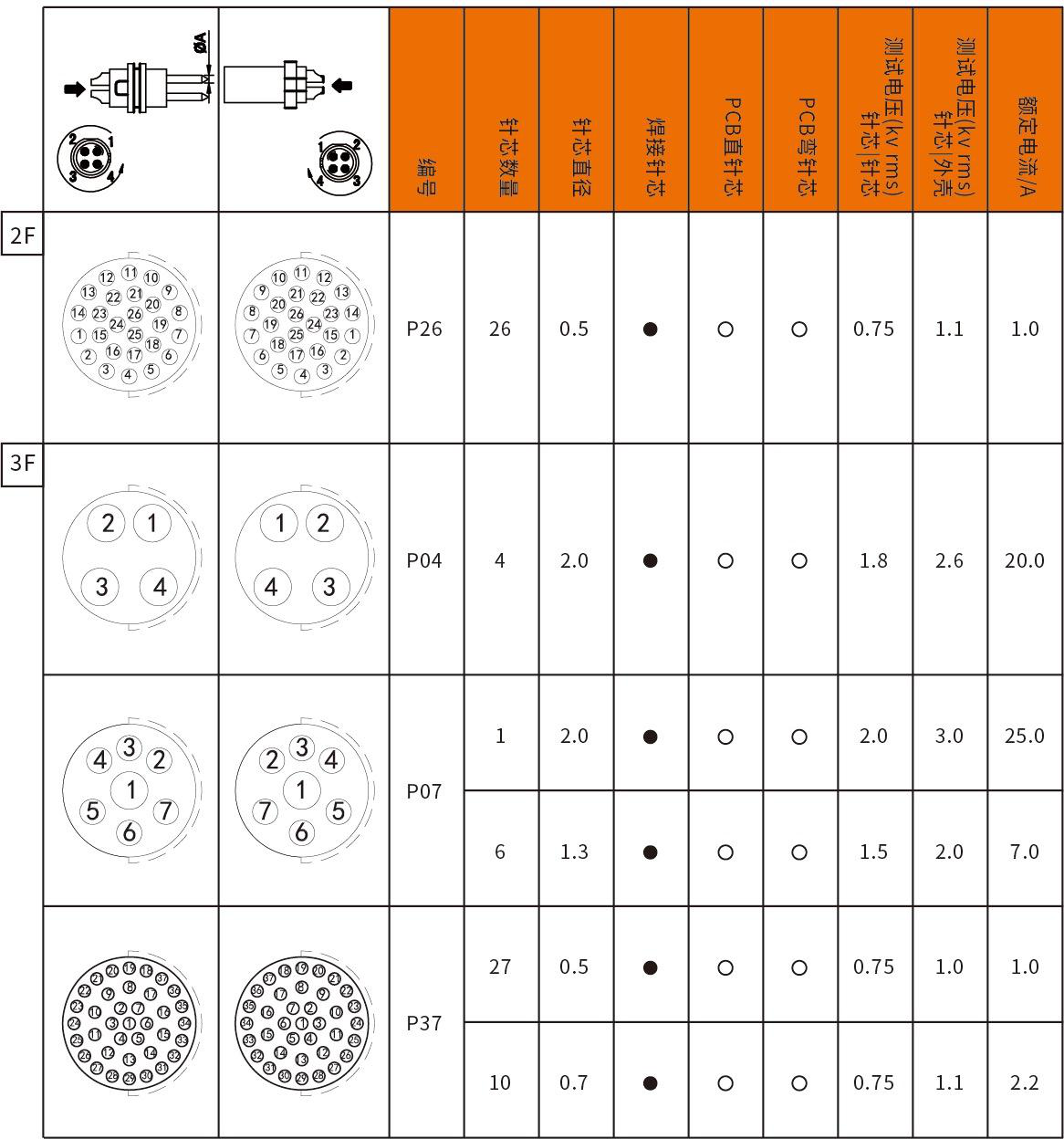

| Model 0F Rated Voltage A | 6 |
| Model 1F Rated Voltage A | 12 |
| Model 2F Rated Voltage A | 1.0 |
| Model 3F Rated Voltage A | 2.2 |
