FG1 Series Connectors
FG1 series connectors are high-performance electrical connectors designed for demanding environments. They offer excellent durability, shielding, and environmental resistance.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|

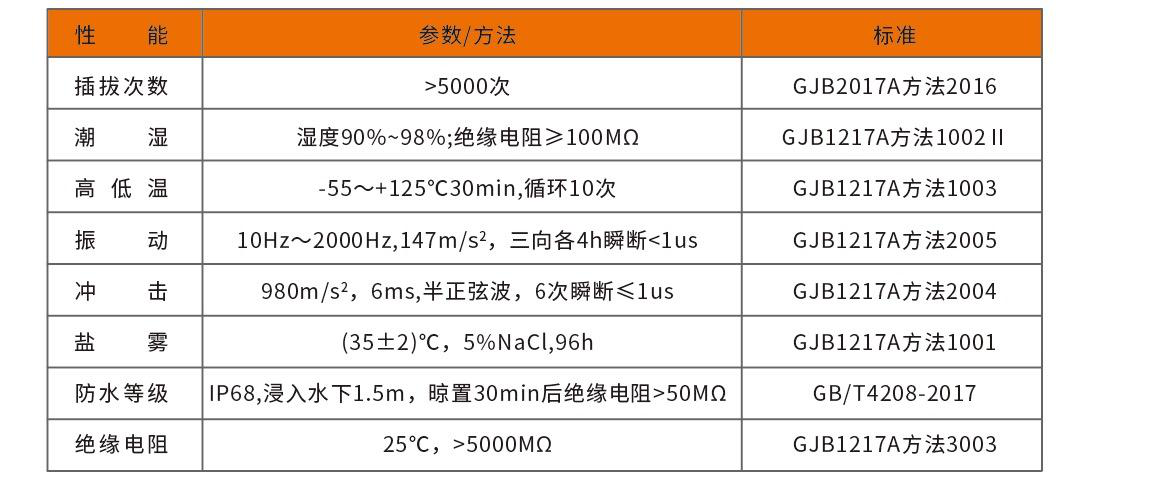

| Insertion Cycles | ＞5000次 |
| Humidity | 湿度90%~98%;绝缘电阻≥100MΩ |
| High and Low Temperature | -55~+125°C30min,循环10次 |
| Vibration | 10Hz~2000Hz,147m/s²,三向各4h瞬断＜1us |
| Shock | 980m/s²,6ms,半正弦波,6次瞬断＜1us |
| Salt Spray | (35±2)°C,5%NaCl,96h |
| Waterproof Level | IP68,浸入水下1.5m,喷置30min后绝缘电阻＞50MΩ |
| Insulation Resistance | 25°C,＞5000MΩ |

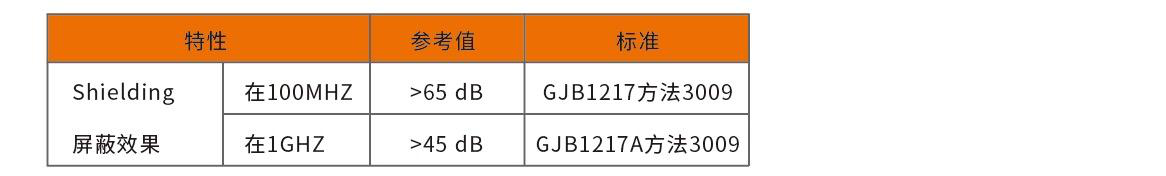

| Shielding Effectiveness at 100MHz | ＞65dB |
| Shielding Effectiveness at 1GHz | ＞45dB |

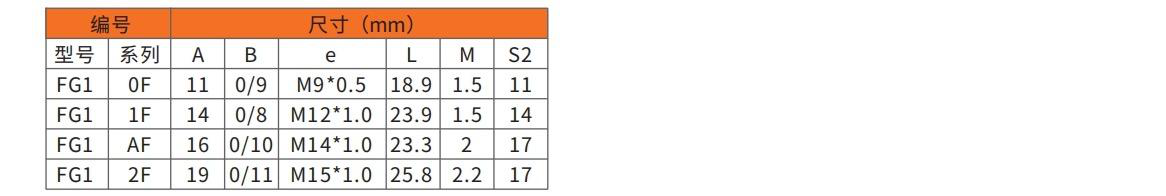

| Model 0F A | 11 |
| Model 0F e | M9*0.5 |
| Model 0F L | 18.9 |
| Model 0F M | 1.5 |
| Model 0F S2 | 11 |
| Model 1F A | 14 |
| Model 1F e | M12*1.0 |
| Model 1F L | 23.9 |
| Model 1F M | 1.5 |
| Model 1F S2 | 14 |
| Model AF A | 16 |
| Model AF e | M14*1.0 |
| Model AF L | 23.3 |
| Model AF M | 2 |
| Model AF S2 | 17 |
| Model 2F A | 19 |
| Model 2F e | M15*1.0 |
| Model 2F L | 25.8 |
| Model 2F M | 2.2 |
| Model 2F S2 | 17 |
| Rated Current 0F | 3.0 |
| Rated Current 1F | 3.0 |
| Rated Current 2F | 3.0 |

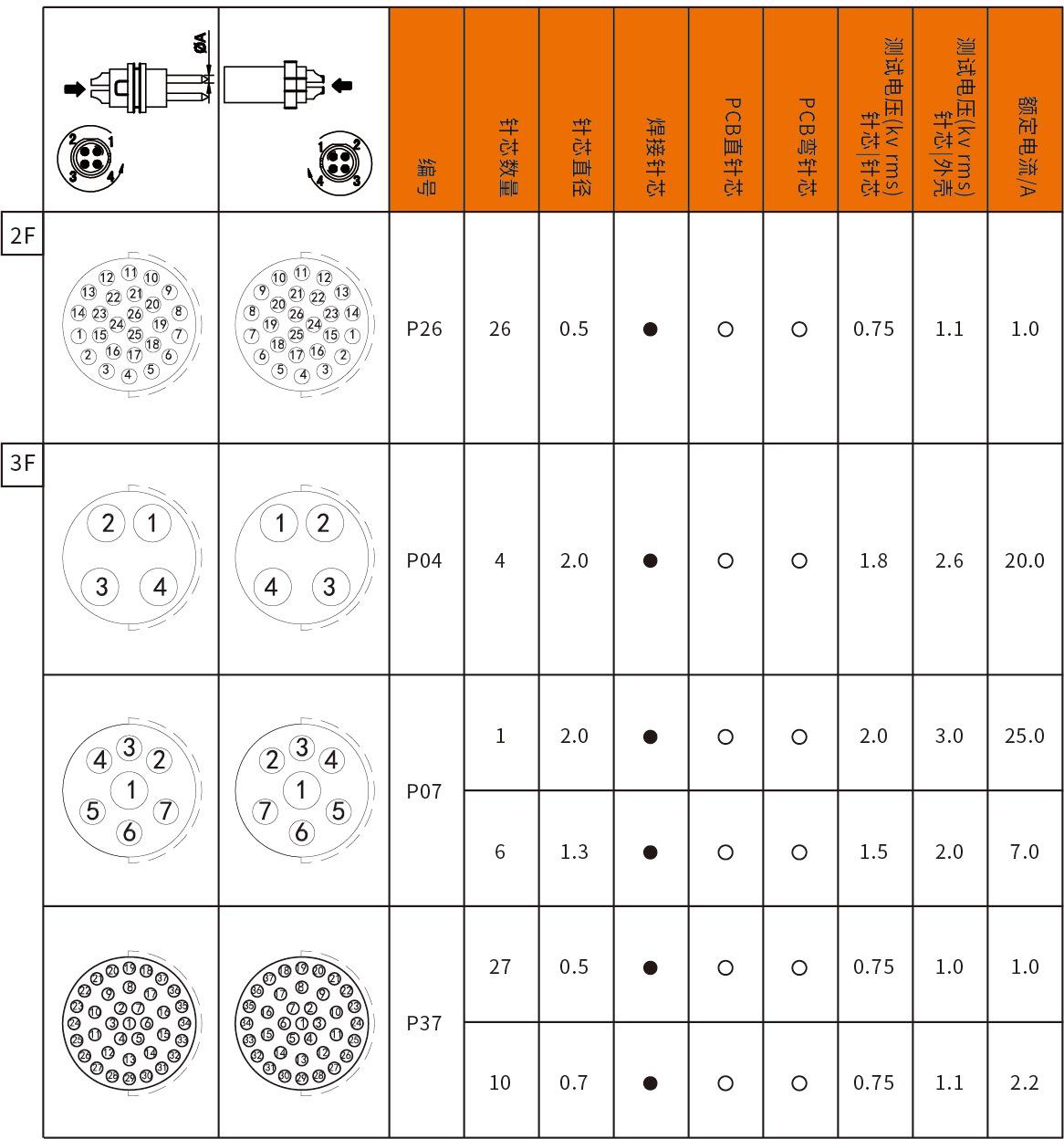

| Rated Current 2F P26 | 1.0 |
| Rated Current 3F P04 | 20.0 |
| Rated Current 3F P07 | 25.0 |
| Rated Current 3F P37 | 2.2 |
| Test Voltage (kVrms) 0F | 1.09+0.11f |
| Test Voltage (kVrms) 1F | 1.01+0.23f |
| Test Voltage (kVrms) 2F | 1.01+0.95f |
| Test Voltage (kVrms) 2F P26 | 1.1 |
| Test Voltage (kVrms) 3F P04 | 2.6 |
| Test Voltage (kVrms) 3F P07 | 3.0 |
| Test Voltage (kVrms) 3F P37 | 1.1 |
