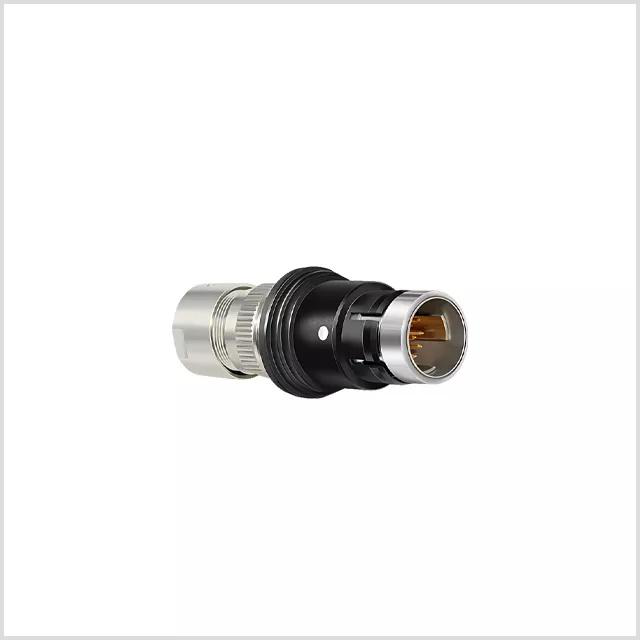

FSA Series Connectors
FSA series connectors are high-performance electrical connectors designed for reliable signal transmission in harsh environments.
Save to Favorites
Overview
Specifications

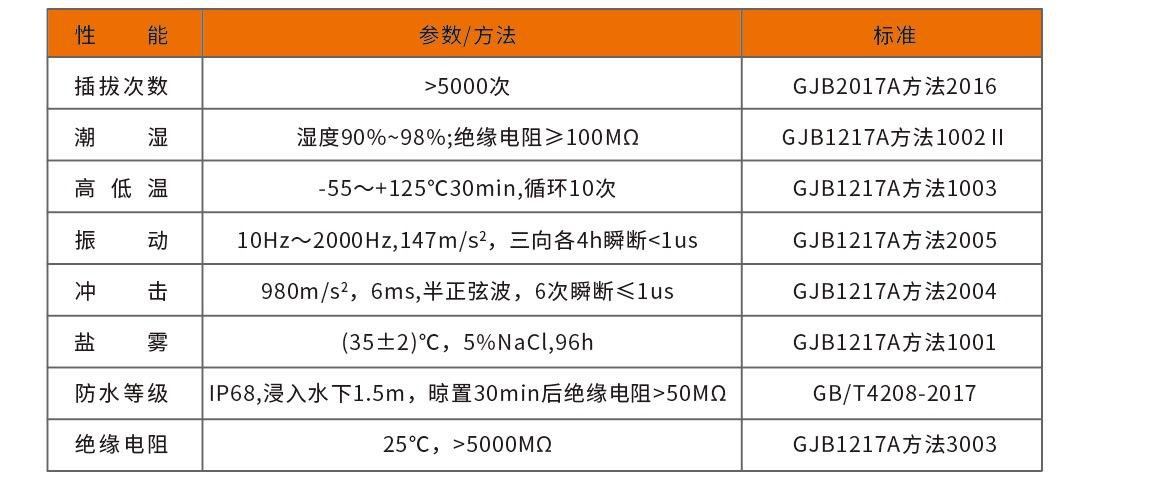

| Parameter | Value |
|---|---|
| Plugging Cycles | ＞5000次 |
| Humidity | 湿度90%~98%;绝缘电阻≥100MΩ |
| High and Low Temperature | -55~+125°C30min,循环10次 |
| Vibration | 10Hz~2000Hz,147m/s²,三向各4h瞬断＜1us |
| Shock | 980m/s²,6ms,半正弦波,6次瞬断＜1us |
| Salt Spray | (35±2)°C,5%NaCl,96h |
| Waterproof Level | IP68,浸入水下1.5m,喷置30min后绝缘电阻＞50MΩ |
| Insulation Resistance | 25°C,＞5000MΩ |

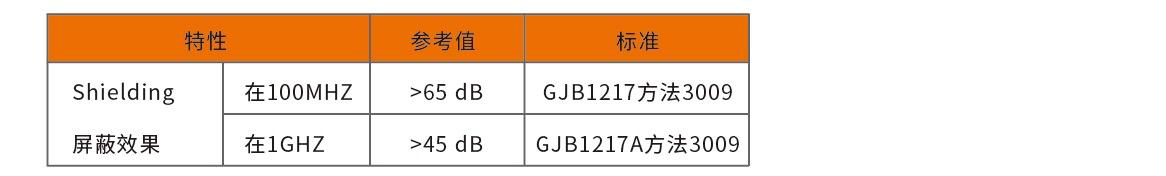

| Shielding Effectiveness 100MHz | ＞65dB |
| Shielding Effectiveness 1GHz | ＞45dB |

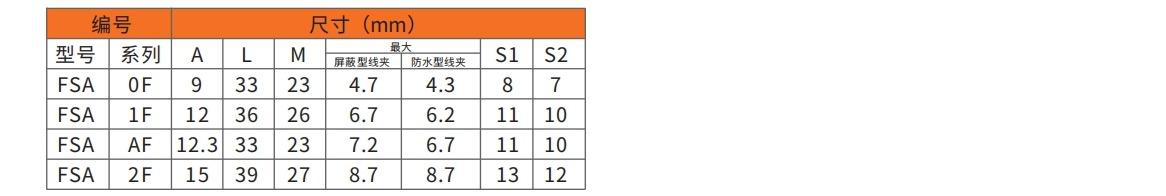

| Model 0F Size A | 9 |
| Model 0F Size L | 33 |
| Model 0F Size M | 23 |
| Model 0F Max Shielded Clamp | 4.7 |
| Model 0F Max Waterproof Clamp | 4.3 |
| Model 0F Size S1 | 8 |
| Model 0F Size S2 | 7 |
| Model 1F Size A | 12 |
| Model 1F Size L | 36 |
| Model 1F Size M | 26 |
| Model 1F Max Shielded Clamp | 6.7 |
| Model 1F Max Waterproof Clamp | 6.2 |
| Model 1F Size S1 | 11 |
| Model 1F Size S2 | 10 |
| Model AF Size A | 12.3 |
| Model AF Size L | 33 |
| Model AF Size M | 23 |
| Model AF Max Shielded Clamp | 7.2 |
| Model AF Max Waterproof Clamp | 6.7 |
| Model AF Size S1 | 11 |
| Model AF Size S2 | 10 |
| Model 2F Size A | 15 |
| Model 2F Size L | 39 |
| Model 2F Size M | 27 |
| Model 2F Max Shielded Clamp | 8.7 |
| Model 2F Max Waterproof Clamp | 8.7 |
| Model 2F Size S1 | 13 |
| Model 2F Size S2 | 12 |
